TD 92679GB
12 April 2011 Ver. D
Installation Guide
Elise3
1

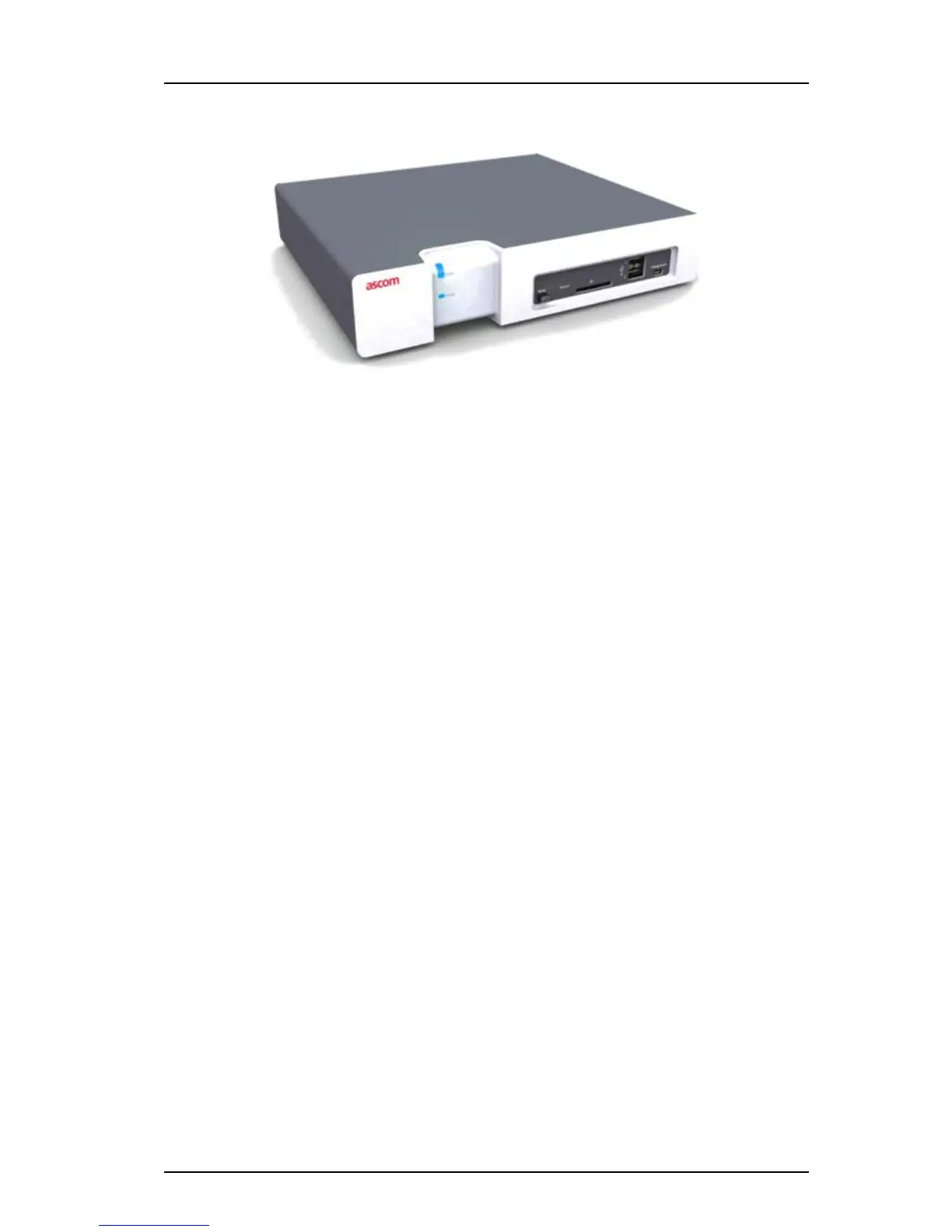

1 Introduction
The Elise3 module is the hardware platform for Linux based applications such as
messaging, alarm handling, administration and device management. The module can be
used independently but also works in combination with other modules or systems.
Elise3 comes in different variants; Elise3 Lite, Elise3 Standard, Elise3 LON/ISC and Elise3
LON/NSS.
The Elise3 Lite is intended for connections via IP only. It has two LAN connections, two USB
2.0 ports for communication with external devices, one mini-USB port for easy
management and is equipped with two galvanically isolated physical inputs and outputs.
The inputs can be used for trigger conditions which in turn can use the outputs for actions.
The Elise3 Standard has the same functionality as the Lite variant, but supports A-bus
connection to Ascom paging system and RS-232 communication with external systems.
The Elise3 LON variants has the same features as the Standard variant but is equipped with
a LON piggyback for connection to teleCARE local operating network (LON) and intended
for EU/EFTA only. The Elise3 LON/ISC has a LON interface for teleCARE M and Elise3 LON/
NSS for the Nurse Station Server application.
The license and supported features are application dependent and therefore described in
the application documentation.
Supply voltage: 100 – 240 V AC ±20%
12 – 24 V DC -25% / +20%
Current consumption: Max 275 mA at 100 V AC input
Max 1 A at 12 V DC input
Delivery includes: Elise3 hardware
a
The Getting started and Safety document:
“Elise3 – EMBEDDED LINUX SERVER INCLUDING SAFETY INSTRUCTIONS
Two assembly brackets
Four screws size 3.5×40 together with four wall plugs
Four MFT screws size M3×6 for fastening the assembly brackets
Power cable
a. Separately ordered license certificate
Tools etc. required: Philips screwdriver (Ph No. 2) for the wall screws size 3.5×40
Torx (T10) for the MFT screws size M3×6
Screwdriver 0.40 x 2.5 mm for screw connectors on the rear side
Ethernet cable
System Bus Cabling
Power supply
PC with Microsoft Internet Explorer 8.0™ or later
