NOTE!
The power cord connection is located at the front of the appliance. At least 900 mm length of the
power cord is required to lead it to the socket designated location behind the appliance.
Determining the existing electrical connection
NOTE!
Check the voltage. Before connecting the appliance, make sure the voltage specified on the
rating plate conforms to the voltage of your power mains. The voltage of your power mains
(220–240 V between L and N) should be checked by an expert using an appropriate measuring
device.

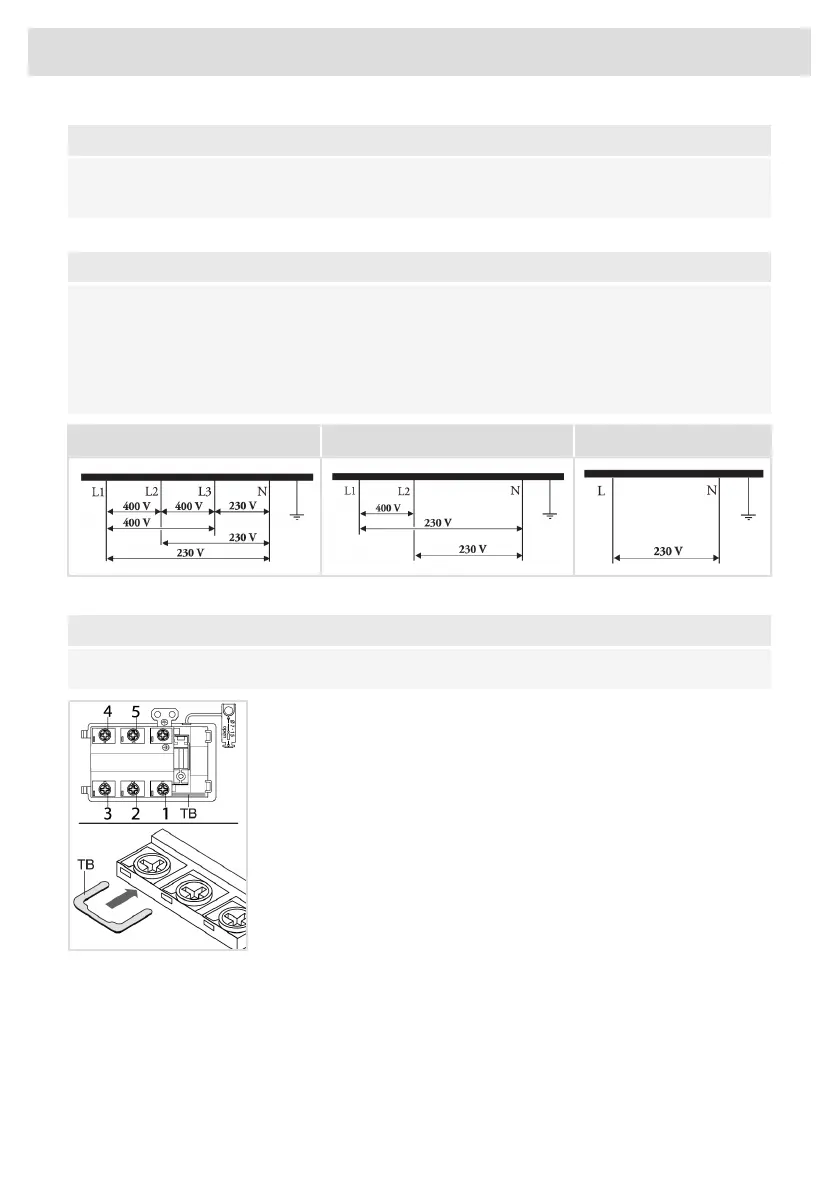

Check the voltages present as indicated in the diagrams below.
1 phase - 1 neutral2 phases - 1 neutral3 phases - 1 neutral
Connection diagram
NOTE!
Consult the wiring diagrams on the front of the appliance.
1. Open the cover of the connection terminal box.
2. Run the power cord through a cord strain relief (clamp) which
protects the cable from being pulled out.
3. Connect the wires according to your type of appliance.
4. Make the necessary connections between the terminals using the
supplied terminal bridges. The terminal bridges are located in the
connection box.
Current limiter
See chapter 'Settings', under parameter Con - Current limiter to set the parameter. This parameter
must be set before any pan is placed on the hob or cooking zone activated.
