WARNING!
Current limiter setting must be set according to your connection and circuit breakers by a
registered and qualified installer. Please read the safety regulations and the installation instructions
carefully.
NOTE!
Setting a lower value of the Current limiter parameter will cause a reduced performance of the
induction hob.
See the connection diagrams for the voltage between the phase and neutral conductors and voltage
between the phase conductors.
Power cord core cross sectional area should be at least 1,5 mm² for the following current limiter
settings which should be adjusted to your circuit breakers:
Number and cross section
of Power cord wires
Power cord TypeConnection typeCurrent limiter
settings
5 x 1.5 mm²H05V2V2-F3 phases - 1 neutral3x16 A / 3x13 A /
3x10 A / 3x06 A
4 x 1.5 mm²H05V2V2-F2 phases - 1 neutral2x16 A / 2x13 A /
2x10 A / 2x06 A
4 x 4.0 mm²H05V2V2-F2 phases - 1 neutral2 x 32 A
3 x 6.0 mm²H05V2V2-F1 phase - 1 neutral1x48 A / 1x35 A
3 x 4.0 mm²H05V2V2-F1 phase - 1 neutral1x32 A / 1x25 A
3 x 2.5 mm²H05V2V2-F1 phase - 1 neutral1x20 A
3 x 1.5 mm²H05V2V2-F1 phase - 1 neutral1x16 A
Connecting an ‘open window’ sensor
The use of sensor type ‘FDS 100’ is recommended if a window sensor must be installed. The sensor
must be of the potential-free NO (normally open) contact type. It must be connected to the designated
port on the motor control unit (MCU) in the enclosure at the front of the appliance. A cord of type
H05VV-F 2x0,5 mm
2
(or similar) is recommended for connecting a window sensor. Without a window
sensor, a jumper closes the electrical circuit.

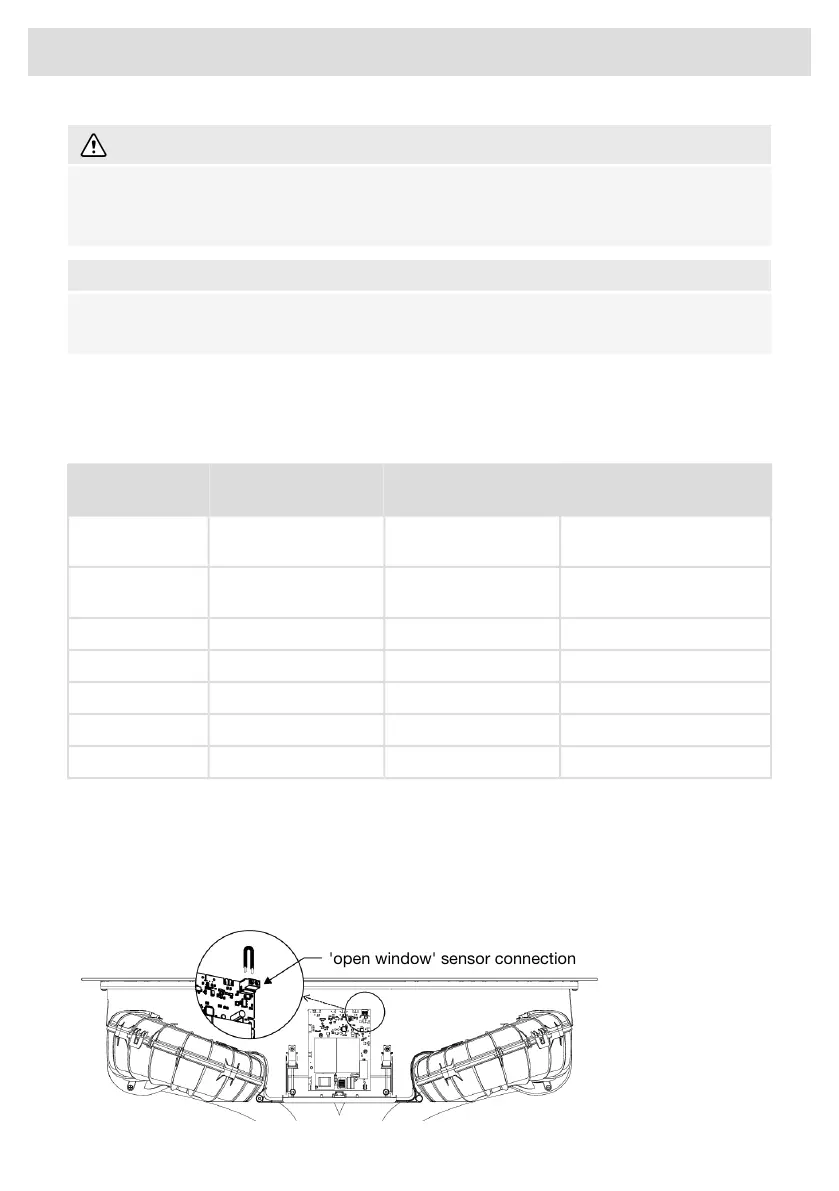

'open window' sensor connection
64
Installation
