Connecting up
As a specialist, you alone are competent to install
and connect up ASKO appliances. Our guarantee
therefore applies only and exclusively to
appliances which have been installed and
connected up by you in accordance with the
provisions of current regulations.
Failure to meet this requirement would incur the
fitter's liability and release the ASKO company
from any liability.
The appliance must be fitted correctly to
guarantee electrical safety. During fitting and
maintenance operations, the appliance must be
unplugged from the electrical grid.
Fuses must be switched off or removed.
The electrical connections are made before the
appliance is installed in its housing. Ensure that:
•
the electrical installation has sufficient voltage,
•
the electrical wires are in good condition,
•
the diameter of the wires complies with the
installation requirements.
Your oven must be connected with a (standard)
power cable with 3 conductors of 1.5mm2 (1 live
+ 1 neutral + earth) whichmust be connected to
a 220-240V
~
single-phase grid by means of a 1
live + 1 neutral + earth CEI 60083 standard power
socket or via an all-poles cut-off device in
compliance with the installation rules.
Warning
The safety wire (green-yellow) is connected to
the appliance’s
The safety wire (green-yellow) is connected
connected
to
the
earth
terminal
of
the
terminal and must be
connected to the earth terminal of the electrical
set-up.
You must enable the appliance to be
disconnected from the supply network after
installation.
Disconnection can be enabled by ensuring that
there is an accessible power plug or by
incorporating a switch into the fixed wiring in
compliance with the installation rules.
The fuse in your set-up must be 16 amperes.
If the power cable is damaged, it should be
replaced by the manufacturer, its after-sales
service department or a similarly qualified person
to avoid danger.We cannot be held responsible
for any accident resulting from inexistent,
defective or incorrect earthing.
If the electrical installation in your residence
requires any changes in order to hook up your
appliance, contact a professional electrician.
If the oven malfunctions in any way, unplug the
appliance or remove the fuse
corresponding to the sector where the oven is
hooked up.

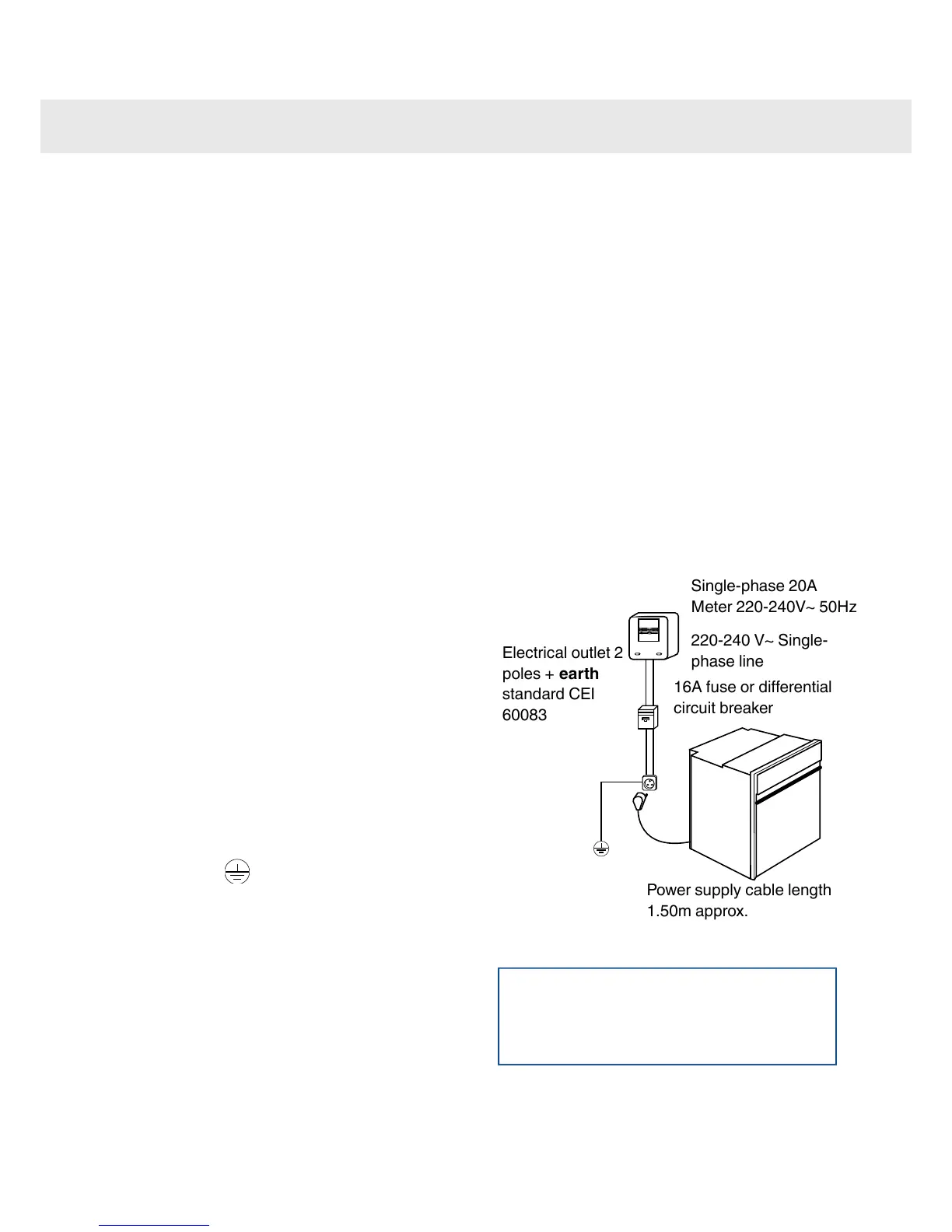

Single-phase 20A Meter
Single-phase line
Electrical outlet 2 poles + ear standard CEI 60083
Electrical outlet 2
poles + earth
standard CEI
60083
Single-phase 20A
Meter 220-240V~ 50Hz
220-240 V~ Single-
phase line
16A fuse or differential
circuit breaker
Power supply cable length
1.50m approx.
Housing
NB
The oven may be housed either under a work
surface or built into a column that is open* or
closed with a suitable opening.
Your oven works at its best and produces
excellent results when cooking and cleaning itself,
if its air circulation is not compromised:
