Chapter 4: Motherboard Information

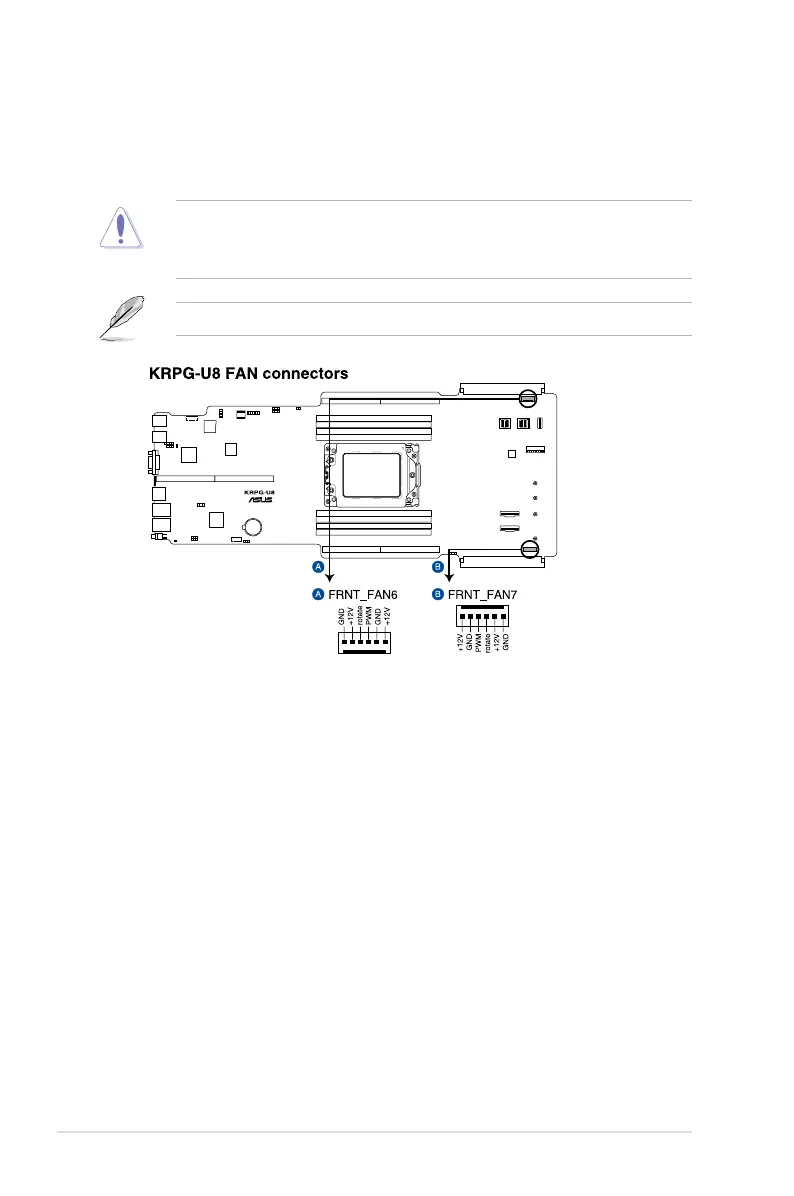

5. Front fan connectors
(6-pin FRNT_FAN6-7)
The fan connectors support cooling fans of 3.30 A – 3.95 A (47.4 W max.) Connect the
fan cables to the fan connectors on the motherboard, ensuring that the black wire of
each cable matches the ground pin of the connector.
• DO NOT forget to connect the fan cables to the fan connectors. Insufcient air ow
inside the system may damage the motherboard components.
• These are not jumpers! DO NOT place jumper caps on the fan connectors!
All fans feature the ASUS Smart Fan technology.
