2-15
ASUS RS100-E9-PI2

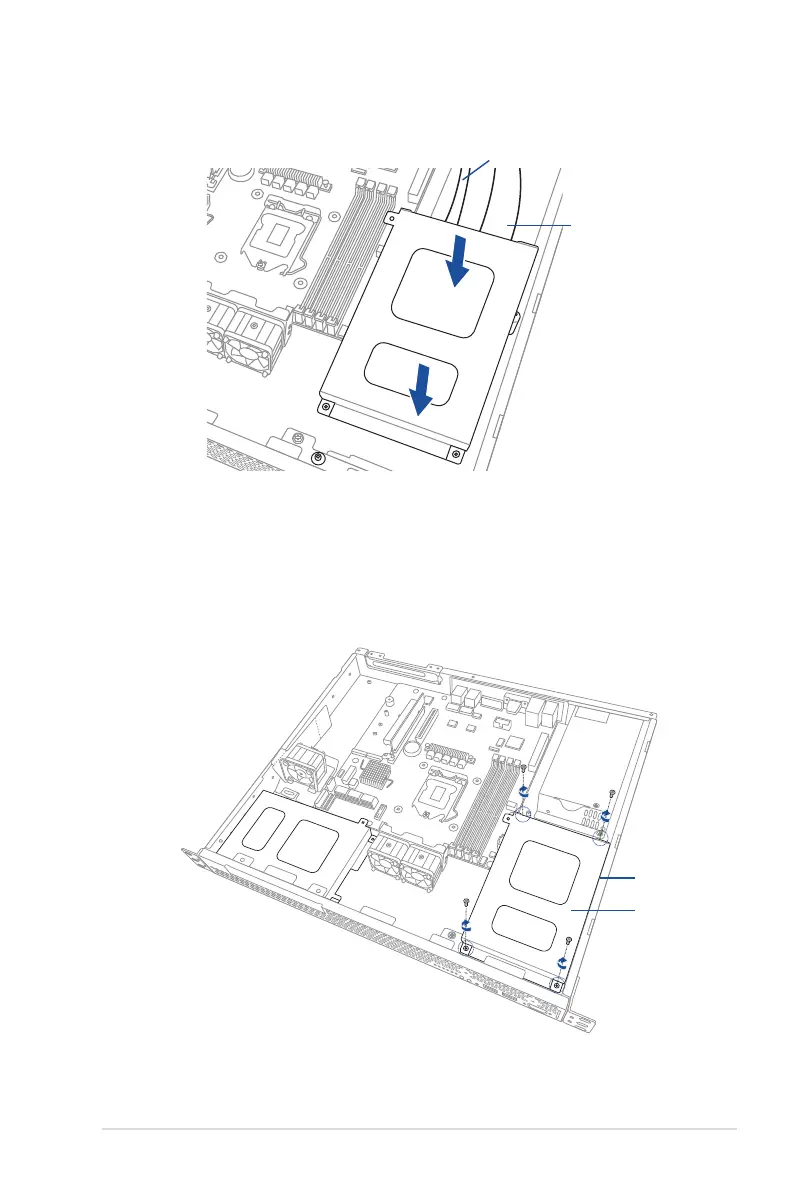

7. PlaceandorienttheHDDdrivetrayand3.5-inchSATAHDDassemblyasshown.
8. Securethe3.5-inchSATAHDDandHDDdrivetrayassemblytotheHDDbay1using
the screws removed in step 2.
Ensure that the HDD drive tray is seated securely in place.
SATA power cable
SATA signal cable
HDD drive tray
HDD bay 1
