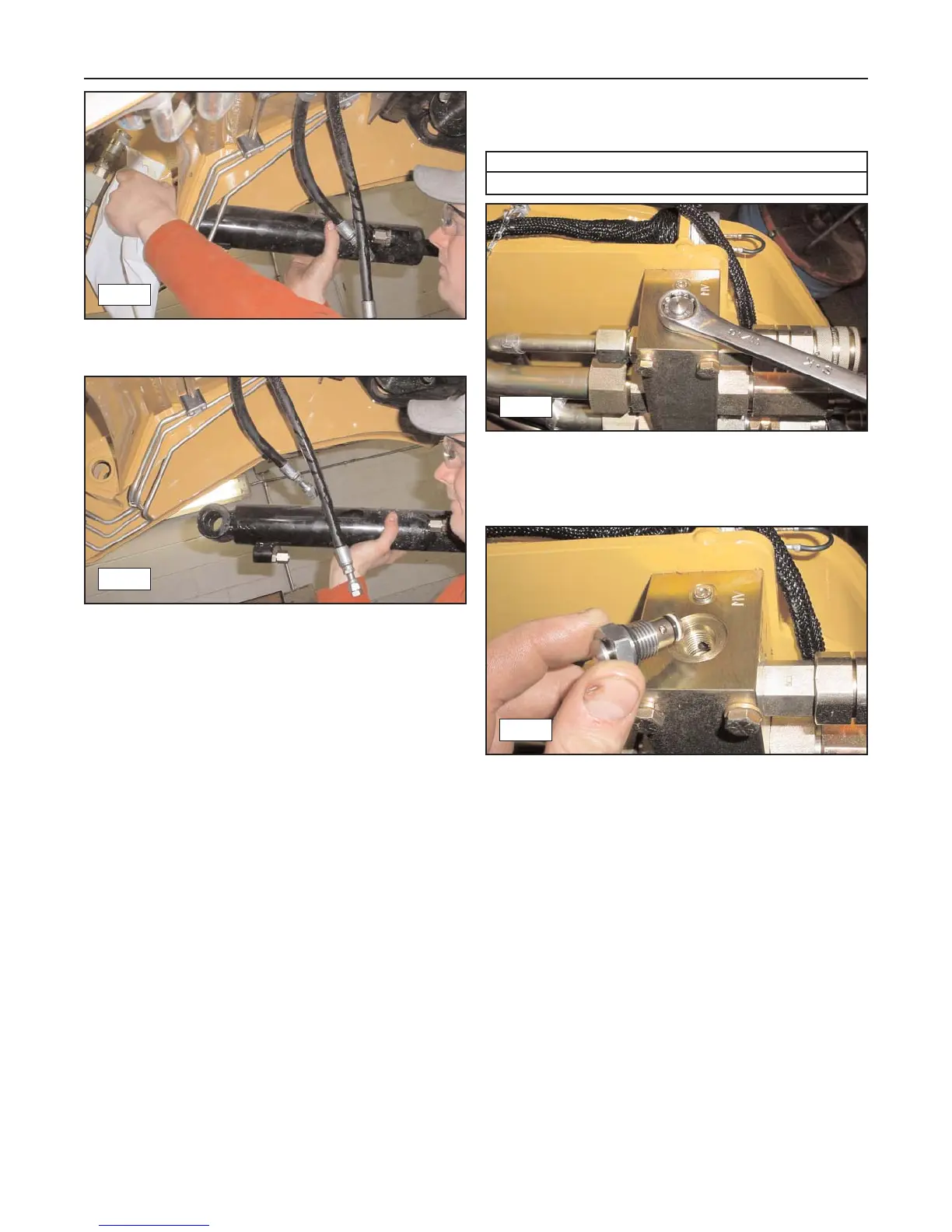

10. Remove the pin from the cylinder while supporting
the cylinder. (fig. 14-16)
11. Remove the cylinder from the machine. (fig. 14-17)
Installation
1. To install a bucket/tilt cylinder, reverse the removal
procedure.
Quick Coupler Block PRV
Removal
1. With the machine off and cool and with all
hydraulic actuators relaxed, loosen the pressure
release valve on the top of the auxiliary quick cou-
pler block. (fig. 14-18)
2. Once loose, remove the valve from the block by
twisting it counter-clock-wise until free. (fig. 14-19)
Installation
1. To install the Q/C PRV, reverse the removal proce-
dure.
14-5
Rubber Track Loader
14. Lift-Arm Components
14-16
14-17
14-18
Required Tools
Combination Wrench
14-19
