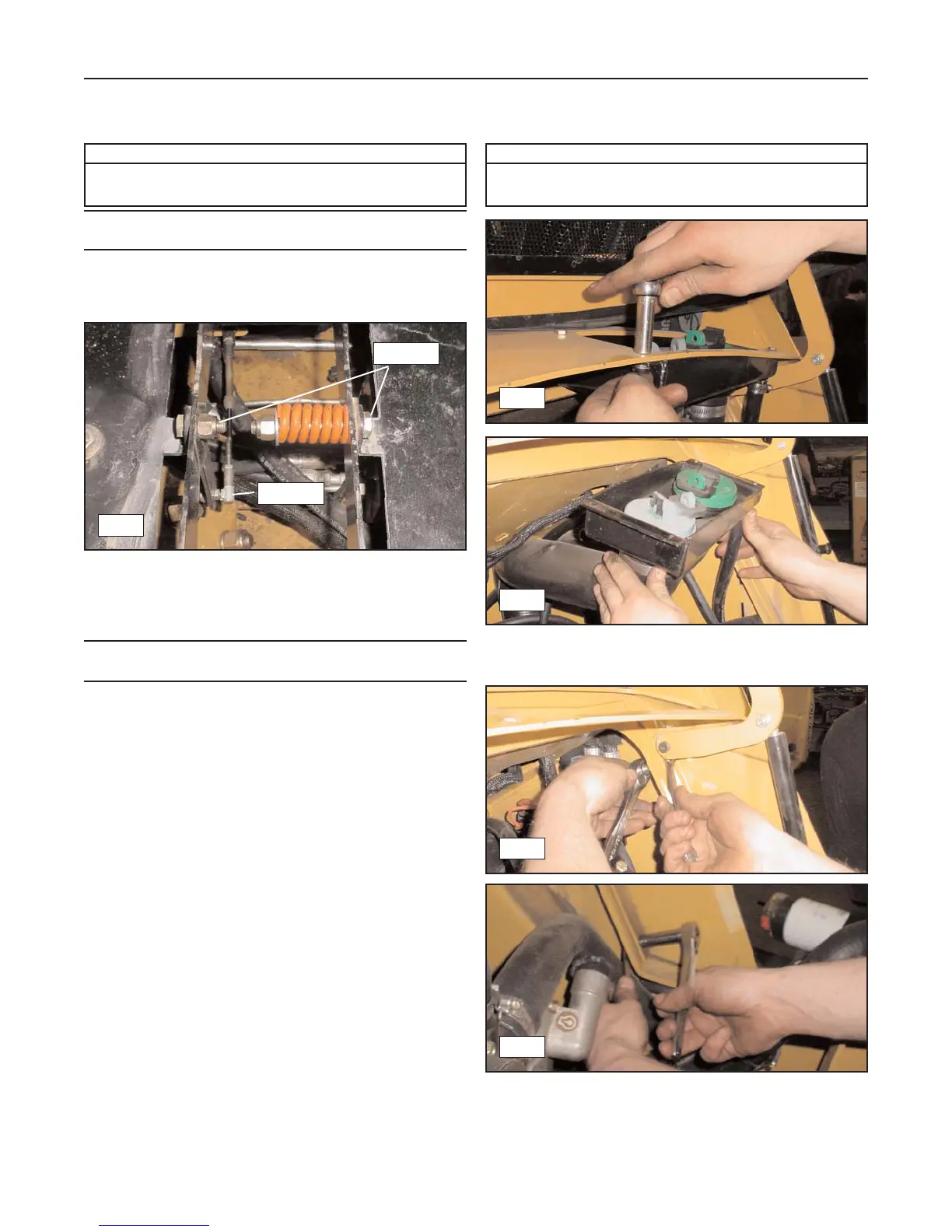

Foot Throttle Assembly
Removal
Note: The foot throttle assembly may be removed with
the footwell still installed in the machine.
1. Perform steps 3 and 4 of the footwell removal pro-
cedure on page 7-4.
2. Remove the bolts (2) and associated hardware
securing the foot throttle assembly to the footwell.
(fig. 7-18)
Note: Record the order of assembly during removal to
ensure proper operation when re-installed.
3. Remove the foot throttle from the machine.
Installation
1. To install the foot throttle assembly, reverse the
removal procedure.
Hood Assembly
Removal
1. Remove the bolts (4) securing the fluid filler tray
and hoses to the hood assembly. (fig. 7-19, 7-20)
2. Remove the bolts (6) that secure the hood to the
chassis. (fig 7-21, 7-22)
7-5
Rubber Track Loader
7. Chassis & Fuel Tank
Screwdriver
Combination/Socket Wrench
Required Tools
7-18
Pry Off
Bolts
Screwdriver
Combination/Socket Wrench
Required Tools
7-19
7-20
7-21
7-22
