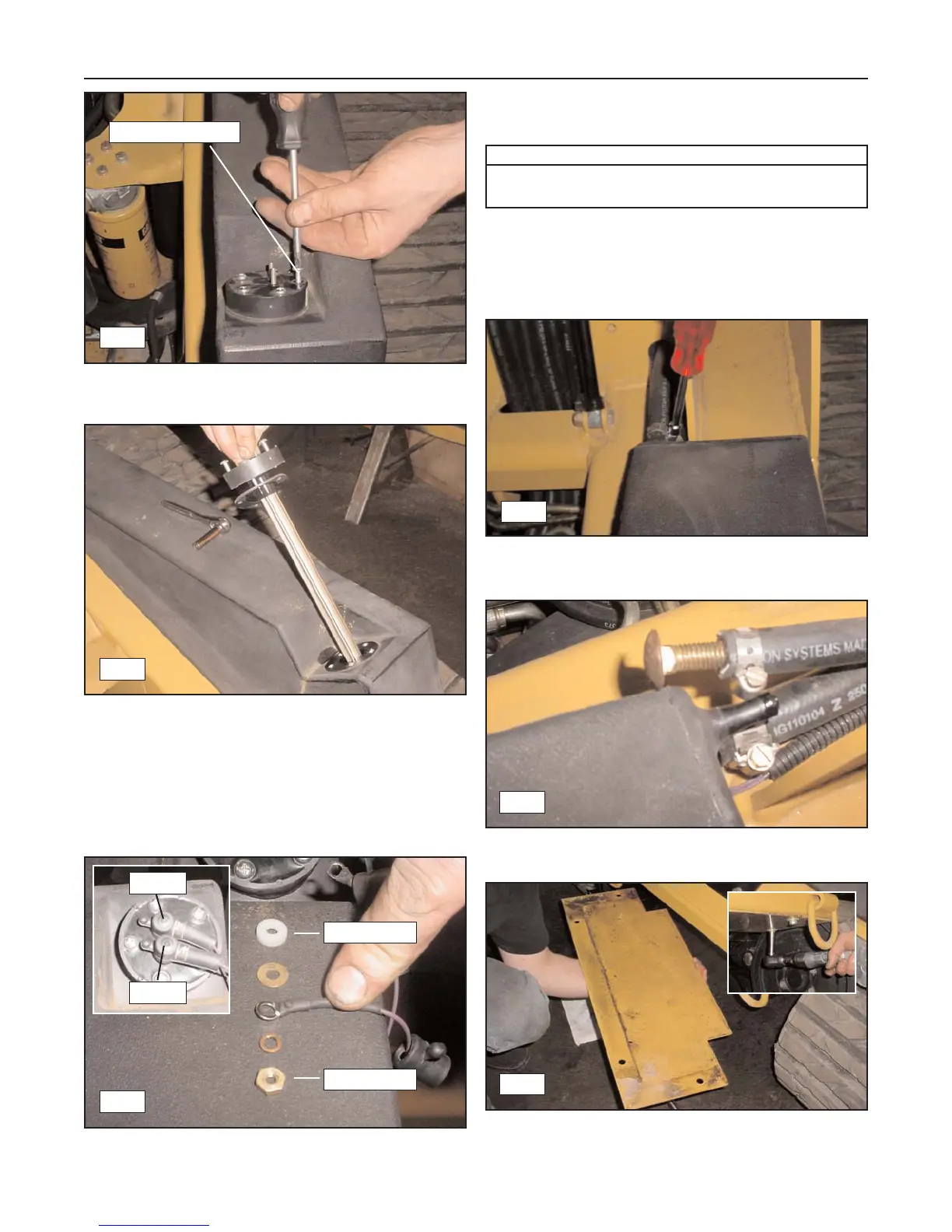

5. Remove the screws securing the fuel sending unit
to the tank. (fig. 7-2)
6. Remove the sending unit by pulling it through the
opening in the fuel tank. (fig. 7-3)
Installation
1. To install the fuel sending unit, reverse the removal
procedure. (See fig. 7-4 for terminal installation)
Fuel Tank
Removal
1. Raise and support the lift arms as described on
page 4-1 of this manual.
2. Tilt and support the operator enclosure (cab) as
described on page 4-2 of this manual. (optional)
3. Loosen the hose clamps securing the vent hoses
to the left rear tank end. (fig. 7-5)
4. Disconnect and plug the hoses. (fig. 7-6)
5. Remove the bolts securing the forward belly pan
and remove it from the machine. (fig. 7-7)
7-2
Rubber Track Loader
7. Chassis and Fuel Tank
7-2
Remove Screws
7-3
7-4
7-5
7-6
7-7
Install First
Install Last
-- Neg
+ Pos
Screwdriver
Combination/Socket Wrench
Required Tools
