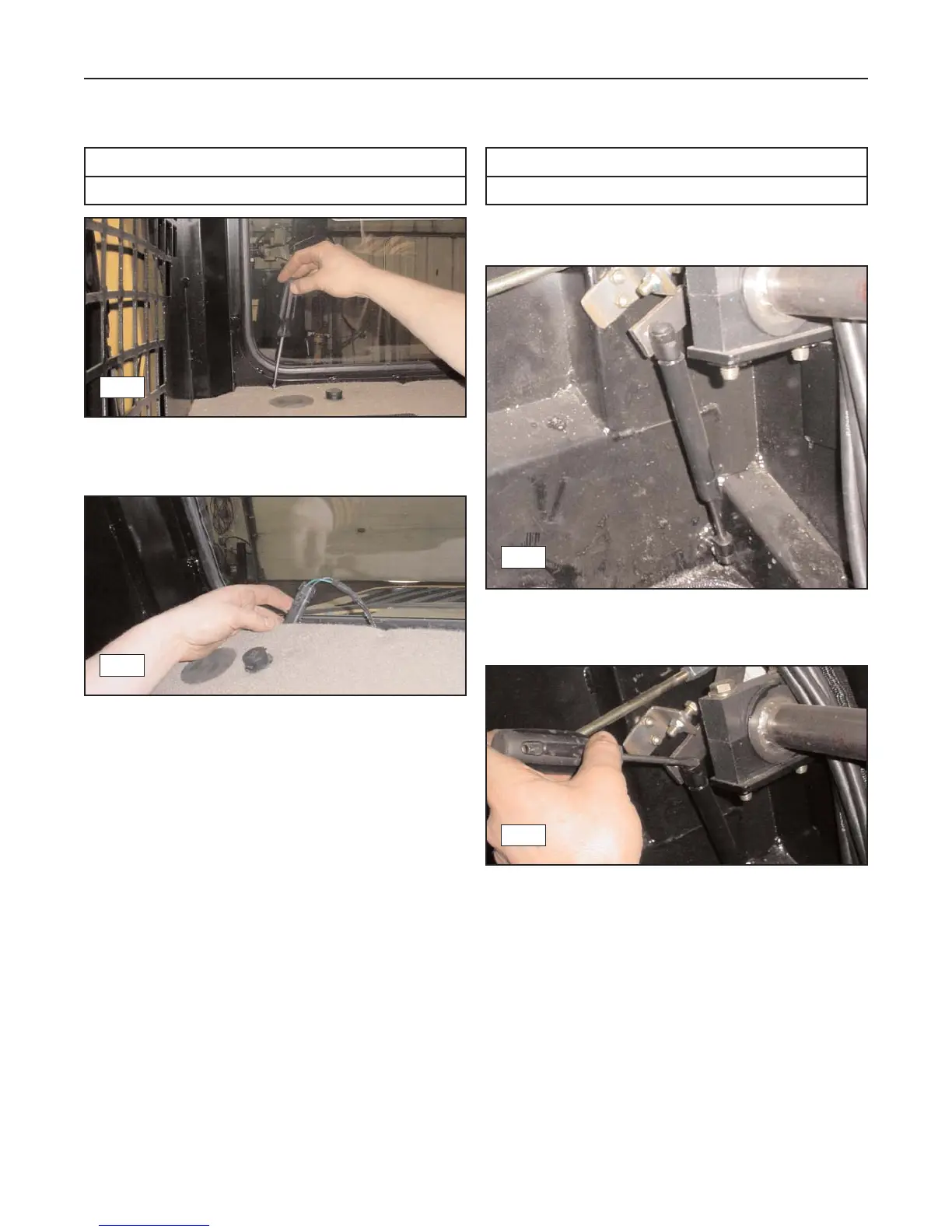

Rear Interior Panel (MP-1 & 2)
Removal
1. Remove the screws holding the rear panel to the
cab. (fig. 6-32)
2. Disconnect the rear power point from the harness,
then remove the panel from the cab. (fig. 6-33)
Installation
1. To re-install the rear interior panel, reverse the
removal procedure.
Lap Bar Gas Spring (MP-2)
Removal
1. Remove the right, left and rear interior panels from
the cab to access the gas spring.
2. Put the lap bar in the raised position to relieve ten-
sion on the lap bar gas spring. (fig. 6-34)
3. Using a small screwdriver, remove the retaining
clip from each end of the gas spring. (fig. 6-35)
4. Remove the gas spring by pulling both ends off of
the ball joints.
Installation
1. Reverse the removal procedure to reinstall the lap
bar gas spring.
6-7
Rubber Track Loader
6. Operator Enclosure
Required Tools
Phillips Type Screwdriver
6-32
6-33
6-34
Required Tools
Phillips & Blade Type Screwdrivers
6-35
