Drive Motor
Removal
1. Remove the track from the undercarriage by per-
forming the track removal procedure on page 4-6
of this manual.

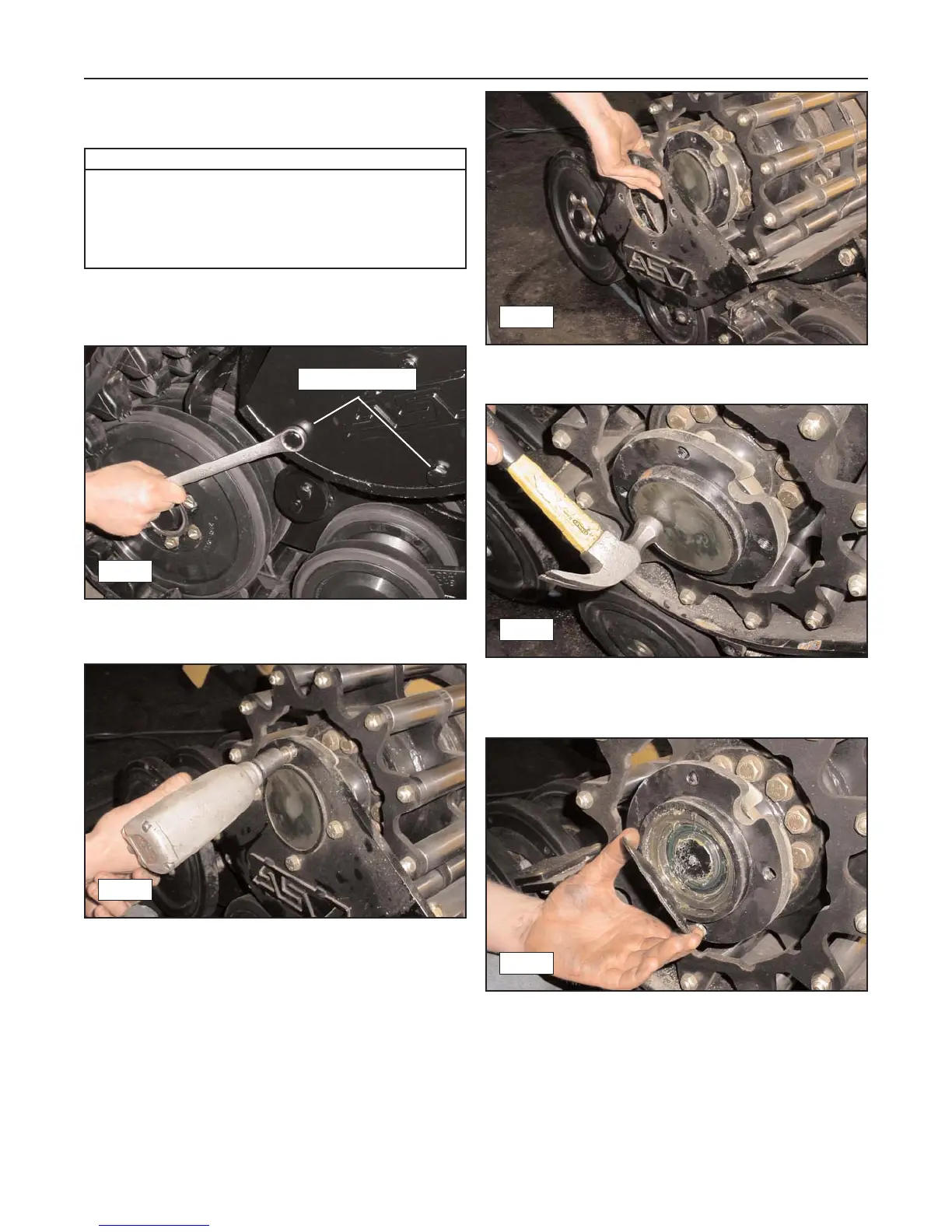

2. Remove the three bolts securing the outer bearing
support plate to the drive table. (fig. 11-19)
3. Remove the four bolts securing the outer bearing
support plate to the bearing assembly. (fig. 11-20)
4. Remove the bearing support plate from the under-
carriage. (fig. 11-21)
5. Use a hammer to tap around the circumference of
the bearing cap which releases the outward pres-
sure holding it in place. (fig. 11-22)
6. Remove the bearing cap from the assembly. (fig.
11-23)
Rubber Track Loader
11. Hydraulic Pumps/Motors
11-6
Required Tools
Combination/Socket Wrench
Impact Wrench
3-Jaw Puller
Snap Ring Pliers
Hammer/Mallet
11-19
Remove Bolts
11-20
11-21
11-22
11-23
