Footwell
Removal
1. Raise and support the lift arms as described on
page 4-1 of this manual. (optional)
2. Tilt and support the operator enclosure (cab) as
described on page 4-2 of this manual.

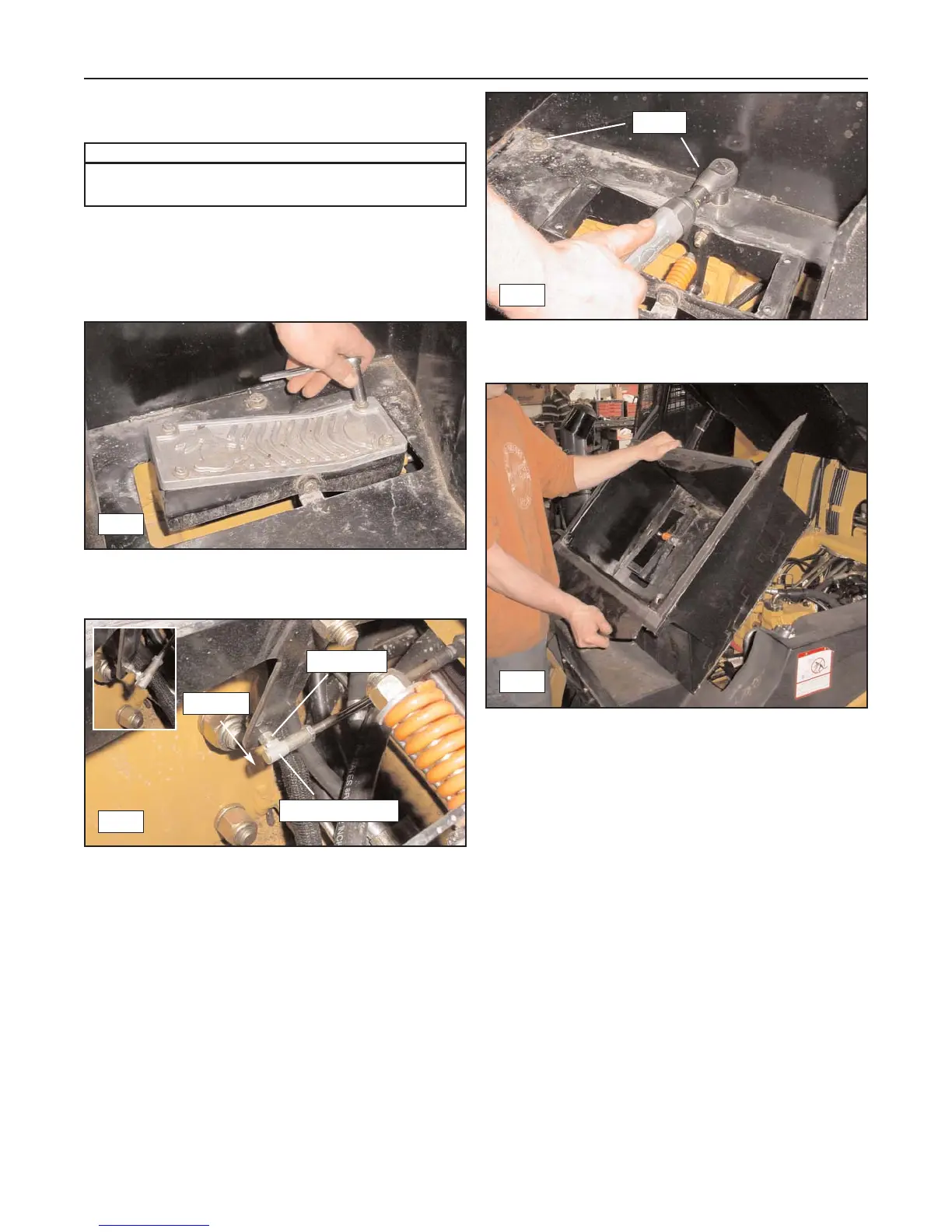

3. Remove the bolts (4) securing the foot pedal cover
to the pedal, then remove the cover. (fig. 7-14)
4. Pry the throttle cable off of the ball stud on the foot
pedal. (fig. 7-15)
5. Remove the bolts (4) securing the footwell assem-
bly to the chassis. (fig. 7-16)
6. Remove the footwell from the chassis as shown.
(fig. 7-17)
Installation
1. To install the footwell, reverse the removal proce-
dure.
7-4
Rubber Track Loader
7. Chassis & Fuel Tank
7-14
Screwdriver
Combination/Socket Wrench
Required Tools
7-15
Pry Off
Throttle Cable
Ball Stud
7-16
7-17
Bolts
