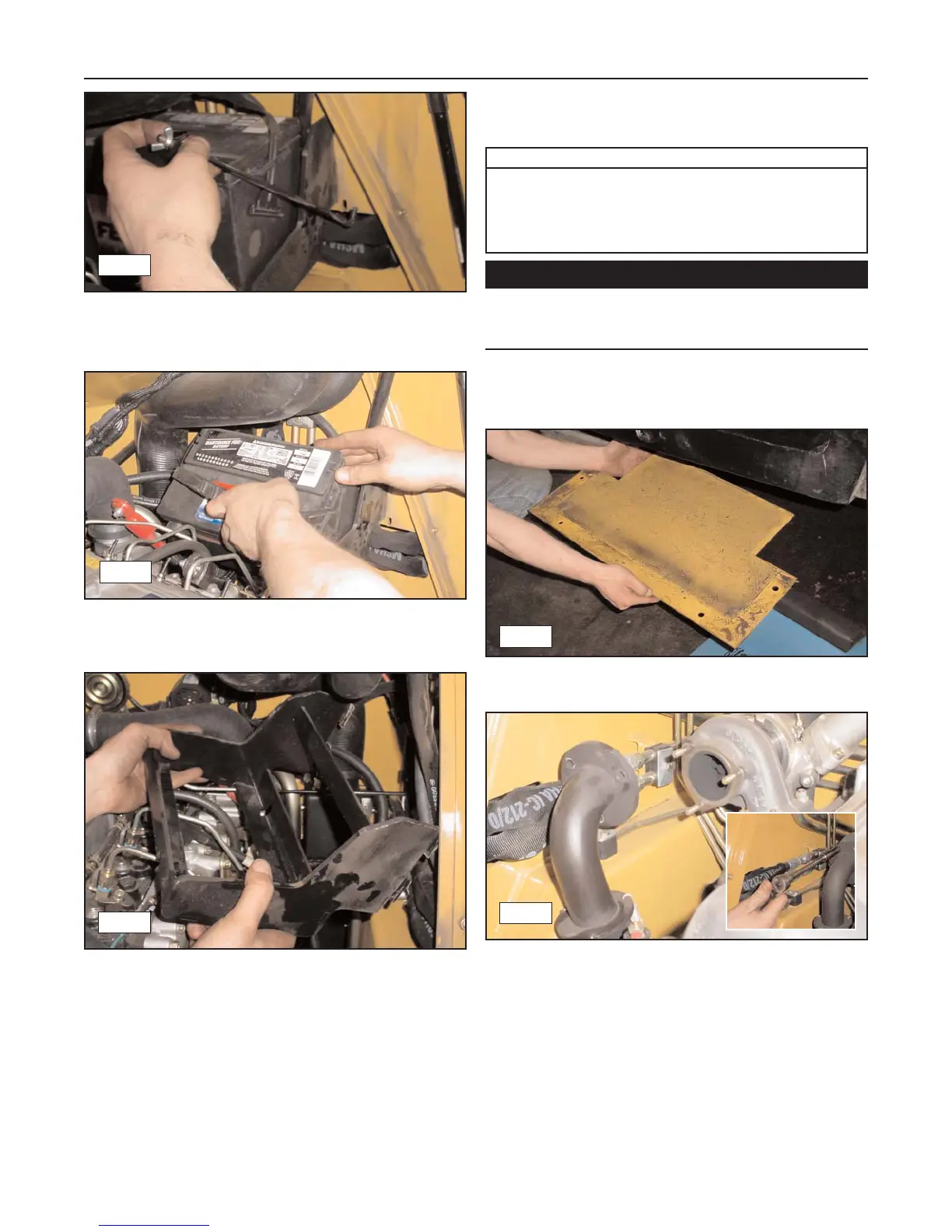

4. Remove the two tension (L) rods by twisting and
maneuvering them out of the chassis mounting
holes. (fig. 12-3)
5. Lift and remove the battery from the battery tray.
(fig. 12-4)
6. If necessary, remove the battery tray by sliding it
upwards and then pulling it away from the chassis.
(fig. 12-5)
Installation
1. To install the battery, reverse the removal proce-
dure.
Exhaust System
Removal
The exhaust system is very hot at operating tem-
perature. Make sure the machine is off and cool
before attempting to service the exhaust system.
1. Perform the radiator/oil cooler removal procedure
on page 8-3 to provide access to the exhaust sys-
tem components.
2. Remove the bolts securing the rear belly pan and
remove it from the machine. (fig. 12-6)
3. Remove the nuts securing the head-pipe to the
turbo, then pull it away from the studs. (fig. 12-7)
12-2
Rubber Track Loader
12. Engine
12-4
12-5
12-6
12-7
12-3
Required Tools
Pry Bar(s)
Combination/Socket Wrench
Rubber Mallot
Penetrating Lubricant
