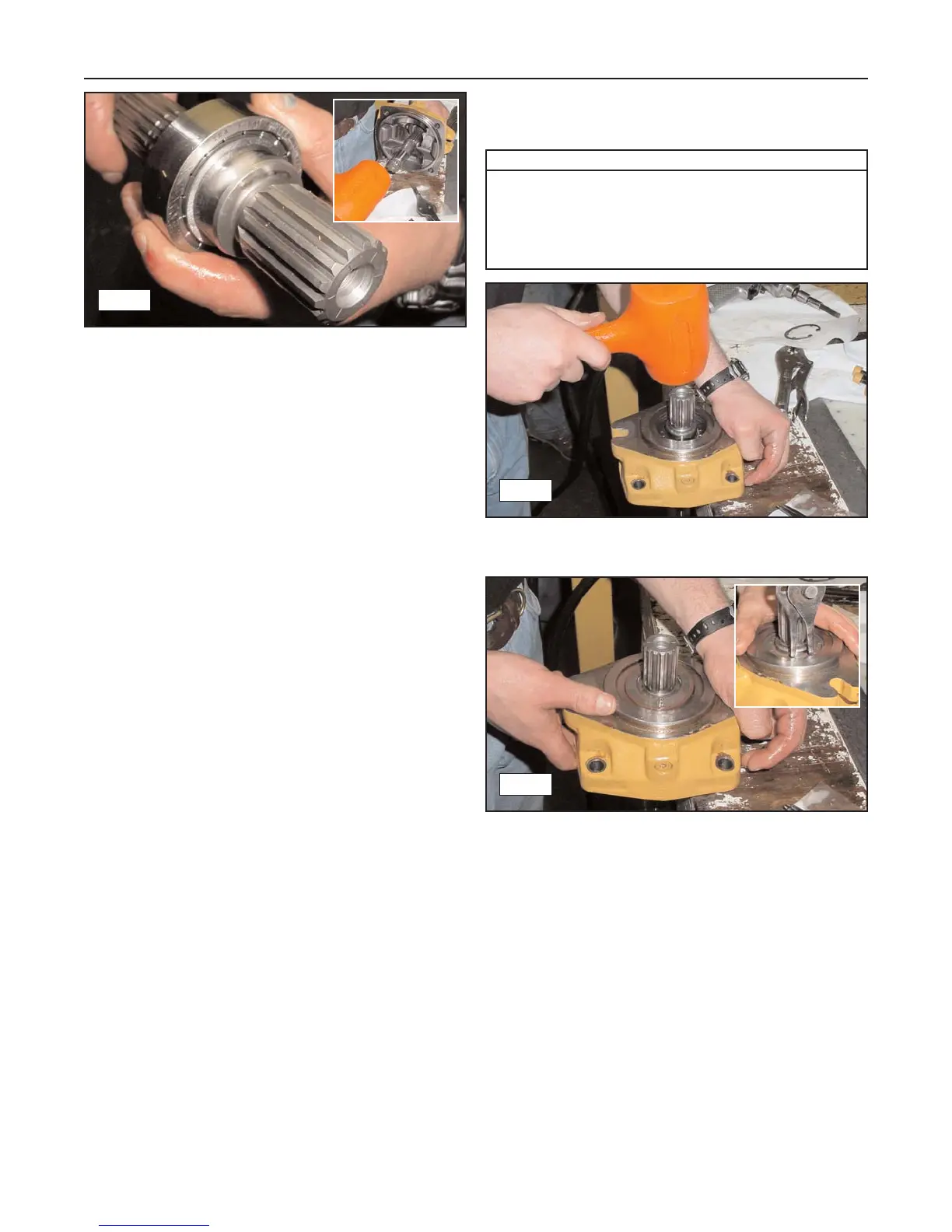

7. Using a rubber mallot, gently tap the shaft and
bearing out of the casing for inspection or replace-
ment. (fig. 16-55)
Drive Pump
Assembly
1. Using a rubber mallot, gently tap the shaft and
bearing into the casing until seated. (fig. 16-56)
2. Replace the seal with a new one and install taking
care not to damage it upon installation. (fig. 16-57)
3. Install the snap ring that secures the shaft, bear-
ing, and seal in place. (fig. 16-57)
16-12
Rubber Track Loader
16. Hydraulic Component Service
16-55
16-56
Required Tools
Combination/Socket wrench
Allen Wrench/Socket
Rubber Mallot
Screwdriver (blade type)
Snap RIng Pliers
16-57
