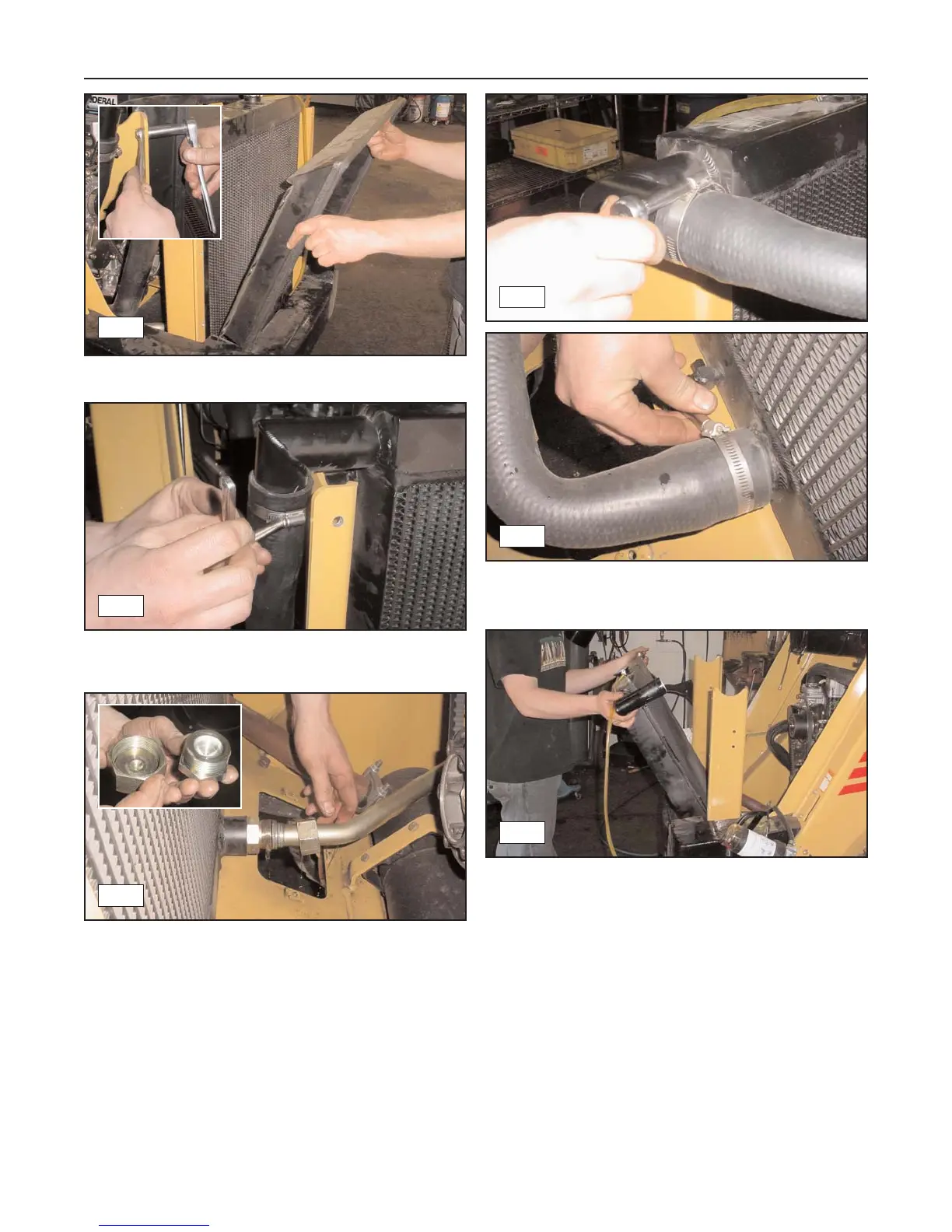

4. Remove the bolts (6) securing the outer shroud to
the chassis, then remove the shroud. (fig. 8-13)
5. Remove the upper hydraulic cooler hose. Cap or
plug the hose upon removal. (fig. 8-14)
6. Loosen and disconnect the lower hydraulic line
from the cooler. Cap and plug the line and cooler
opening upon disassembly. (fig. 8-15)
7. Loosen the clamps securing the upper and lower
coolant hoses to the radiator, then disconnect the
hoses from the radiator. (fig. 8-16, 8-17)
8. Tilt the radiator rearward and then remove it from
the machine. (fig. 8-18)
Installation
1. To install the radiator/oil cooler, reverse the
removal procedure.
8-4
Rubber Track Loader
8. Radiator and Oil Cooler
8-13
8-14
8-15
8-16
8-17
8-18
