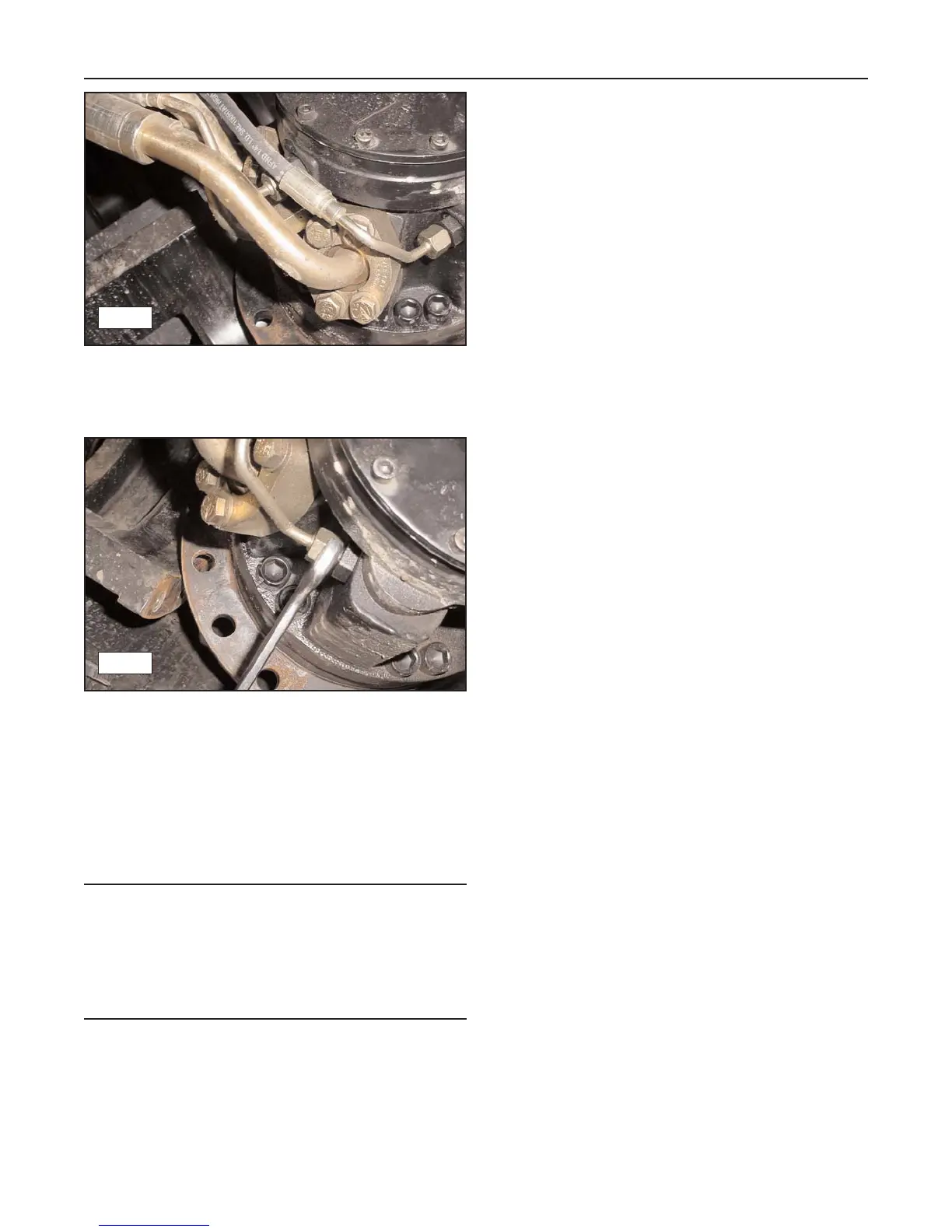

13. Note the orientation of the hoses as they are con-
nected to the drive motor. Label them to ensure
correct installation and proper orientation during
reassembly. (fig. 11-30)
14. Disconnect the hoses from the drive motor making
sure to cap and plug all openings to avoid contam-
ination. Remove the drive motor from the under-
carriage. (fig. 11-31)
Installation
1. To install the drive motor into the undercarriage,
reverse the removal procedure.
Note: During the removal of the bearing cap, the
bulged or domed area is beaten inward. When rein-
stalling the cap, flip it around so that the domed area is
toward the outside of the machine. Then tap the center
of the cap with a ball peen hammer or similar device to
reset the cap. Do this gently, too much force can dam-
age (mushroom) the bearing shaft.
