7 MAINTENANCE
108

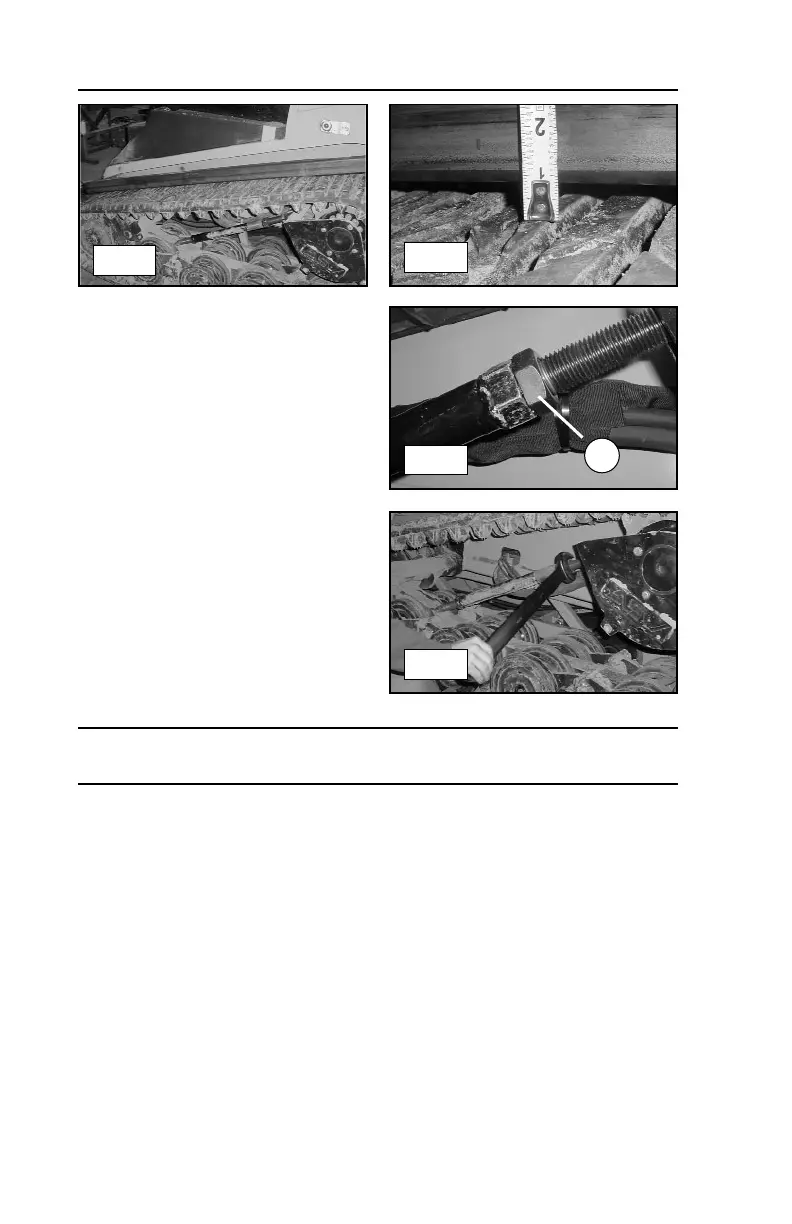

7.14 Track Tension Adjustment
1. Shut the machine down as
described in section 5.13, locate
jam nut on track tension device
and clean the threads thoroughly
before proceeding. (fig. 7.14-1).
2. Using a wrench, loosen the jam
nut (item 1) on the track tension
device. (fig. 7.14-1)
3. Once the jam nut is loose,
turn the tensioner until the
track tension is within
specification (figure 7.14-2).
4. Turn the tensioner the opposite
direction to loosen the track.
5. Once proper tension is achieved,
retighten the jam nut on the tensioner.
Note: If the track tensioner is stiff, it may be helpful to apply a penetrating lubri-
cant onto the threads prior to adjusting tension.
7.13-1
7.13-2
7.14-1
7.14-2
1
RT-75 / RT-75HD US O&M
0405-073 2020-07
