4 MACHINE DESCRIPTION / CONTROLS
37
RT-75 / RT-75HD US O&M
0405-073 2020-07
4.1 Display Elements / Switches
7
9 10
The RT-75 / RT-75HD is equipped with self-diagnostic features common to modern
diesel engines. Should an alarm message be displayed (or other critical warning
indicator illuminate) on the operator interface during normal operation, shut the
machine down immediately (in a safe location).
Consult your dealer to access and interpret diagnostic codes and recommend serv-
ice (if needed). Complete necessary repairs before resuming operation.
See also “Active Faults” accessed through the main, diagnostics and fault menus
found on pages 61, 64 and 69-71 of this manual for further information.
The engine may automatically derate if necessary, but as a precaution, always shut
the machine down if any critical alarm messages or warnings appear during opera-
tion to prevent damage.
NOTICE
Learn the location and function
of these items prior to operation.

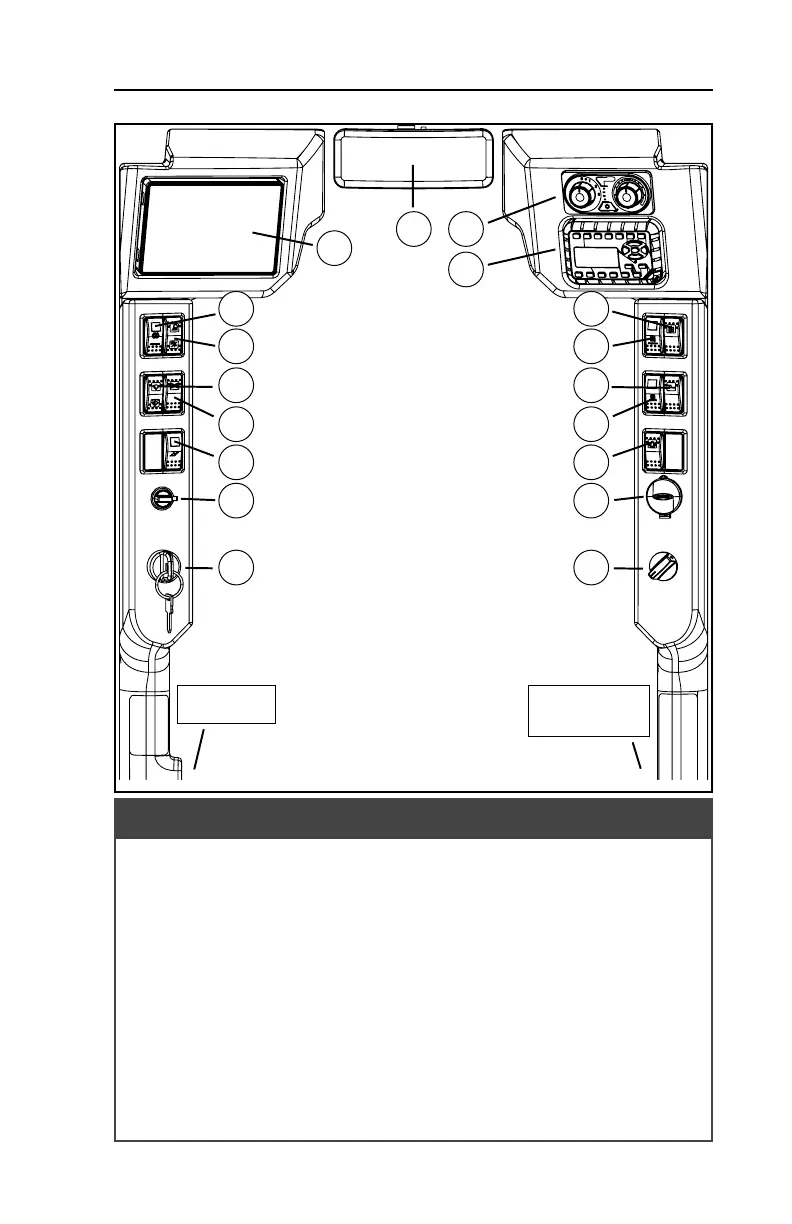

Switches
1 - Ignition Switch
3 - Power Quick Attach (optional)
4 - Side Lights (optional)
5 - Wiper / Washer (optional)
6 - Work + Tail lights / Head + Tail lights
7 - Parking brake
12 - High Flow Aux. hydraulics (optional)
13 - Auxiliary hydraulics
14 - Bucket positioning (optional)
15 - Ride Control (optional)
16 - Beacon (optional)
Instruments & Equipment
2 - 12V Port
8 - Operator Interface (premium shown)
9 - Rearview mirror (camera optional)
10 - HVAC controls (optional)
11 - Radio (optional)
17 - Radio I / O interface (optional)
18 - Throttle
6
5
4
3
2
1
12
13
14
15
16
17
18
8
11
Note: Item presence may vary depending on configuration.
Cup Holder
Phone Holder
(optional)
