6.4 Lift Points
This section addresses the intended / proper use of lift
points on the RT-75 / RT-75HD.
Lift Points: The RT-75 / RT-75HD has 4 lift points
(points B, fig. 6.1-2 and points C, fig. 6.4-1).
Lift points “C” are to be used ONLY for lifting the
machine in accordance with the overhead lifting procedure in this chapter.
Lift points “C” are not to be used as anchor points for moving or retrieving the
machine in any way varying from the overhead lifting procedure, nor are they to
be used to lift, move or extract objects of any kind, in any way.
Note: Points B (fig. 6.1-2) serve multiple purposes (see sections 6.1 - 6.5).
Any use of the machine lift points varying from that described in this manual shall
be regarded as unintended or improper use. The supplier cannot be held respon-
sible for any damage resulting from improper use. This risk is borne solely by the
user.
6.5 Overhead Lifting Procedure
The RT-75 / RT-75HD is equipped with lift points that allow it to be lifted from
above for transportation purposes.
To lift the RT-75 / RT-75HD:
1. Shut the machine down in accordance with the shut down procedure in
section 5.13 of this manual, remove any attachments from the machine.
2. Attach the lifting apparatus (see note) to the machine as shown in figure
6.5-1.
Note: The “lifting apparatus” must include the following: a suitable hoist, spreader
beams, straps (chains or cables) and hooks all sized and rated for lifting a
machine of this nature (size and weight).
3. Once attached, you may slowly and carefully lift and move the machine,
exercising caution throughout the entire operation.
Note: See also sections 2.17 and 6.6 for further information regarding transport
prior to performing this procedure.
RT-75 / RT-75HD US O&M
0405-073 2020-07

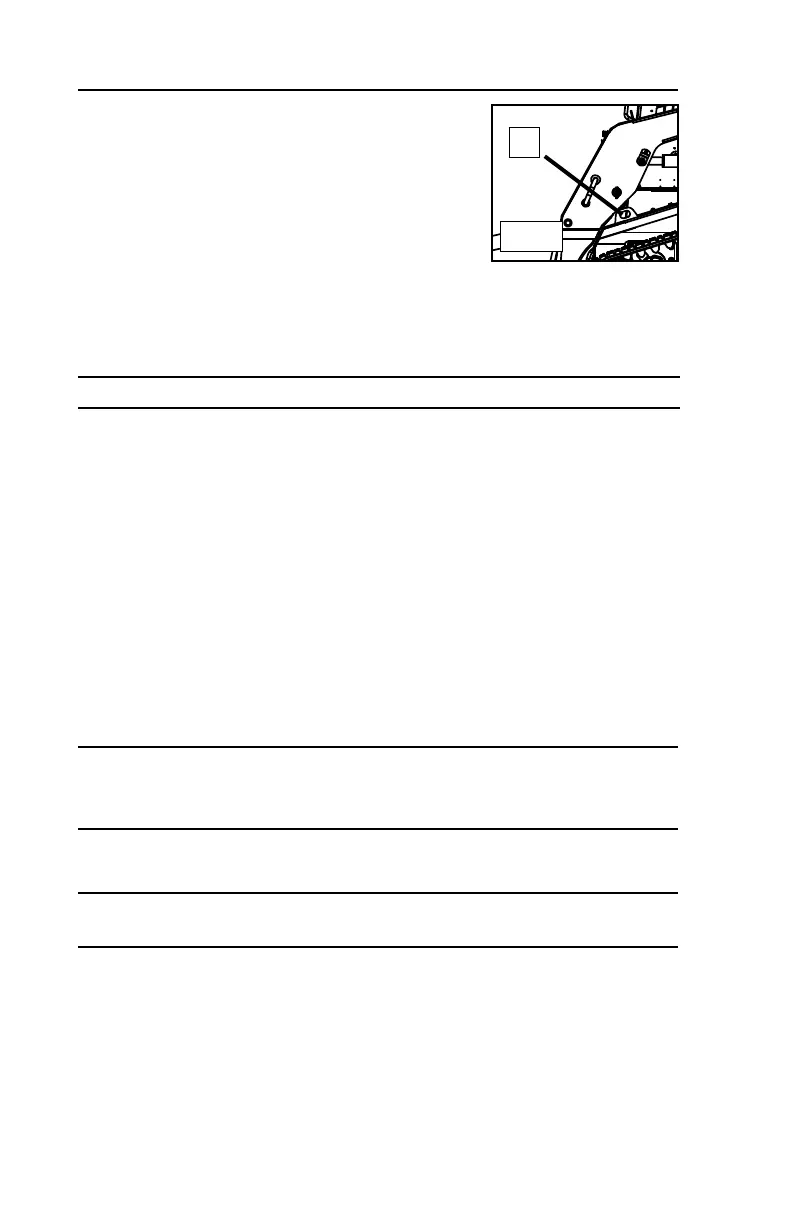

C
