6 TRANSPORTATION
95
RT-75 / RT-75HD US O&M
0405-073 2020-07

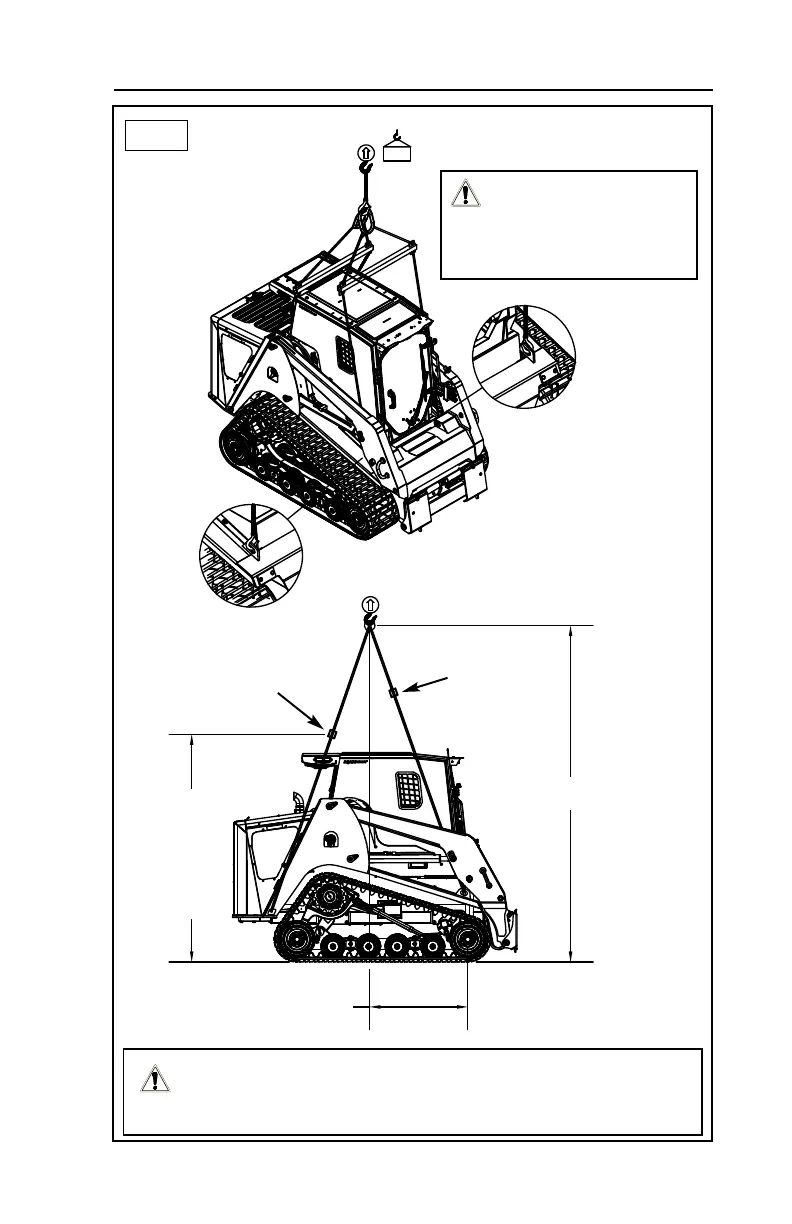

When lifting the machine, attach suitable lifting chains / straps to all
four lift points and lift vertically directly above the center of gravity
as shown (fig. 6.5-1).
Weight of machine being
lifted must not exceed
9465 Lb. Spreader beams
must be rated for 10 tons.
9465 lbs (4293 Kg)
6.5-1
140 in. (min.)
49.53 in. (C of G - lift here)
Spreader
beams
must
clear
cab.
Spreader beam
(6 ft. span)
Spreader beam
(3 ft. span)
