ASV RT-75 - Technical Data; 3.1 General Structure

3 TECHNICAL DATA
31
RT-75 / RT-75HD US O&M
0405-073 2020-07

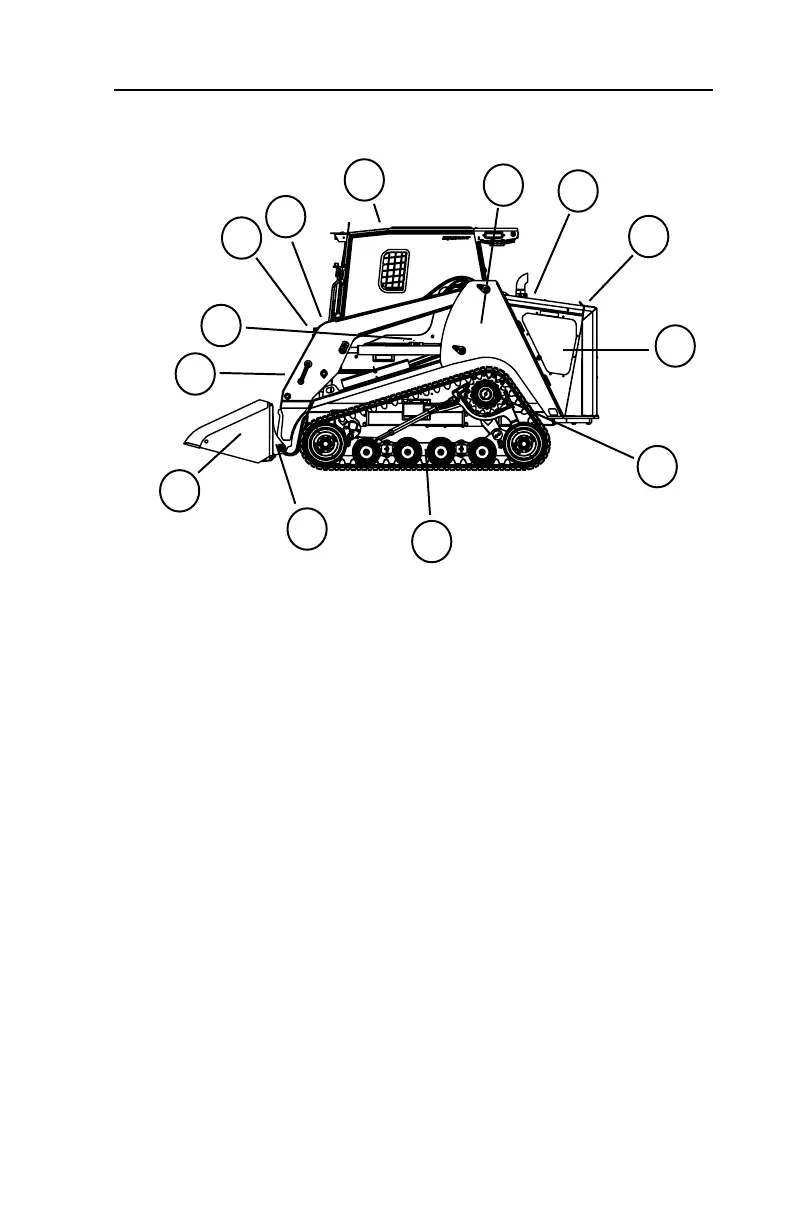

3.1 General Structure
Key
1. Auxiliary Hydraulic Quick Couplers (see section 4.10)
2. Electric Attachment Control Receptacle (see section 4.9)
3. Operator Enclosure (R.O.P.S./F.O.P.S. approved)
4. Diesel Fuel (fill location, right side of machine)
5. Hydraulic Oil (fill location)
6. Hood (engine cover)
7. Engine
8. Drive Motor and Sprocket
9. Undercarriage
10. Quick Attach
11. Bucket
12. Lift Arm
13. Product PIN Plate (on left side of operator enclosure)
3
8
5
4
6
7
10
9
11
12
13
1
2
