4 MACHINE DESCRIPTION / CONTROLS
41
RT-75 / RT-75HD US O&M
0405-073 2020-07

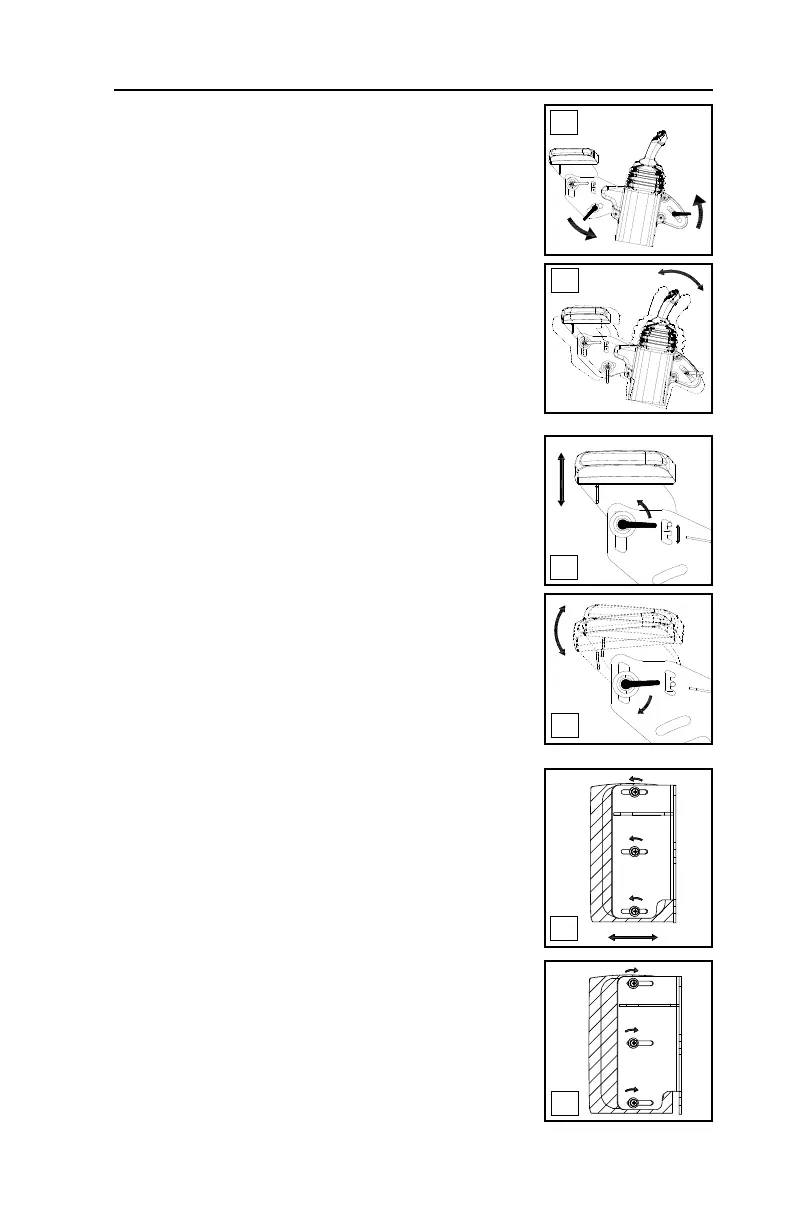

4.3.3 Control Assembly Adjustment
In some configurations, joystick and armrest position are
adjustable for comfort.
To adjust Joystick Position:
1.Rotate the two highlighted levers counter-clockwise to
loosen to assembly for adjustment (fig. J1).
2.Adjust position as desired for comfort (fig. J2).
3.Reverse step 1 of this procedure to tighten and
secure the assembly.
To adjust Armrest (height / angle):
1.Rotate the highlighted lever counter-clockwise to
loosen the assembly for adjustment.
2.Adjust height by engaging the forward setting pin in
the desired slot (fig. A1).
3.Set desired angle by rotating the armrest as shown
(fig. A2).
4.Rotate the lever clockwise to tighten and secure the
assembly (fig. A2).
To adjust Armrest Pad (inward / outward):
1.Loosen the fasteners securing the armrest pad to the
bracket (fig. A3, view is from the underside of the pad).
2. Adjust the armrest pad inward or outward as desired
for comfort (fig. A3).
3.Tighten the fasteners to secure the assembly (fig. A4).
J1
J2
A1
A2
A3
A4
