ATAGO CM-800A-DMF User Manual

18
(2) When the AC adapter AD-32, AD-33 or AD-34 (Optional) is used
Attach the connector of the DC output cable of the AD-32 (AD-33 or AD-34) to the power
(DC24V) input terminal at the bottom of the instrument.
Connect the opening of the input terminal with the connector pin and insert the connector.
Then turn the connector ring clockwise to fasten the connector.
To disconnect the DC output cable, fully turn the connector ring counterclockwise and remove
the connector.
m At this stage, keep the plug disconnected from the AC 100-240V outlet.
m When AD-32 (AD-33 or AD-34) is used, the power (DC24V) input cable provided with
the instrument is not used.

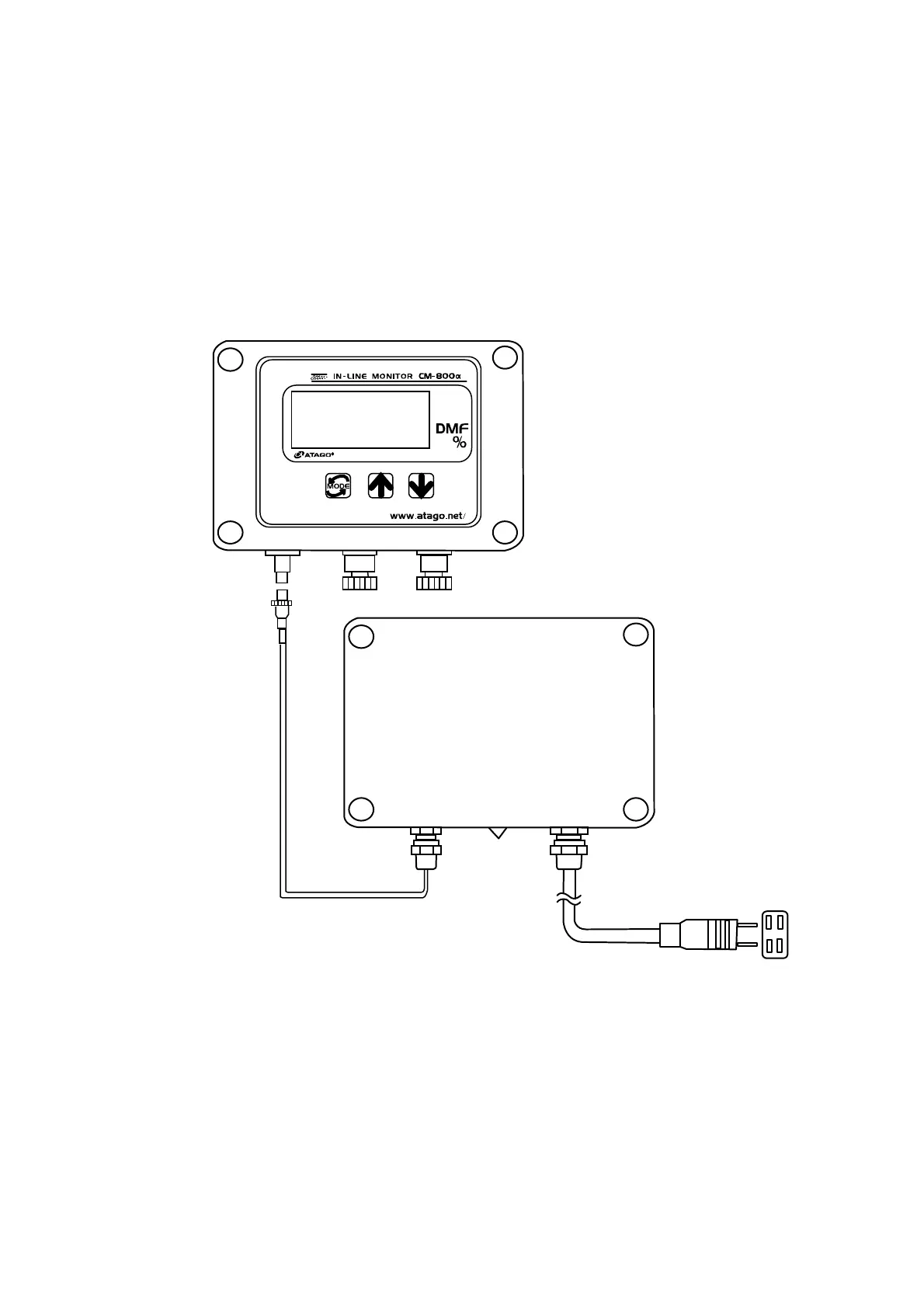

Fig. 7-3
12.3
AD-32 (AD-33 or
AD-34)
DC output cable
(approx. 1m in length)
