(2) RS-232C output

The instrument features a RS-232C output for computers. The RS-232C cable is an optional

accessory.

When using the RS-232C cable, the instrument and the PC should be separated by no more

than 15 meters.

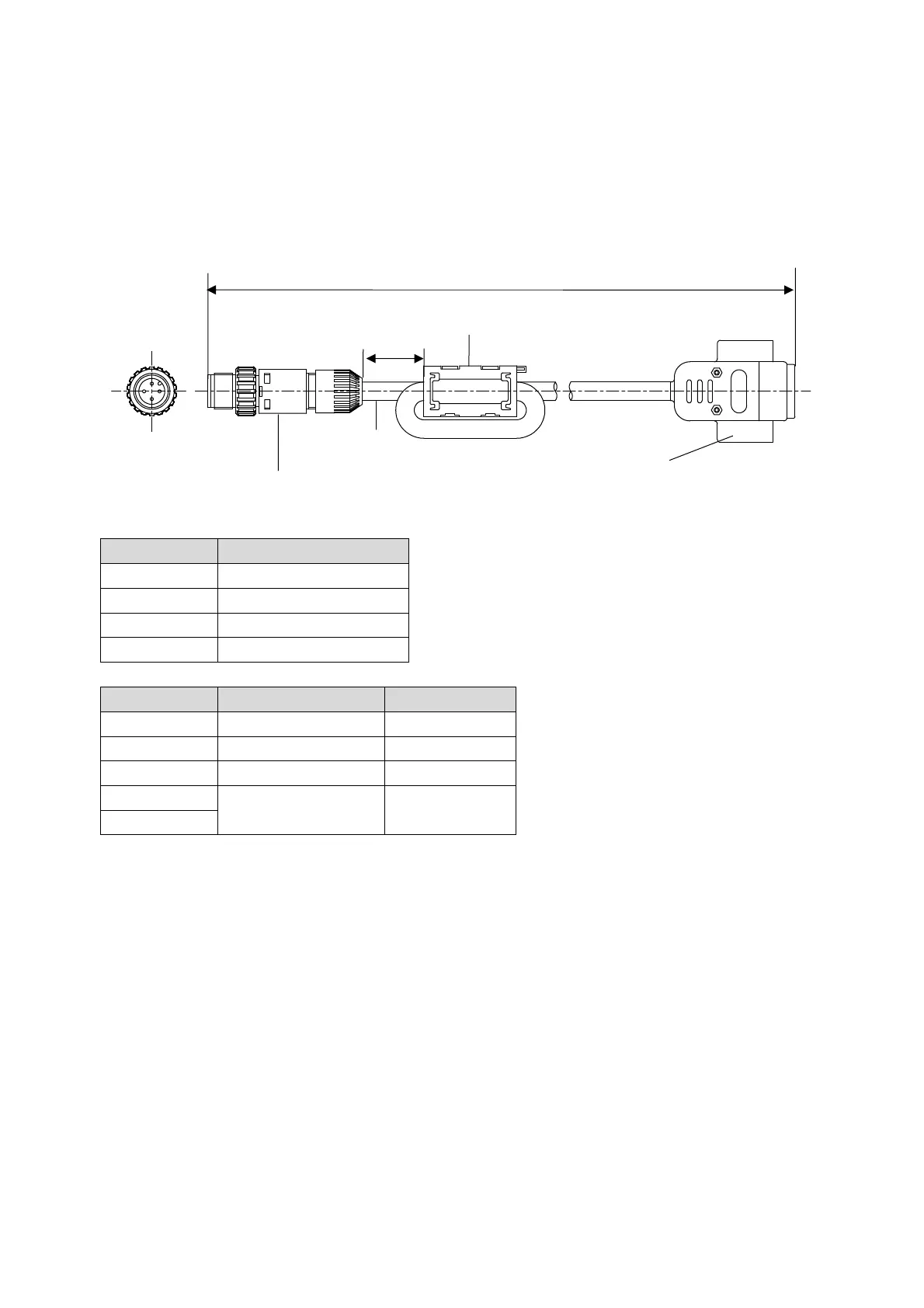

① RS-232C output cable and code tables (Fig. 8-2)

Fig. 8-2

Pin No. Code color

1 Black

2 Black/White

3 Red

4 Shield

Pin No. Code color Signal name

2 Black TXD

3 Black/White RXD

5 Red S.GND

Fold

Approx. 2cm

Waterproof connector plug

1 to 15m

Clamp filter

D-sub connector

Cable
