Introduction
Admin Admin
Admin
Keyboard
Display
Printer
PC
Central Office
Lines
To MERLIN
Controller
Line Jacks
MERLIN
Identifier
Control Unit
From MERLIN
Controller
MERLIN Identifier
Station Jacks
Display and
MERLIN Telephones

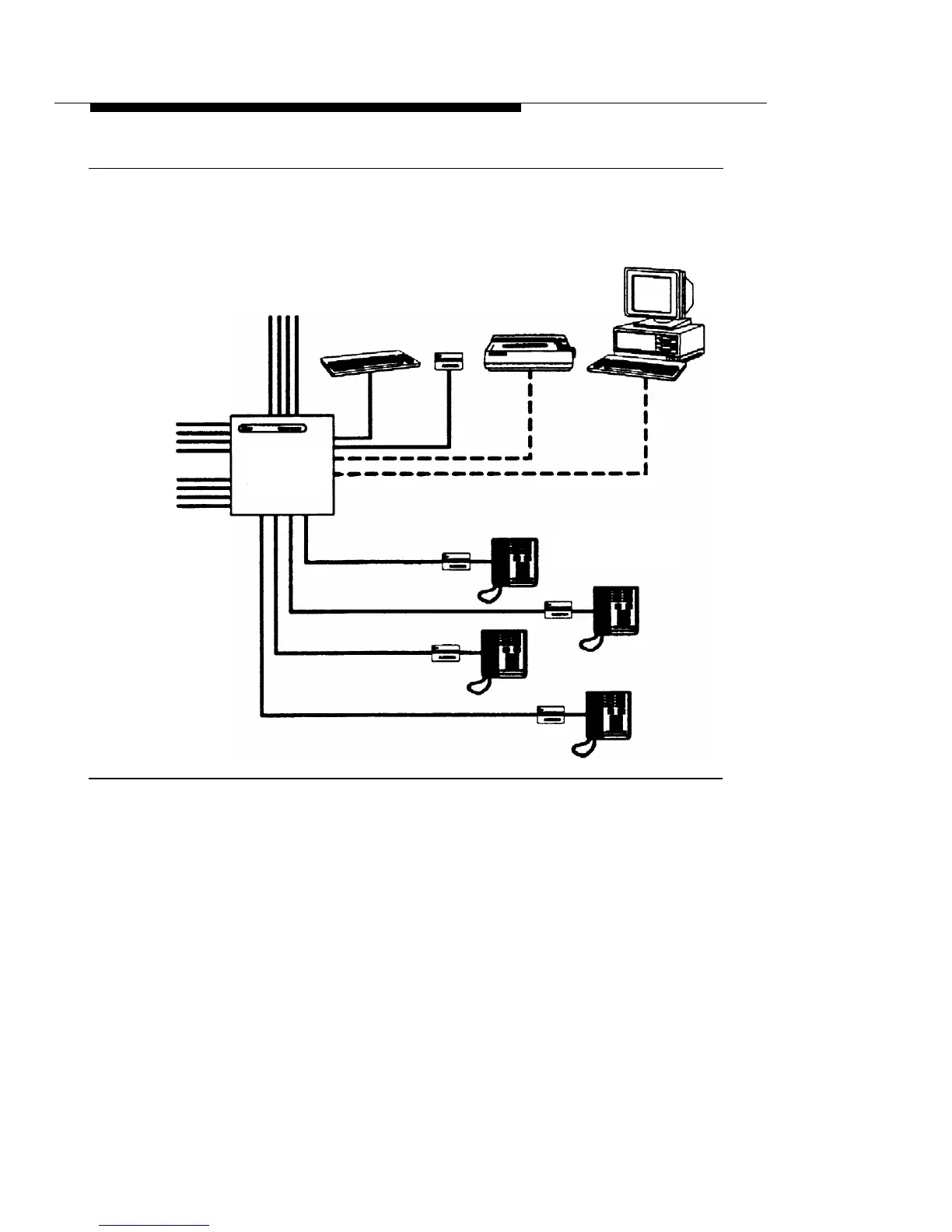

Figure 1.
MERLIN Identifier Components
MERLIN Identifier Control Unit
provides Caller ID functions,
administrative functions, and the MERLIN Identifier database. For
each incoming call, the MERLIN Identifier system sends the
following information to the MERLIN Identifier Displays: the last
two digits of the line number on which the call was received, the
time and date of the call as recorded at the Central Office, and if
the caller’s exchange provides Caller ID service, the caller’s
telephone number as well.
MERLIN Identifier Components and Features
3
