CS1308 / CS1316 User Manual
6

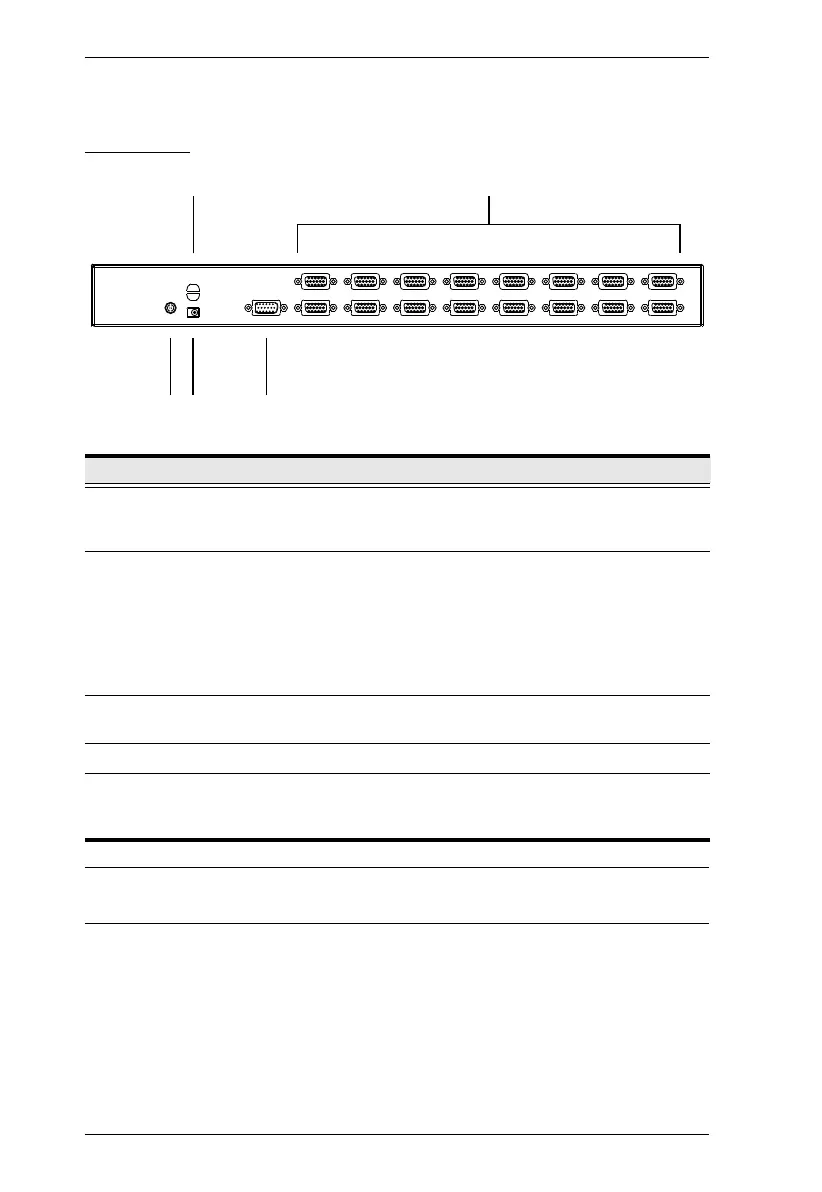

Rear View
Note: The CS1316 is pictured above. The CS1308 rear panel is the same as
the CS1316, except that it has 8 KVM ports instead of 16.
No. Component Description
1 Cable Tie Slot If you want to use a cable tie to gather the cables
together, you can run it through this slot to attach it to
the unit.
2 KVM Ports The cables that link to the computers plug in here.
Note: The shape of these 15-pin connectors has been
specifically modified so that only custom KVM cables
designed to work with this switch can plug in.
(See Cables, page 3, for details.) Do NOT attempt to
use ordinary 15-pin VGA connector cables to link
these ports to the computers.
3 Grounding Terminal The grounding wire used to ground the CS1308 /
CS1316 attaches here.
4 Power Jack The power adapter cable plugs in here.
5 Console Port The custom console cable set that is provided to
attach the console monitor, keyboard, and mouse
plugs in here.
12
34 5

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the ATEN Master View CS1308 and is the answer not in the manual?

ATEN Master View CS1308 Specifications

General IconGeneral
Device TypeKVM Switch
Ports8
Max Resolution2048 x 1536
Video Bandwidth350 MHz
Daisy ChainNo
Number of ports8
Console Connections1
Operating Temperature0 - 50°C
Storage Temperature-20 - 60°C
Humidity0 - 80% RH, Non-condensing
Connectors8 x SPHD-15 Female (Yellow)
Computer Connections8
Console Ports1 x SPHD-15 Female
Video Resolution2048 x 1536
Power Consumption (DC)5W
Dimensions (mm)437.2 x 160 x 44 mm
Power Consumption (AC)5W
