ATEN Master View CS1308 User Manual

Chapter 2. Hardware Setup
13
Single Level Installation
In a single level installation, there are no additional switches cascaded from the
first unit. To set up a single level installation do the following:
1. Ground the CS1308 / CS1316 and make sure that power has been turned
off to all the computers you will be connecting up.
2. Using the console cable provided, connect a keyboard, mouse, and
monitor to the CS1308 / CS1316 console port. Refer to the Cable
Connection Diagrams on the following page.
3. Use KVM cable sets* (as described in the Cables section on page 3), to
connect any available KVM port to the keyboard, video and mouse ports
of the computer you are installing. Refer to the KVM Cable Installation
Diagrams on the following page.
4. Plug the power adapter cable into the CS1308 / CS1316 power jack, then
plug the power adapter into an AC power source.
5. Turn on the power to the computers.

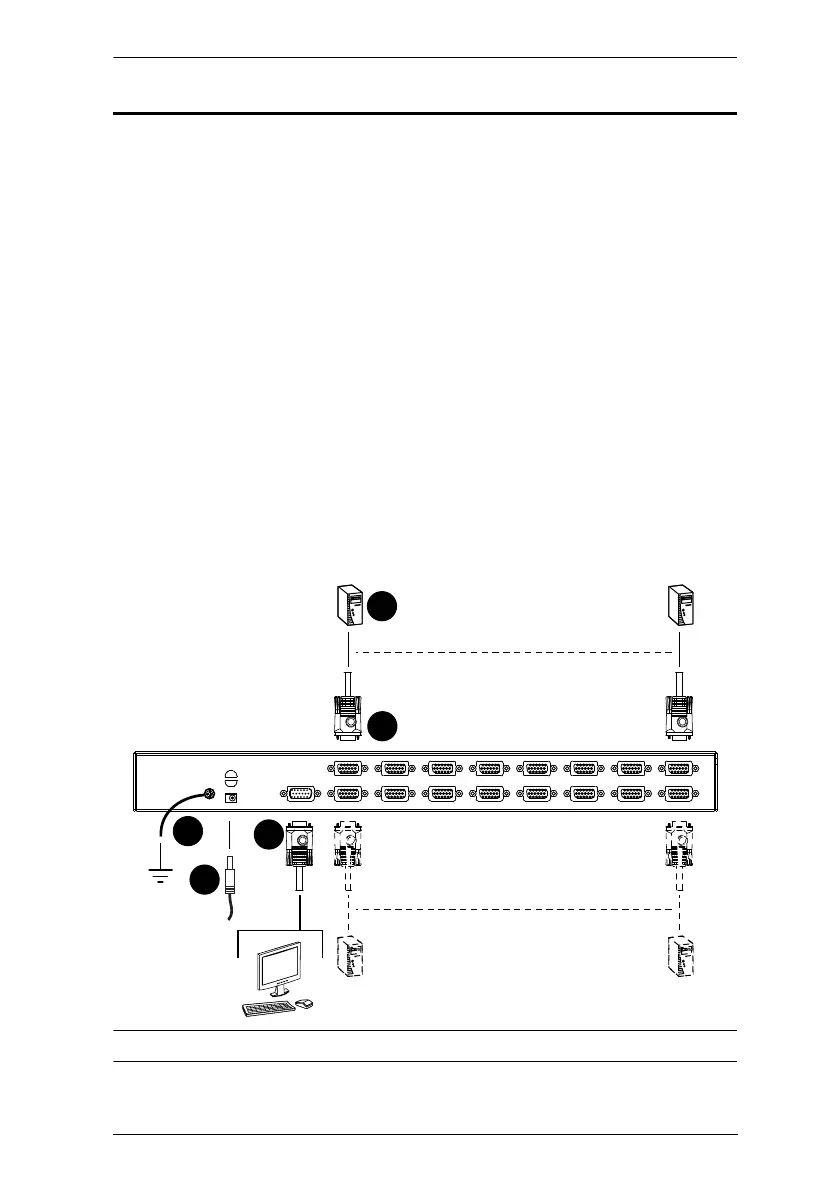

Single Level Installation Diagram
Note: The numbers in the diagram correspond to the numbered steps above.
* Contact your KVM switch dealer for ordering information.
2
3
1
5
4

ATEN Master View CS1308 Specifications

General

Device Type	KVM Switch
Ports	8
Max Resolution	2048 x 1536
Video Bandwidth	350 MHz
Daisy Chain	No
Number of ports	8
Console Connections	1
Operating Temperature	0 - 50°C
Storage Temperature	-20 - 60°C
Humidity	0 - 80% RH, Non-condensing
Connectors	8 x SPHD-15 Female (Yellow)
Computer Connections	8
Console Ports	1 x SPHD-15 Female
Video Resolution	2048 x 1536
Power Consumption (DC)	5W
Dimensions (mm)	437.2 x 160 x 44 mm
Power Consumption (AC)	5W
