ATEN Master View CS1308 User Manual

Chapter 7. The Firmware Upgrade Utility
45

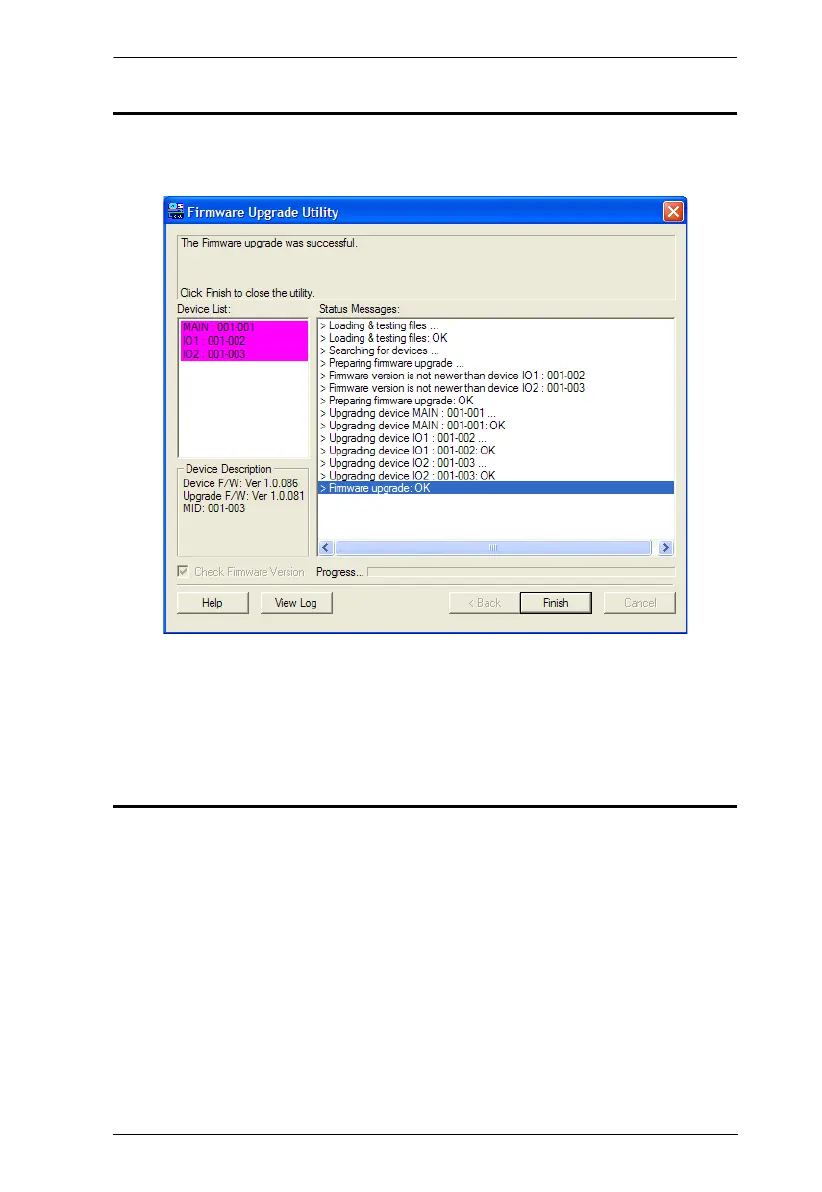

Upgrade Succeeded
After the upgrade has completed, a screen appears to inform you that the
procedure was successful.
Click Finish to close the Firmware Upgrade Utility.
Upgrade Failed
If the Upgrade Succeeded screen doesn't appear, it means that the upgrade
failed to complete successfully. See the next section, Firmware Upgrade
Recovery, for how to proceed.

ATEN Master View CS1308 Specifications

General

Device Type	KVM Switch
Ports	8
Max Resolution	2048 x 1536
Video Bandwidth	350 MHz
Daisy Chain	No
Number of ports	8
Console Connections	1
Operating Temperature	0 - 50°C
Storage Temperature	-20 - 60°C
Humidity	0 - 80% RH, Non-condensing
Connectors	8 x SPHD-15 Female (Yellow)
Computer Connections	8
Console Ports	1 x SPHD-15 Female
Video Resolution	2048 x 1536
Power Consumption (DC)	5W
Dimensions (mm)	437.2 x 160 x 44 mm
Power Consumption (AC)	5W
