CS1308 / CS1316 User Manual
44

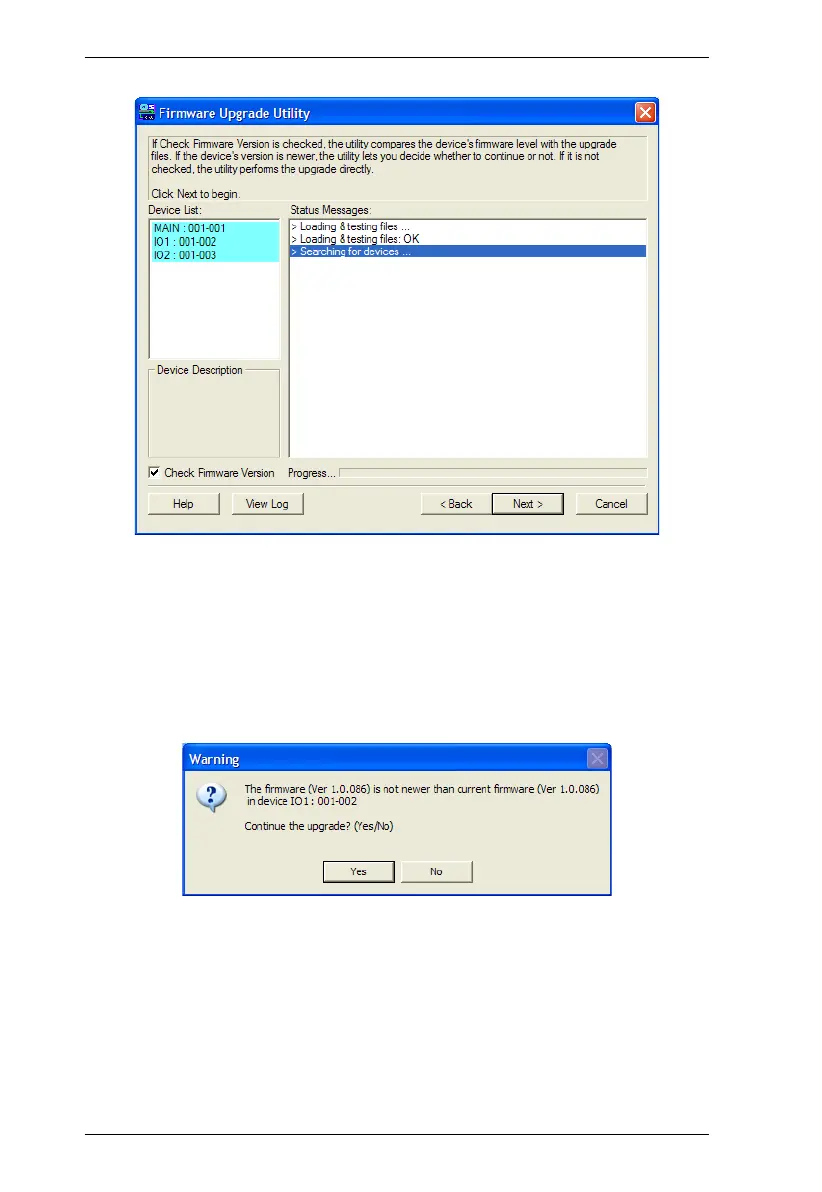

4. Click Next to perform the upgrade.
If you enabled Check Firmware Version, the Utility compares the device's
firmware level with that of the upgrade files. If it finds that the device's
version is higher than the upgrade version, it brings up a dialog box
informing you of the situation and gives you the option to continue or
cancel.
If you didn't enable Check Firmware Version, the Utility installs the
upgrade files without checking whether they are a higher level, or not.
As the upgrade proceeds, status messages appear in the Status Messages
panel, and the progress toward completion is shown on the Progress bar.

ATEN Master View CS1308 Specifications

General

Device Type	KVM Switch
Ports	8
Max Resolution	2048 x 1536
Video Bandwidth	350 MHz
Daisy Chain	No
Number of ports	8
Console Connections	1
Operating Temperature	0 - 50°C
Storage Temperature	-20 - 60°C
Humidity	0 - 80% RH, Non-condensing
Connectors	8 x SPHD-15 Female (Yellow)
Computer Connections	8
Console Ports	1 x SPHD-15 Female
Video Resolution	2048 x 1536
Power Consumption (DC)	5W
Dimensions (mm)	437.2 x 160 x 44 mm
Power Consumption (AC)	5W
