Preparation
To prepare for the firmware upgrade, do the following:

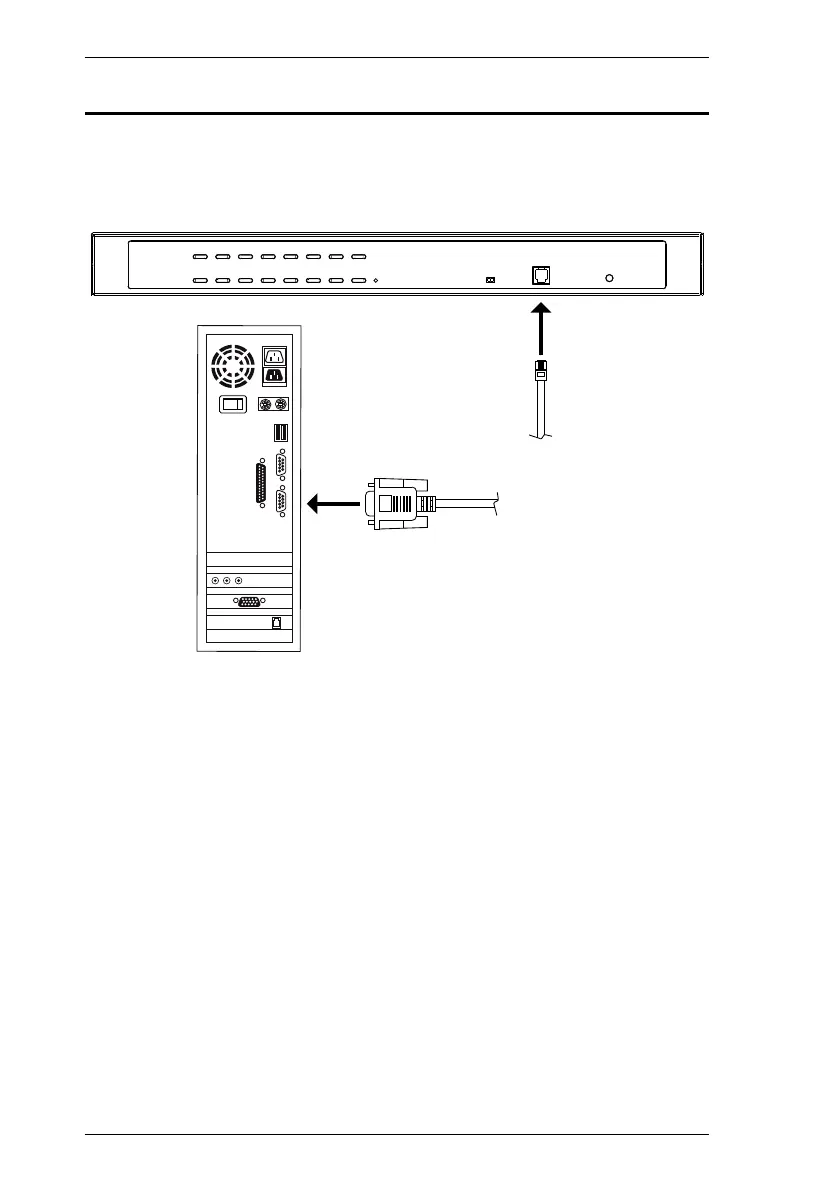

1. Use the Firmware Upgrade Cable provided with this unit to connect a COM
port on your computer to the Firmware Upgrade Port of your switch.
2. Shut down all the computers on the KVM installation.
3. From your KVM switch console, login to the OSD as the administrator
(see p. 19) and select the F4 ADM function.
4. Scroll down to FIRMWARE UPGRADE. Press [Enter], then press [Y] to
invoke Firmware Upgrade mode (see p. 27.)

ATEN Master View CS1308 Specifications

General

Device Type	KVM Switch
Ports	8
Max Resolution	2048 x 1536
Video Bandwidth	350 MHz
Daisy Chain	No
Number of ports	8
Console Connections	1
Operating Temperature	0 - 50°C
Storage Temperature	-20 - 60°C
Humidity	0 - 80% RH, Non-condensing
Connectors	8 x SPHD-15 Female (Yellow)
Computer Connections	8
Console Ports	1 x SPHD-15 Female
Video Resolution	2048 x 1536
Power Consumption (DC)	5W
Dimensions (mm)	437.2 x 160 x 44 mm
Power Consumption (AC)	5W
