CS1308 / CS1316 User Manual
54
Restoring Factory Default Settings
You can restore the factory default settings (listed on the next page) for the
CS1308 / CS1316. With this procedure, the administrator and all user accounts
are removed from the system. All port names and setting are also removed.
Note: A jumper cap is required when performing this procedure.
1. Unplug the CS1308 / CS1316 power adapter.
2. Remove the cover of the CS1308 / CS1316.
3. Depending on the model, place a jumper cap over pins 1-2 of the J17 or
J10 jumper on the mainboard.
4. Plug in the CS1308 / CS1316 power adapter. The following directions
appear on the KVM console screen:
USERNAME AND PASSWORD INFORMATION AND PORT/USER
INFORMATION HAS BEEN CLEARED. PLEASE POWER OFF THE
SWITCH, REMOVE THE JUMPER, CLOSE THE CASE, THEN
RESTART.
5. Unplug the power adapter again.
6. Remove the jumper cap from pins 1-2 of the J17/J10 jumper.
7. Replace the cover on the KVM switch.
8. Plug in the CS1308 / CS1316 power adapter.
9. You should now use the default username and password to log in to the
CS1308 / CS1316.

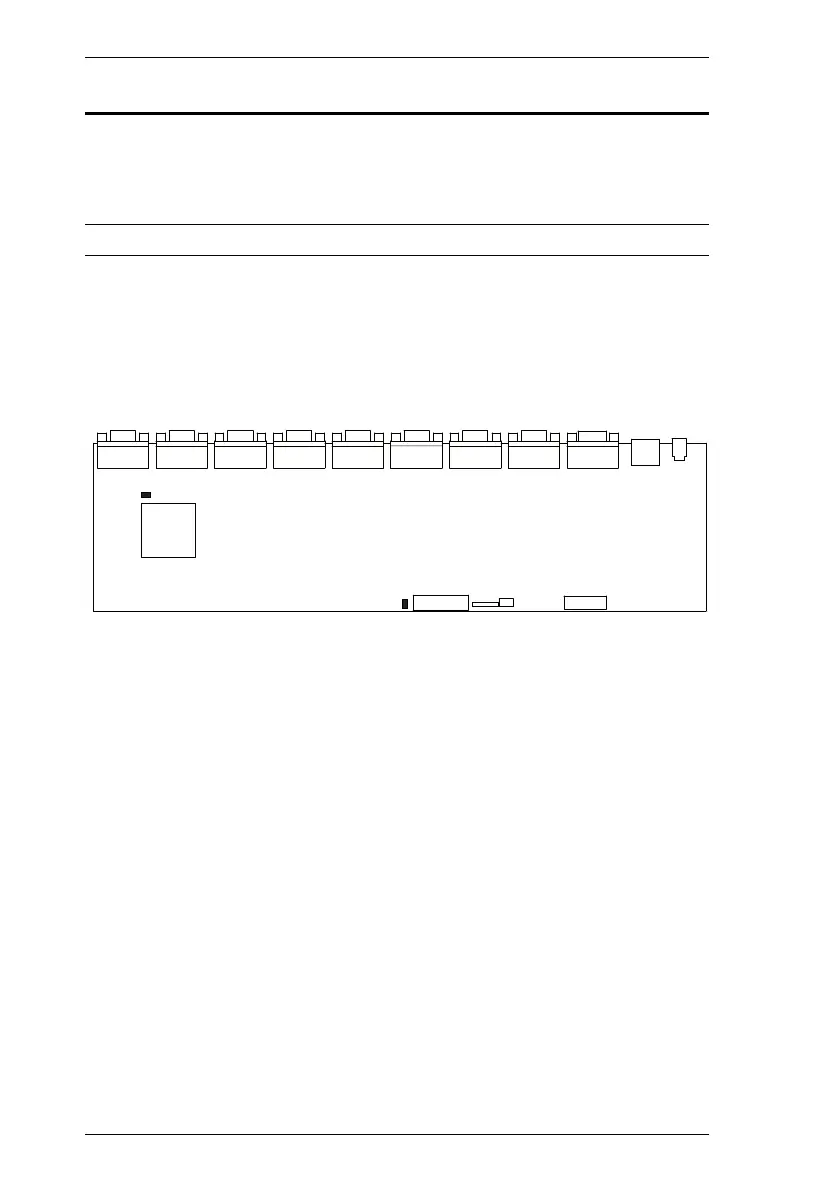

J17
J10
