2.1 Overview of Axia Models
The Axia sensor is available in three different models. An overview of each model is summarized in the
following table:
Table 2.1—Axia Models
Model Part Number
Number of
Identifying Grooves
1
Material
Axia80-M8 9105-NET-Axia80-M8-ZC22 3
Aluminum
Axia80-M20 9105-NET-Axia80-M20-ZC22
2
0
Axia80-M50 9105-NET-Axia80-M50-ZC22 2 Stainless Steel
Notes:
1. Identifying grooves are physical indentations in the sensor body(refer to Figure 2.2).Thesegrooves
provide users a quick visual method to differentiate the sensor models.
2. Formally 9105-NET-Axia80-ZC22
3. For calibration ranges, refer to Section 15.3—Calibration Ranges.

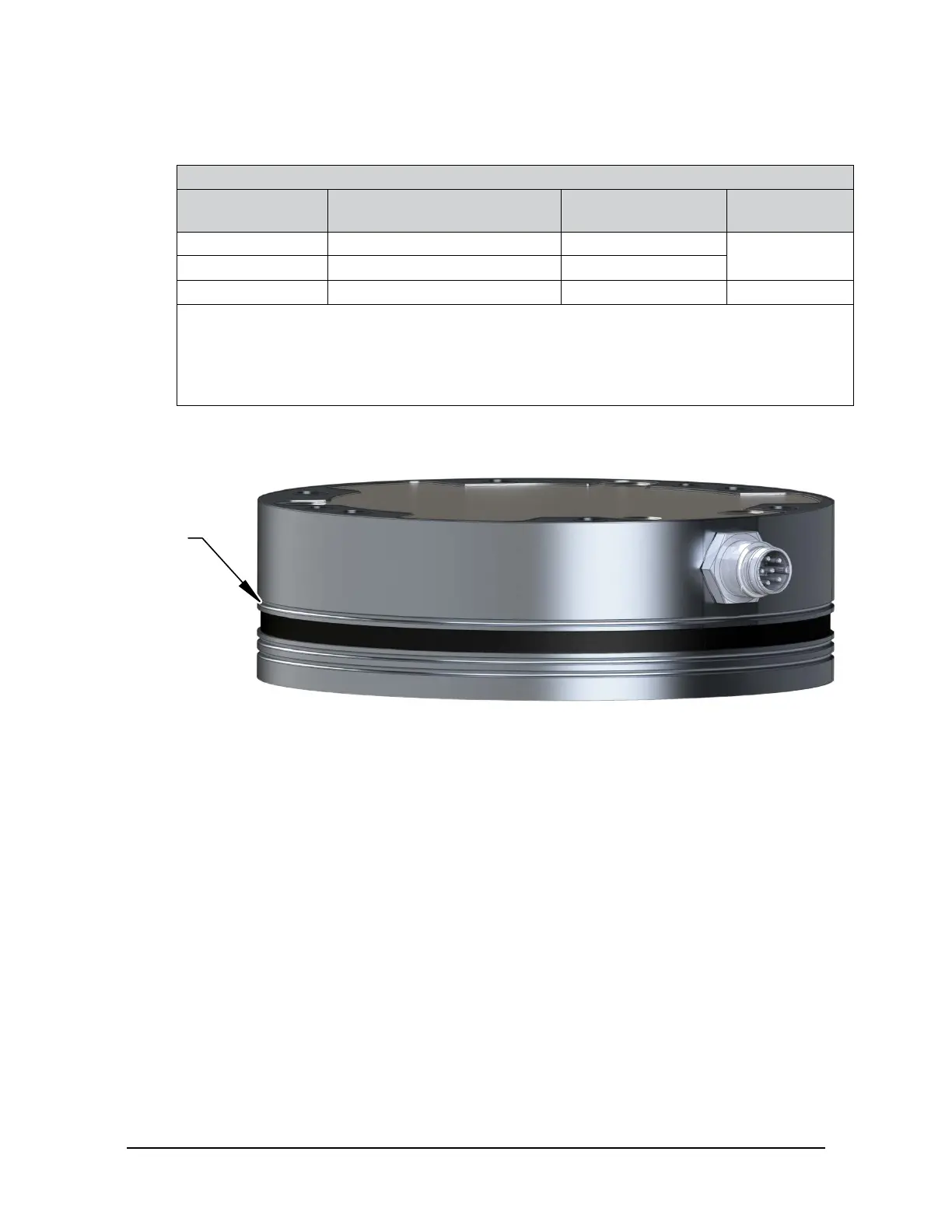

Figure 2.2—Identifying Grooves (Axia80-M8 shown as a reference)
Identifying
Groove
