ATI Technologies Axia80-M8 User Manual

Manual, F/T Sensor, Ethernet Axia
Document #9610-05-Ethernet Axia-09
Pinnacle Park • 1031 Goodworth Drive • Apex, NC 27539 • Tel:+1 919.772.0115 • Fax:+1 919.772.8259 • www.ati-ia.com
29

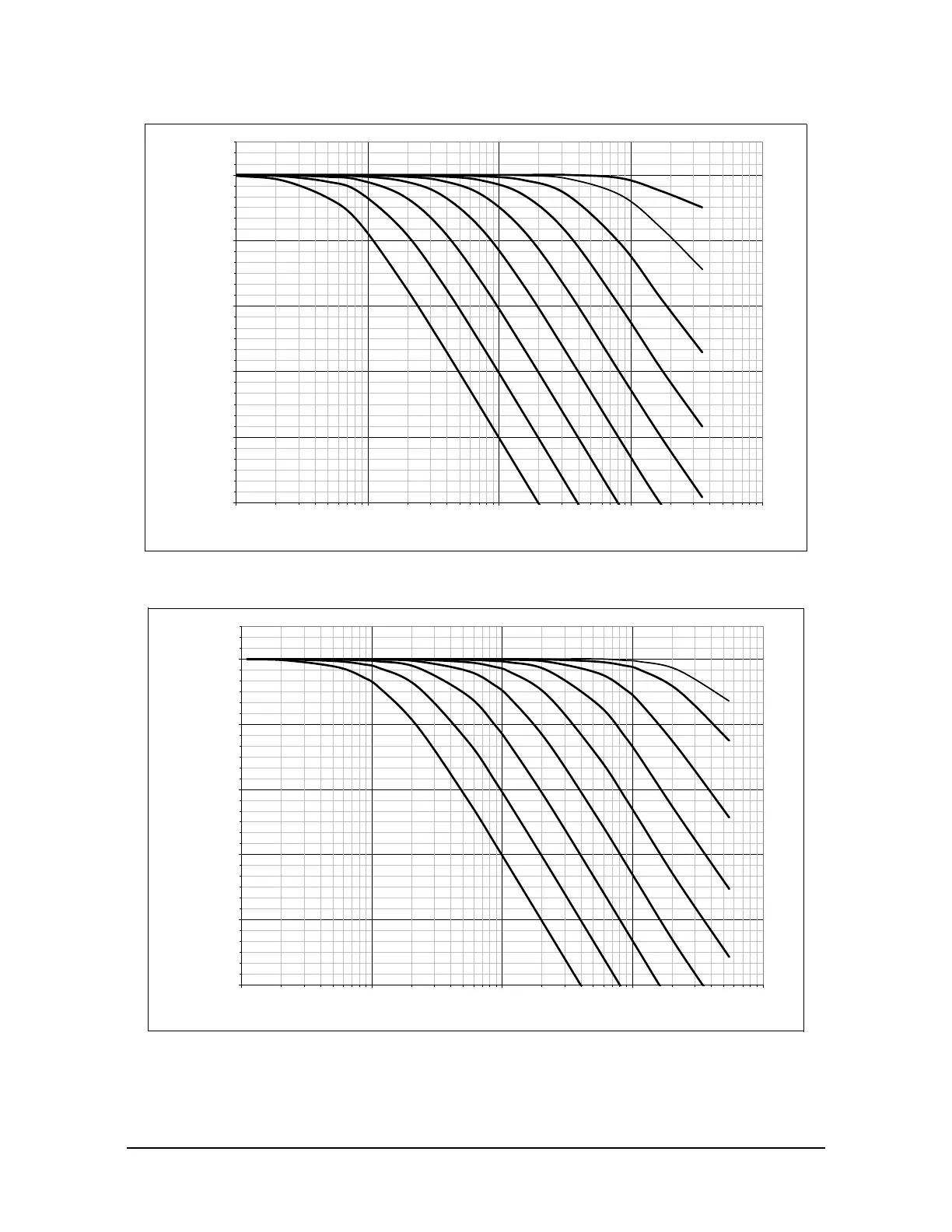

Figure 4.2—Filter Attenuation at 1 kHz Sample Rate
-30.0 dB
-24.0 dB
-18.0 dB
-12.0 dB
-6.0 dB
0.0 dB
0 Hz 1 Hz 10 Hz 100 Hz 1000 Hz
115 Hz
350Hz
45 Hz
21 Hz
10 Hz
5 Hz
3 Hz
1.2 Hz
Frequency
Attenuation
0.7 Hz
Figure 4.3—Filter Attenuation at 2 kHz Sample Rate
-30.0 dB
-24.0 dB
-18.0 dB
-12.0 dB
-6.0 dB
0.0 dB
0 Hz 1 Hz 10 Hz 100 Hz 1000 Hz
500 Hz
235 Hz
90 Hz
43 Hz
20 Hz
10 Hz
2.4 Hz
5 Hz
1.4 Hz
Frequency
Attenuation
