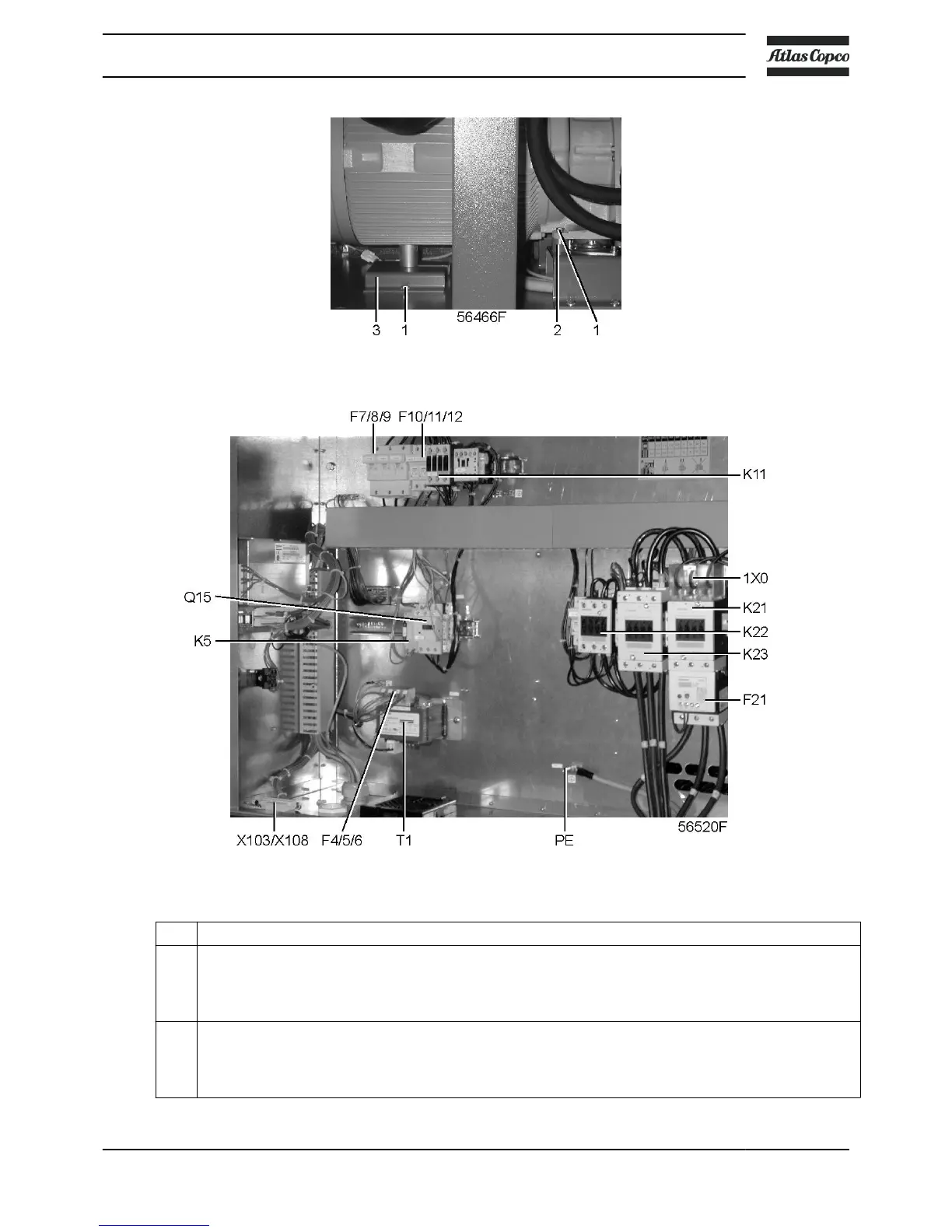

Motor and gear casing transport fixtures
Electric cubicle, typical example
- Consult the sections Electric cable size,Installation proposal and Dimension drawings
- The following transport fixtures, painted red, must be removed:
• Bolts (1)
• Bushes (2)
• Supports (3)
- Check that the electrical connections correspond to the applicable codes and that all wires are
clamped tight to their terminals.
The installation must be earthed and protected against short circuits by fuses of the inert type in all
phases. An isolating switch must be installed near the compressor.
