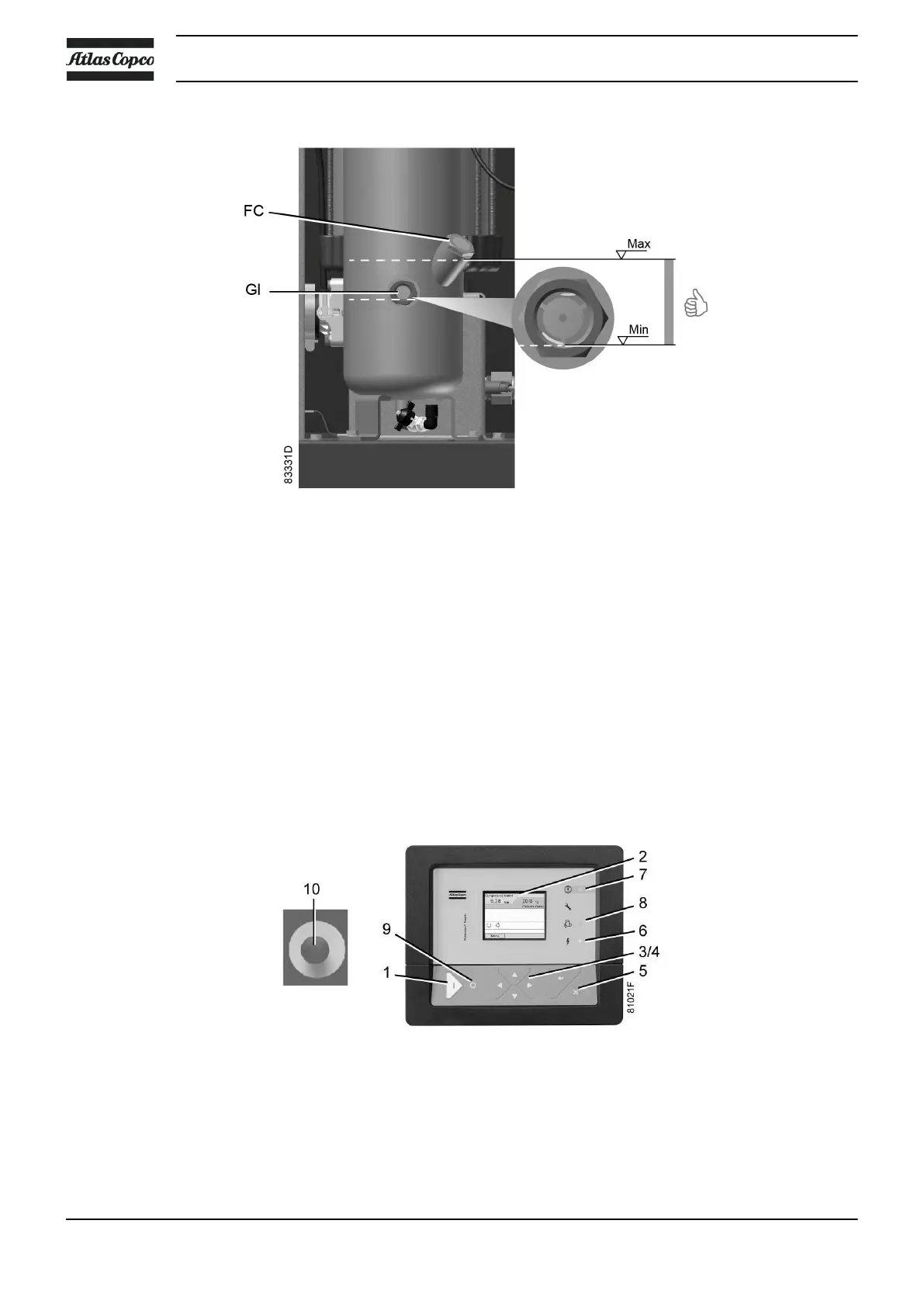

A few minutes after stopping, the oil level should reach the bottom of the oil filler neck (FC).
If the oil level is too low, wait until the compressor has depressurized. Push the emergency stop button (10)
to avoid the compressor to start unexpectedly. Next, close the air outlet valve and open the manual drain
valve (Dm) until the air system between oil separator/air receiver vessel and outlet valve is fully
depressurized. See section Condensate system for location of the outlet valve and water drain.
Unscrew oil filler plug (FC) one turn to permit any pressure left in the system to escape. Wait a few
minutes. Remove the plug and add oil until the level reaches the filler opening. Fit and tighten the plug
(FC).
Unlock the emergency stop button (10), select the STOP icon on the display and press reset before
restarting.
Regularly check that condensate is discharged during operation. See section Condensate system. The
amount of condensate depends on environmental and working conditions.
Regularly check the Elektronikon® display:
Control panel Elektronikon® Graphic
Check the display (2) regularly for readings and messages. The display normally shows the compressor
outlet pressure, while the status of the compressor is indicated by means of a number of icons. Remedy the
trouble if alarm LED (7) is lit or flashes, see section Icons used. The display (2) will show a service
message if a service plan interval has been exceeded or if a service level for a monitored component has
