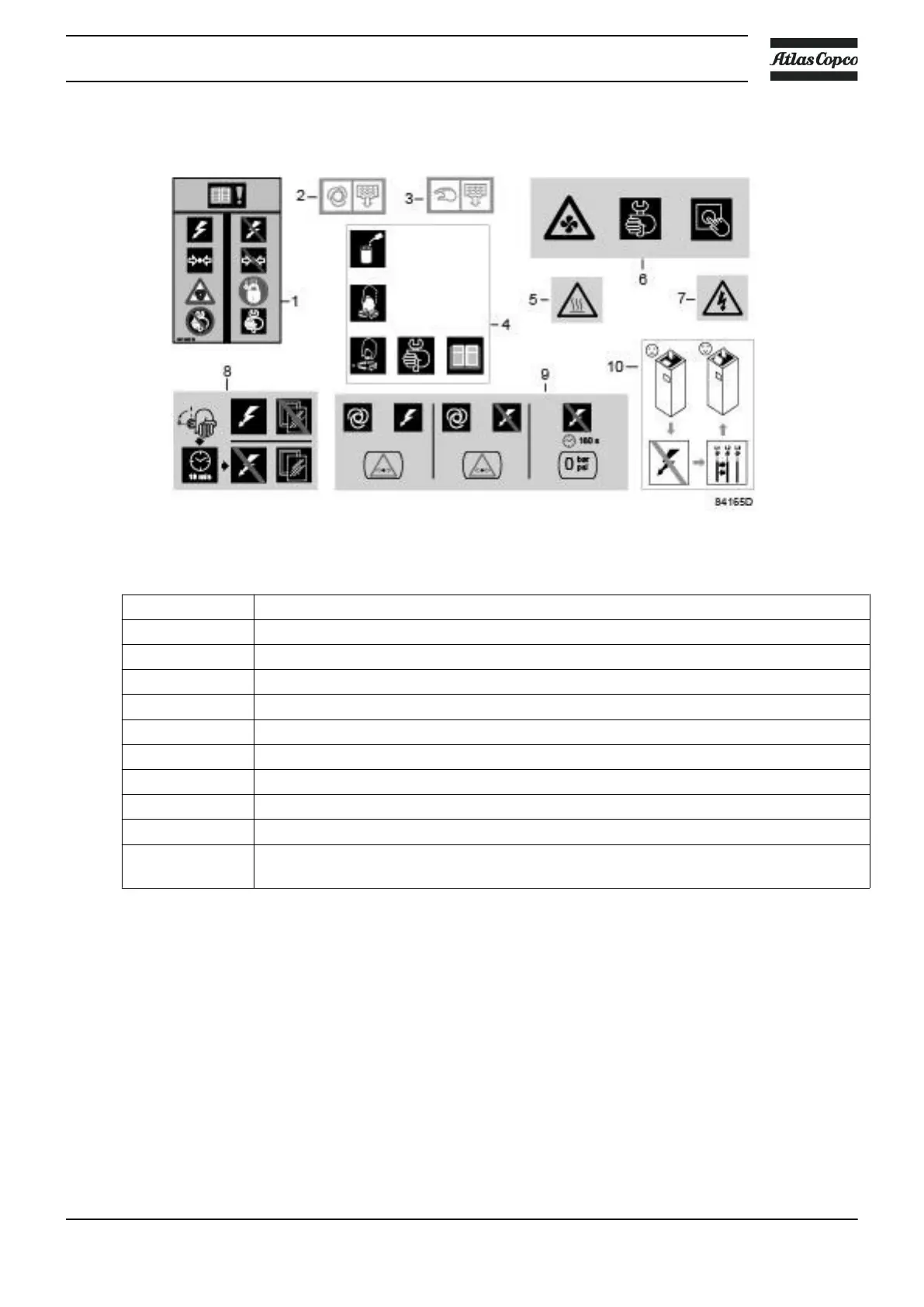

4.4 Pictographs
Pictographs
Reference Designation
1 Lock out/ tag out the compressor before starting maintenance or repairs
2 Automatic condensate drain
3 Manual condensate drain
4 Lightly oil the gasket of the oil filter, screw it on and tighten by hand (approx. half a turn)
5 Warning, hot surface
6 Stop the compressor before cleaning the coolers
7 Warning, voltage
8 Switch off the voltage and wait at least 10 minutes before maintenance
9 Compressor remains pressurized for 180 seconds after switching off the voltage
10 If the rotation direction is wrong, open the isolating switch in the voltage supply line and
reverse two incoming electric lines
Instruction book
2920 7109 23 81
