• The screen shows a number of icons. Each icon indicates a menu item. By default, the Pressure
Settings (Regulation) icon is selected. The status bar shows the name of the menu that corresponds
with the selected icon.
• Use the Scroll keys to select an icon.
• Press the Escape key to return to the Main screen.

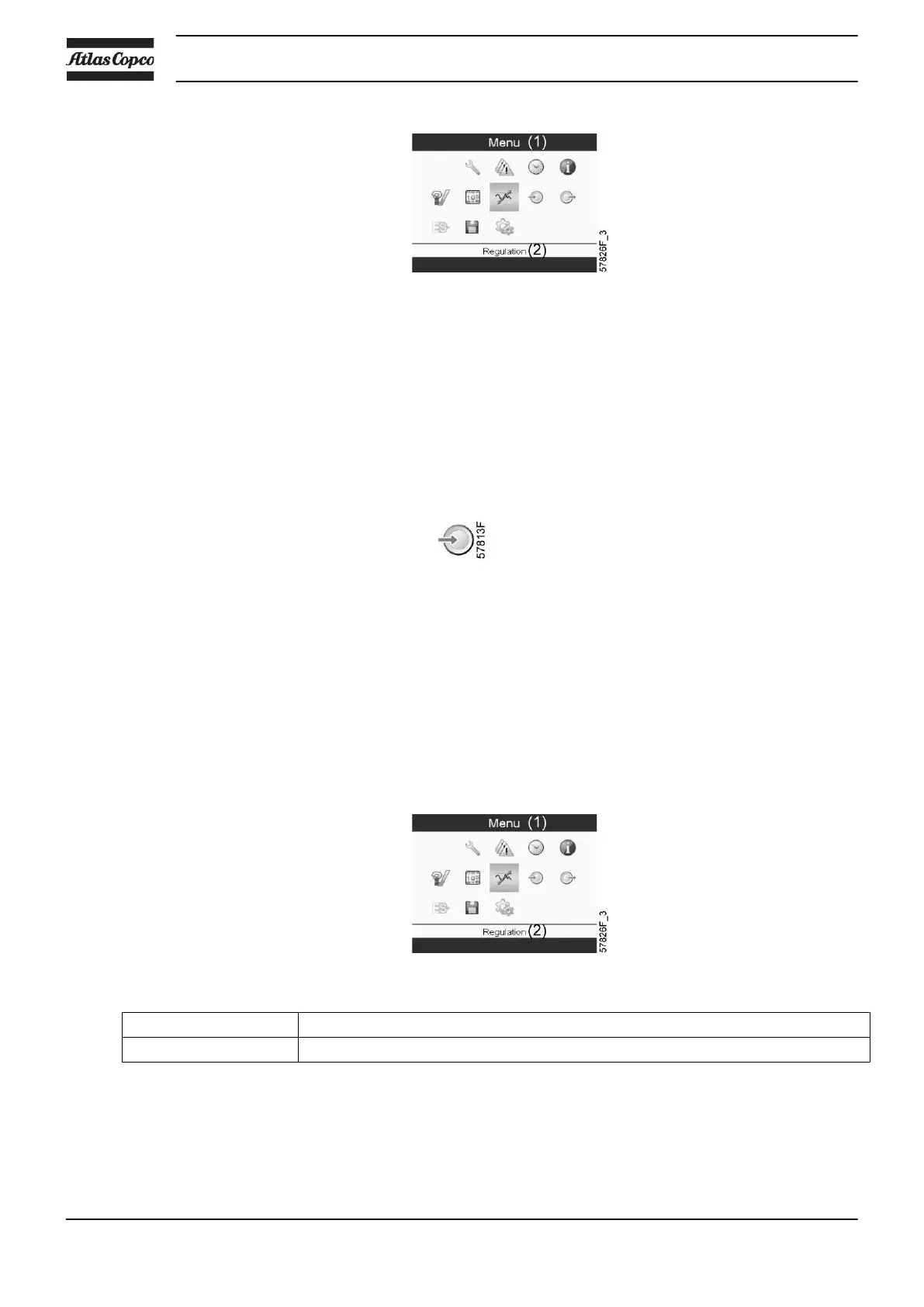

3.6 Inputs menu
Menu icon, Inputs
Function
• To display the actual value of the measured data (analog inputs) and the status of the digital inputs
(e.g. emergency stop contact, motor overload relay, etc.).
• To select the digital input to be shown on the chart in the main screen.
Procedure
Starting from the main screen,
• Move the cursor to the action button Menu and press the Enter key. Following screen appears:
Text on image
(1)
Menu
(2)
Regulation
• Using the Scroll keys, move the cursor to the Inputs icon (see above, section Menu icon).
• Press the Enter key. A screen similar to the one below appears:
Instruction book
34 2920 7109 23
