4.2 Installation proposal

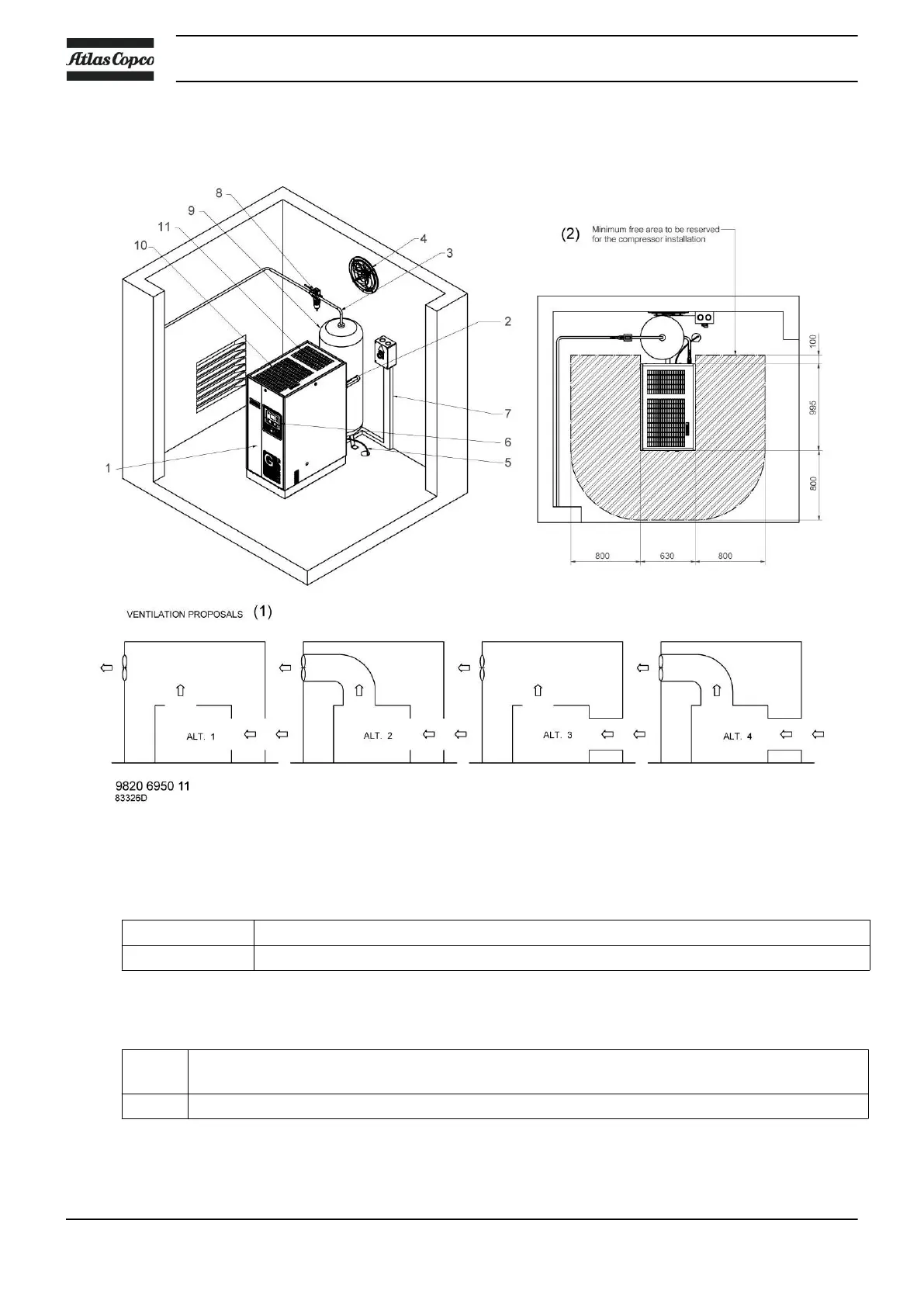

Compressor room example
Text on image
1 Ventilation proposals
2 Minimum free area to be reserved for the compressor installation
Description
1 Compressor unit:
Install the compressor unit on a solid, level floor suitable for taking the weight.
2 Position of the compressed air outlet valve.
Instruction book
76 2920 7109 23
