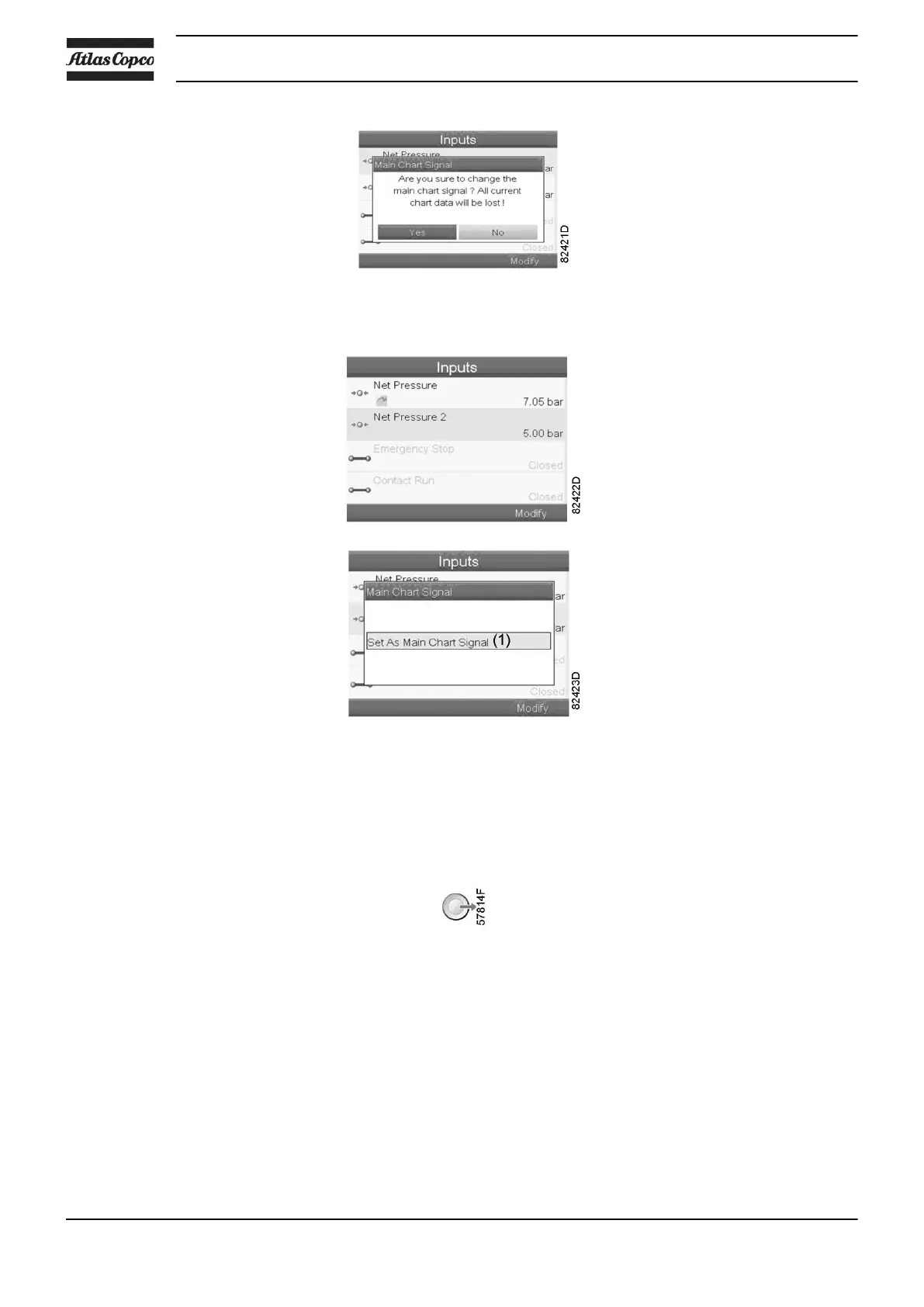

Select Yes to remove or No to quit the current action.
In a similar way, another input signal can be highlighted and selected as Main Chart signal:
(1): Set as main chart signal
3.7 Outputs menu
Menu icon, Outputs
Function
To call up information regarding the actual status of some outputs such as the condition of the Fan overload
contact (on air cooled compressors), the Emergency stop contact, etc.
Procedure
Starting from the Main screen,
• Move the cursor to the action button Menu and press the Enter key. Following screen appears:
Instruction book
36 2920 7109 23
