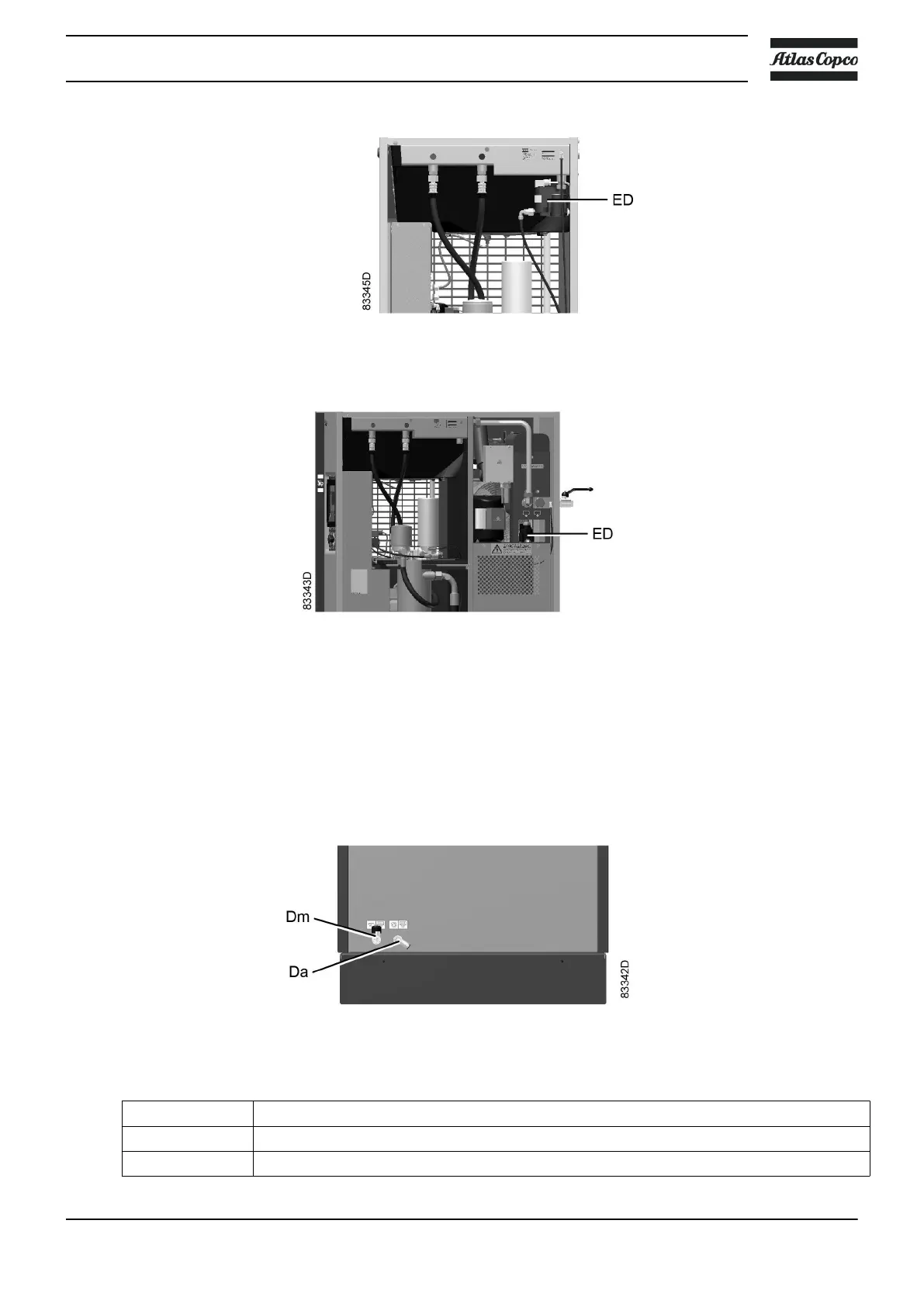

Location of electronic water drain (Workplace)
Location of electronic water drain (Workplace Full-Feature)
On GA Workplace units, the water in the air condenses and collects in the collector of the air cooler.
On a GA Workplace Full-Feature, the water in the air collects in the water separator of the heat exchanger/
evaporator.
When the condensate in the electronic drain (ED) reaches a certain level, it is drained via the automatic
drain outlet (Da).
Condensate drain connections, GA Workplace
Reference Designation
Da Automatic drain connection
Dm Manual drain connection
