Overview
To reduce the risk of serious injury or death to
yourself or others, read the Safety instructions
section found on the previous pages of this
manual before operating the machine.
Design and function
The trench compactor LP 8504 is a radio controlled
trench compactor. It has a robust design and is
suitable for compaction of medium to deep layers of
cohesive and granular soils on limited areas such as
trenches, construction back-fills and on roads. No
other use is permitted.
The LP trench compactor must only be used in
well-ventilated areas, as is the case for all
combustion engine machines.
The LP trench compactor must not be towed behind
vehicles.
Never operate on steeper slopes than recommended
in this manual.

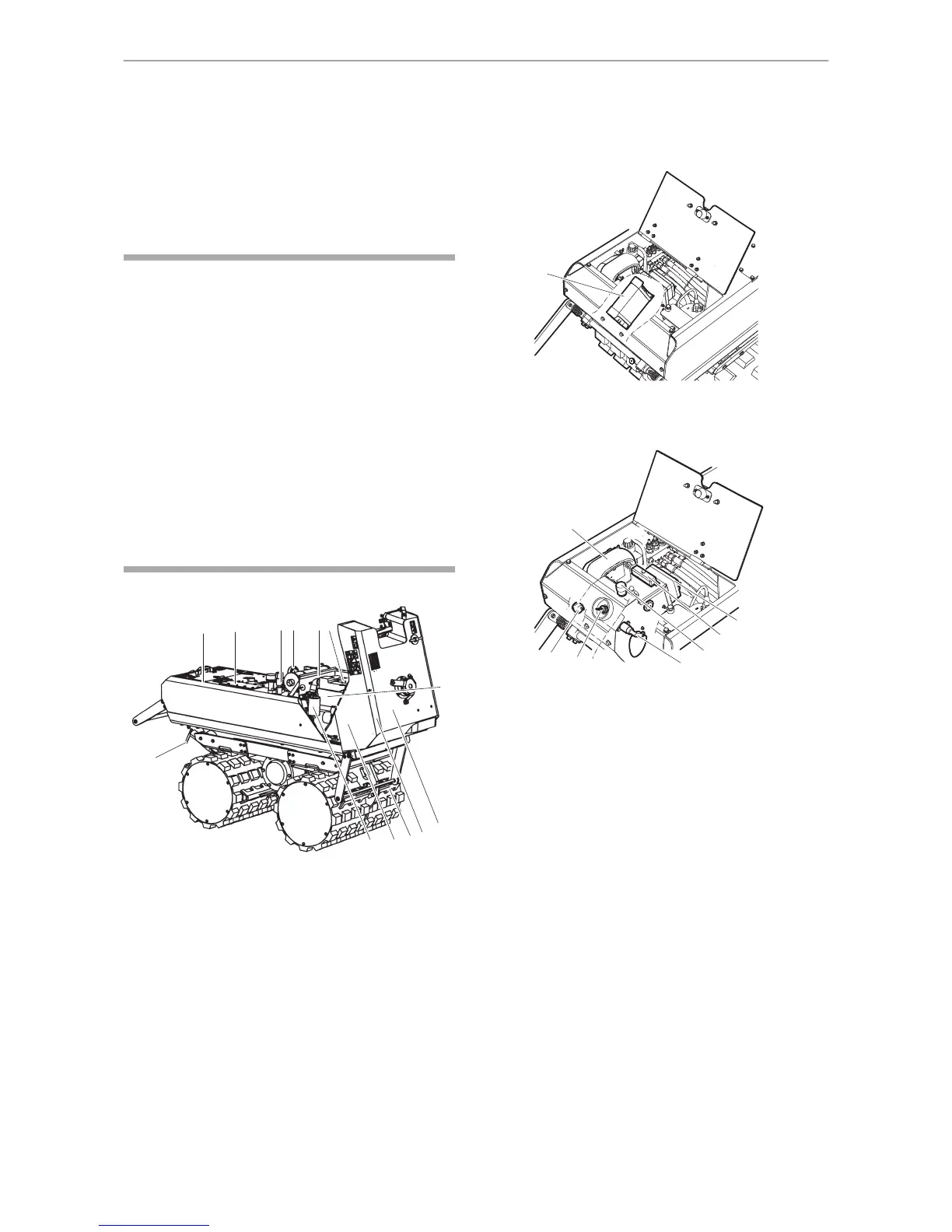

Main parts
A
B
C
D
E
F
G
H
I
J
K
L
M
A. Handbrake
B. Battery
C. Hydraulic oil tank
D. Hydraulic oil filter
E. Fuel tank
F. Silencer
G. Engine oil tank
H. Engine cooling system
I. Dewatering filter
J. Air filter with dust extractor valve
K. Scraper
L. Engine oil filter
M. Fuel filter
N
N. Receiver (placed under the electrical box cover
under the rear service hatch)
U
O
P
Q
R
S
T
O. Transmitter
P. Buzzer
Q. Cable connect
R. Battery disconnection
S. Emergency stop button
T. Fuse box
U. Battery charger
11© 2015 Construction Tools EOOD | No. 9800 1147 01d | 2015-11-11
Original instructions
Safety and operating instructionsLP 8504
