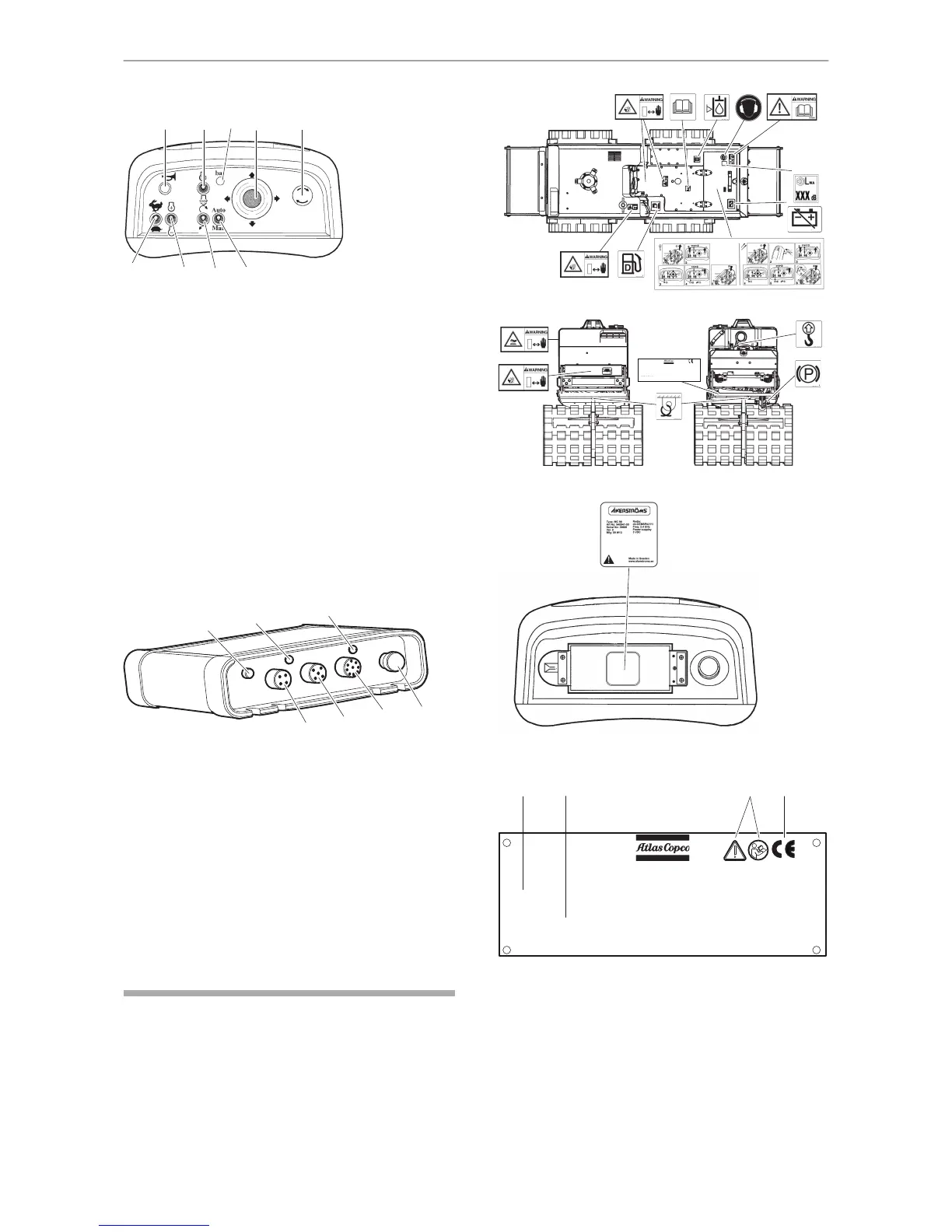

Atlas Copco LP 8504

Transmitter
A
B
C D
E
FG
H
I
A. Horn
B. Start/Stop switch, engine
C. Indicator for low battery voltage
D. Joystick
E. Transmitter on/off
F. Vibration manual/automatic
G. Vibration, direction
H. Engine revs
I. Operating speed
Receiver
The receiver is placed in the electrical box under the
rear service hatch.
A
B
C
D
E
F
G
A. Antenna
B. Status LED
C. RX
D. Pairing
E. Cable control
F. CAN
G. Power
Labels
The machine is fitted with labels containing important
information about personal safety and machine
maintenance. The labels must be in such condition
that they are easy to read. New labels can be ordered
from the spare parts list.
Construction Tools EOOD
Type
Operating mass kg
Rated power kW
Year of Mfg
P
roduct
I
dentification
N
umber
Made in Sweden
Made in Sweden
Data plate
Construction Tools EOOD
Type Operating mass kg Rated power kW Year of Mfg
Product Identification Number Made in xxxxxxxx
A B C D
A. Machine type
B. Product Identification Number
C. The warning symbol together with the book
symbol means that the user must read the
safety and operating instructions before the
machine is used for the first time.
© 2015 Construction Tools EOOD | No. 9800 1147 01d | 2015-11-11
Original instructions
12
LP 8504Safety and operating instructions
