NOTICE When operating the machine, follow the
instructions in the manual; never sit or stand on the
machine when it is working.
NOTICE Do not operate the machine at a greater
distance than 20 metres (22 yards). Always keep the
working area and the machine under good
supervision.
NOTICE Always specify the serial number when
making inquiries about control equipment.
Transmitter
The transmitter and receiver must have the same
address code and serial number. If another
transmitter is used, it must be coded so that the
address code corresponds with the receiver. See
section "Pairing function" for more information.
Coding must be performed by authorized service
personnel.
The range is up to 30 metres (33 yards), depending
on the surroundings and the occurence of any radio
frequency interference.
♦
Two 1500 mAh NiMh batteries are supplied with
the machine on delivery. The extra battery can be
charged in the battery charger during operation.
♦

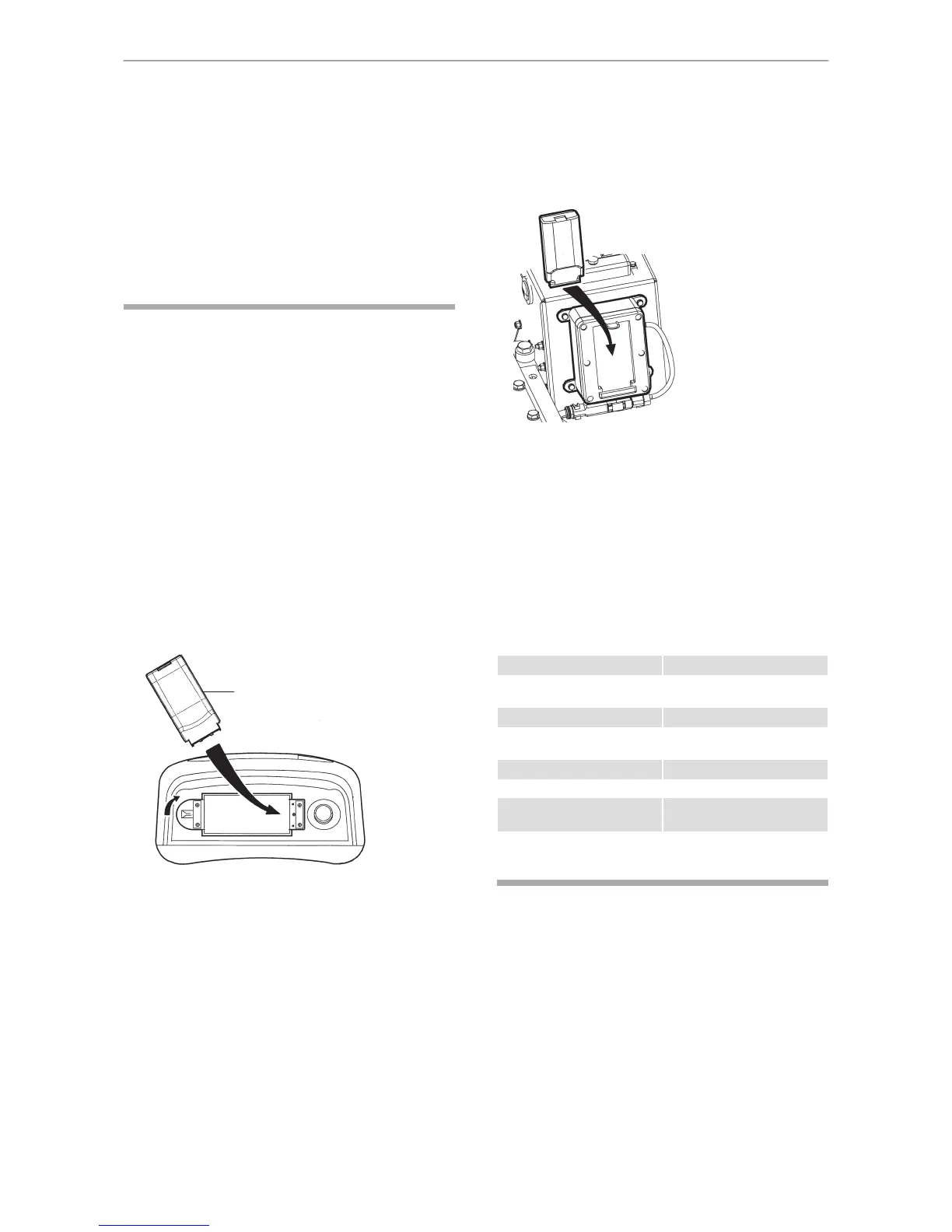

Insert the battery (A) into the transmitter by sliding
it into the slot until it is in locked position. To
remove the battery, twist the lock on the
transmitter.
♦
The operating time for a fully-charged battery is
about 15 hours. The transmitter has a yellow LED
that lights for 10 seconds when it is time to charge
the battery. In this mode, the battery can be used
for another 15 minutes. Change the battery and
make sure that the slot and contact surfaces are
clean.
♦
The extra battery can be charged in the receiver
on the machine during operation. The battery
charger is mounted on the front of the electrical
box, under the rear service hatch. Before charging
the battery, make sure that the battery charger's
and battery's contact surfaces are clean and dry.
♦
Radio communication is interrupted when the
battery is removed from the transmitter.
♦
The transmitter can be used without the battery if
it is connected to the machine with the supplied
cable.
♦
The battery must be trickle-charged every four
weeks, if the transmitter is not used. Remove the
battery if the transmitter is not used for a long
period.
StatusIndication LED
Battery discharged.Constant yellow light for 10
seconds.
Battery low charge.Flashing yellow light.
Joystick in wrong position when
starting the machine.
Green and red light.
No connection.Fast flashing green light.
Normal operation mode.Slow flashing green light.
Internal fault, transmitter.Constant red light for 10
seconds.
Receiver
The receiver (A) is mounted in the electrical box
under the rear service hatch.
© 2015 Construction Tools EOOD | No. 9800 1147 01d | 2015-11-11
Original instructions
16
LP 8504Safety and operating instructions
