Components

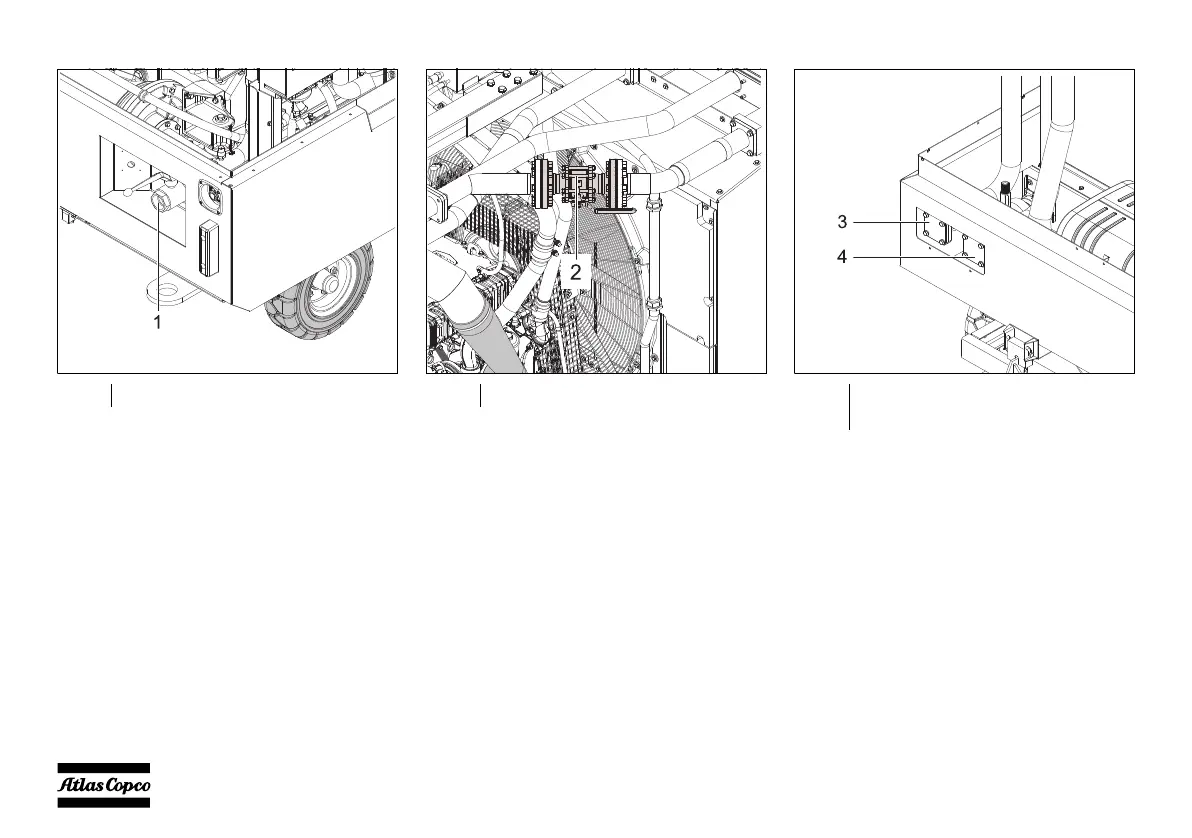

1 Air outlet valve (AOV) 2 Hot air outlet valve 3 Hot air inlet flange

4 Hot air outlet flange
