3.4.5 Sockets USA

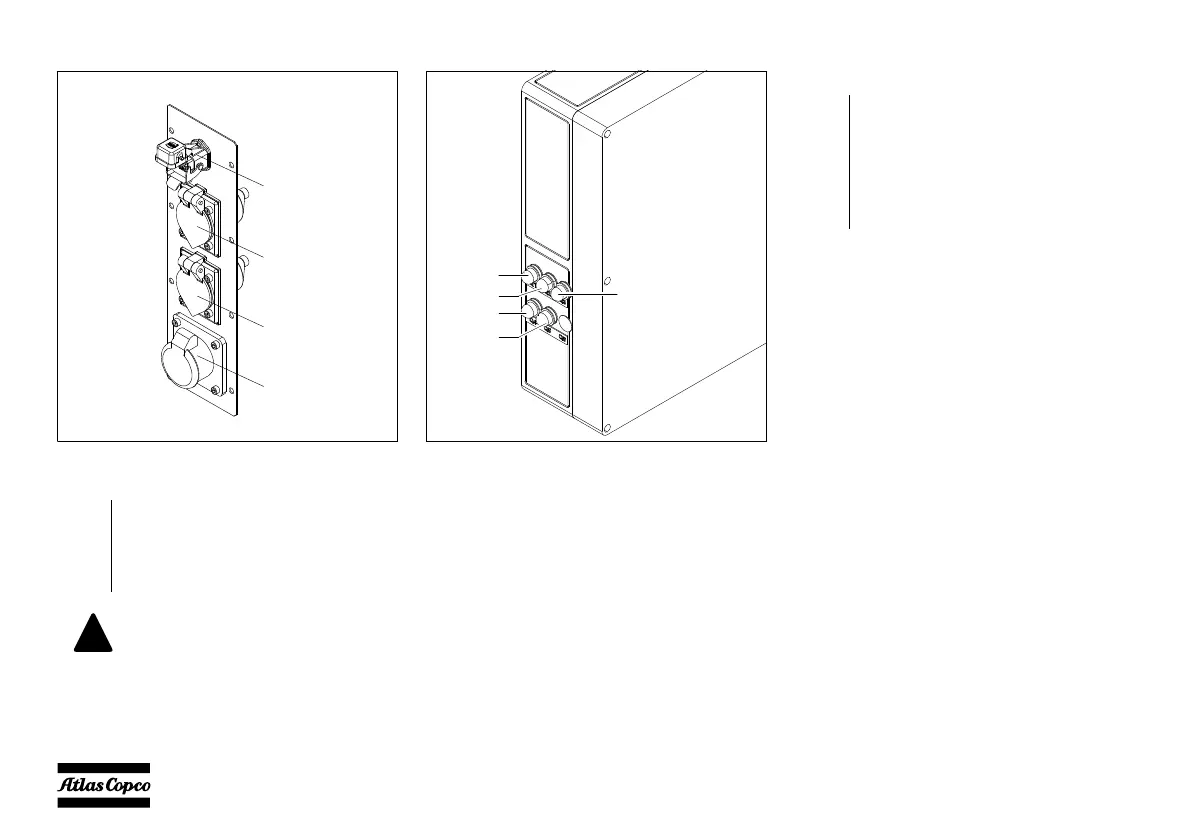

The PTS 800 T3 Cud USA variant is equipped with
the following sockets:
3.4.6 Fuse box
The PTS 800 T3 Cud is equipped with the following
circuit breakers:
X8 Socket battery charger 110 V
X9 Socket heater (optional)
X14 Socket remote emergency stop
X17 Power outlet socket 24V
Optional socket heater X9 can only
be used after plugging in and
supplying socket X8.
X14
X9
X8
X17
!
Q1
Q2
Q4
Q5
Q3
Q1 General circuit breaker (15A)
Q2 Circuit breaker 24V outlet (30A)
Q3 Circuit breaker fire extinguisher (10A)
Q4 Circuit breaker ECM (30A)
Q5 Circuit breaker inlet shutdown valve (4A,
24V)
