2 Main parts
2.1 General description
The QAS 60 Pd is an AC generator, built for continuous running at sites where no electricity is available or as stand-by in cases of interruption of the mains. The generator
operates at 50/60 Hz, 230/240 V in line-to-neutral mode and 400/480 V in line-to-line mode. The QAS 60 Pd generator is driven by a fluid-cooled diesel engine,

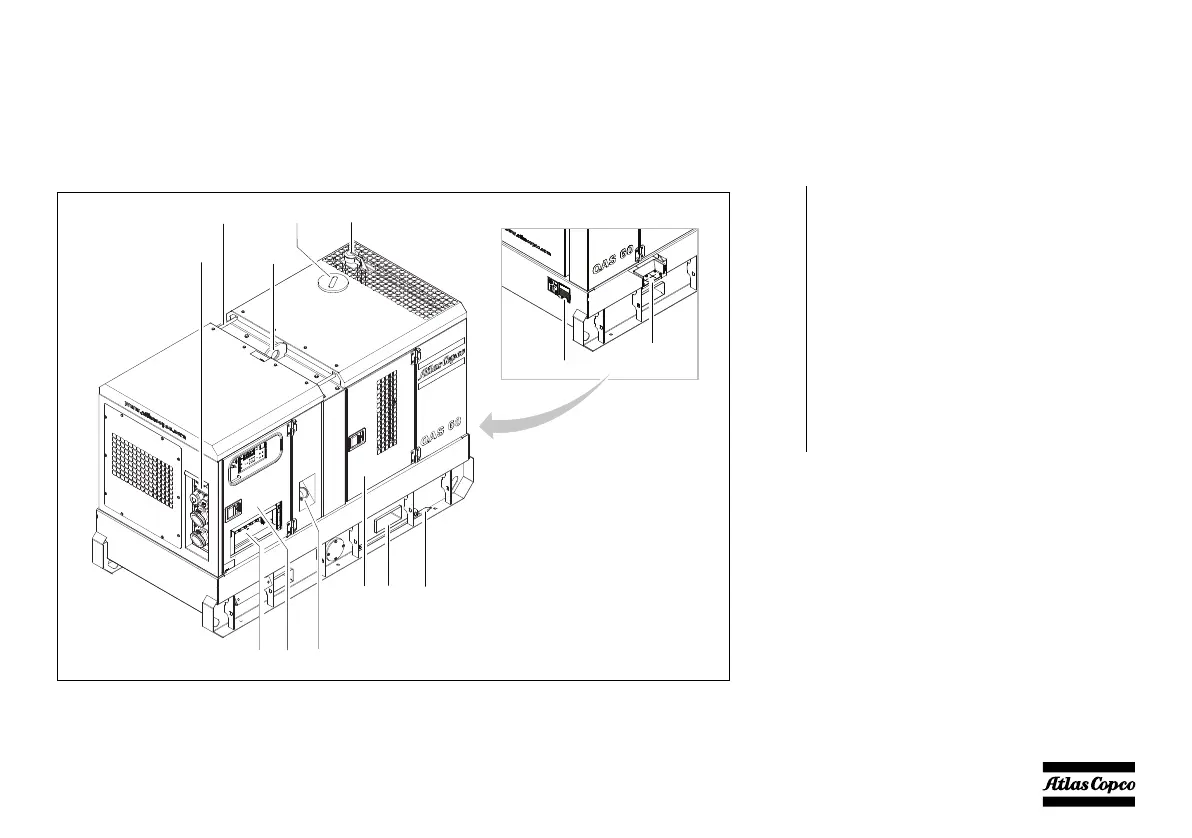

manufactured by PERKINS. An overview of the main parts is given in the diagram below.
1 Lifting beam
2 Guiding rod
3 Side doors
4 Engine exhaust
5 Data plate
6 Door, access to control and indicator panel
7 Output terminal board
8 Forklift slot
9 Earthing rod
DH Drain and access hole (in the frame)
ESB Emergency stop button
FCF Filler cap fuel
FCW Filler cap coolant
5
DH
2
1
FCW
4
6
7
FCF
3
8
9
ESB
