- 17 -
2.2 Markings
Markings provide instructions and information. They
also warn of hazards. For convenience and safety,
keep all markings in legible condition, replacing them
when damaged or missing. Replacement markings are
available from the factory.

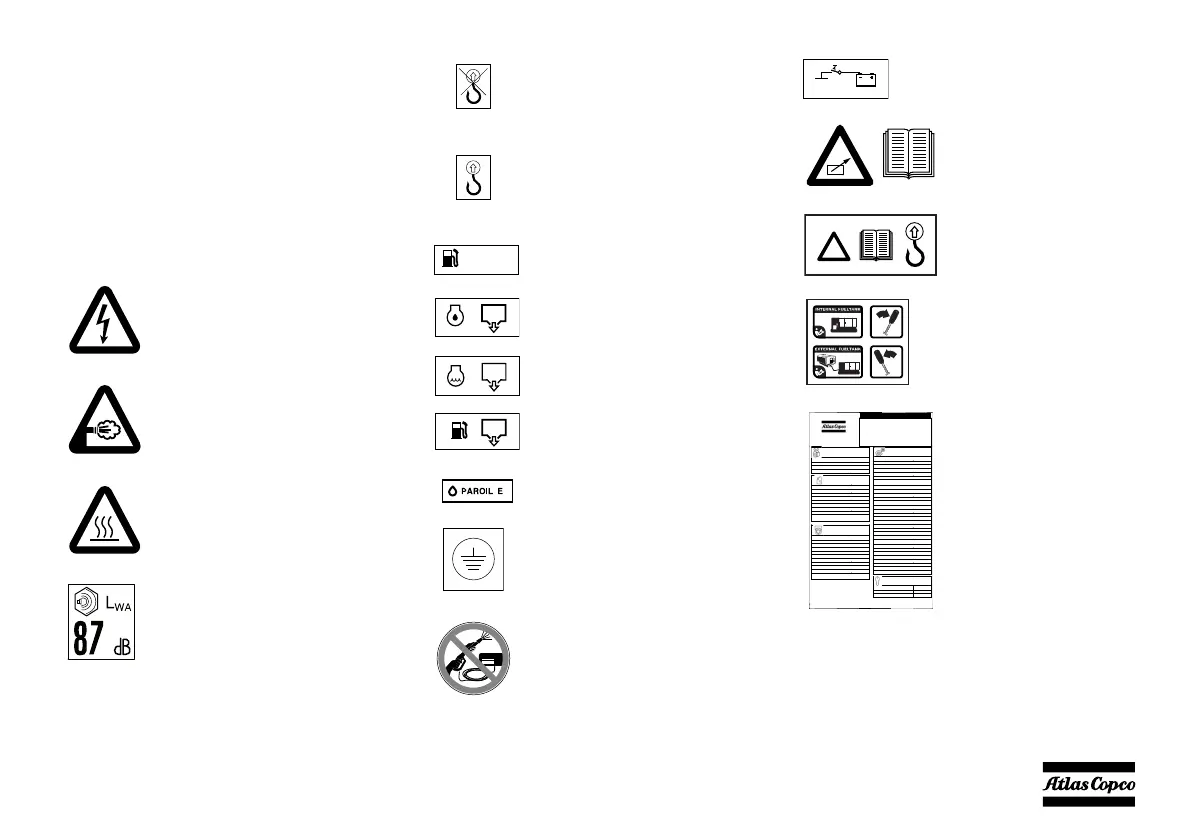

A brief description of all markings provided on the
generator is given hereafter. The precise location of
all markings can be found in the parts manual of this
generator.
Indicates the presence of electric shock
hazards. Enclosures marked with these
symbols should only be opened by
trained or instructed people.
Indicates that the engine exhaust is a
hot and harmful gas, which is toxic in
case of inhalation. Always make sure
that the unit is operated outside or in a
well-ventilated room.
Indicates that these parts can become
very hot during operation (e.g. engine,
cooler, etc.). Always make sure that
these parts are cooled down before
touching them.
Indicates the sound power level in
accordance with Directive 2000/14/
EC (expressed in dB (A)).
Indicates that the guiding rods may not
be used to lift the generator. Always
use the lifting rod in the roof of the
generator to lift it.
Indicates a lifting point of the
generator.
Indicates that the generator may be
refuelled with diesel fuel only.
Indicates the drain for the engine oil.
Indicates the drain for the coolant.
Indicates the drain plug for the engine
fuel.
Use PAROIL E only.
Indicates the different earthing
connections on the generator.
Indicates that the alternator should not
be cleaned with high pressurised
water.
Indicates the battery switch.
Indicates that the unit may
start automatically and that
the instruction book has to
be consulted prior to use.
Read the instruction manual
before using the lifting eye.
Indicates the 3-way valve.
Indicates the different
service packs, liquids and
critical parts. These parts
can be ordered to the
factory.
QAS 60
Engine 1104D-44TG3
Fuel tank capacity 150 l
Oil sump capacity 7 l
Cool. system capacity 16.5 l
Hyd. oil capacity 8 l
Alternator LSA 42.3 L9
Tyre pressure
Service Kits
Description Order Nr
SERVICE KITS 500 H 29124546 05
SERVICE KITS 1000 H 1636 3103 37
SERVICE KITS 2000 H 1636 3103 38
Fluids
Description Order Nr
PAROIL E 5L(1.1GAL) 1615 5953 00
PAROIL E 20L(4.4GAL) 1615 5954 00
PAROIL E 209L(45.98GAL) 1615 5955 00
PAROIL E XTRA5L (1.1GAL) 1630 0135 00
PAROIL E XTRA20L (4.4GAL) 1630 0136 00
PARCOOL EG 5L(1.1GAL) 1604 5308 00
PARCOOL EG 20L(4.4GAL) 1604 5307 01
PARCOOL EG CONCENTRATE
5L (1.1GAL)
1604 8159 00
Alternator Parts
Description Order Nr
AVR R250 29148412 00
AVR R438 29148443 00
DIODES BRIDGE 2914 8492 00
EXCITER STATOR 2914 8489 00
EXCITER ROTOR 2914 8490 00
BEARING 2914 8496 00
PMG KIT (WITHOUT AVR) 2914 8497 00
FAN 2914 8495 00
TERMINAL BLOCK 2914 8491 00
COUPLING DISCS 2914 8494 00
Engine Parts
Description Order Nr
AIR FILTER 16137408 00
SAFETY CARTRIDGE 2914 9309 00
BREATHER FILTER 2914 9889 00
FUEL FILTER 2914 9842 00
FUEL PRE-FILTER ELEMENT 1636 0001 37
FUEL FILTER BOWL (WATER
SEPARATOR)
1636 3000 54
FUEL TANK BREATHER FILTER 29149975 00
V-BELT 2914 9950 00
ROCKER COVER GASKET 1636300 0 89
COOLANT LEVEL SWITCH
COOLANT TEMPERATURE
1636 3007 51
OIL FILL CAP 1636 3000 85
CHARGING ALTERNATOR 16363000 34
STARTER MOTOR 1636 3000 35
WATER PUMP 1636 3000 67
WATER PUMP GASKET 1636 3000 68
TURBO 1636 3007 54
FUEL SOLENOID 2914 9966 00
FUEL LIFT PUMP 1636 3007 52
DIPSTICK 1636 3007 53
MAGNETIC PICK-UP (SPEED
SENSOR)
1636 3000 33
THERMOSTATIC VALVE 16363000 61
FAN 1636 3000 69
RADIATOR 1636 3000 88
RADIATOR CAP 2914 9959 00
RADIATOR TOP HOSE 1636 3000 71
RADIATOR BOTTOM HOSE 1636 3000 72
RADIATOR SUPPORT DAMPER 1636 3000 73
PRE-HEAT PLUGS 1636 0003 39
Keys
Description Order Nr
FUEL TANK CAP KEYS 2914 9500 00
DOOR KEYS 1615 7271 00
1636 0034 40 www.atlascopco.com
