Atlas Copco QAS 60 Pd S3A ESF User Manual

- 37 -

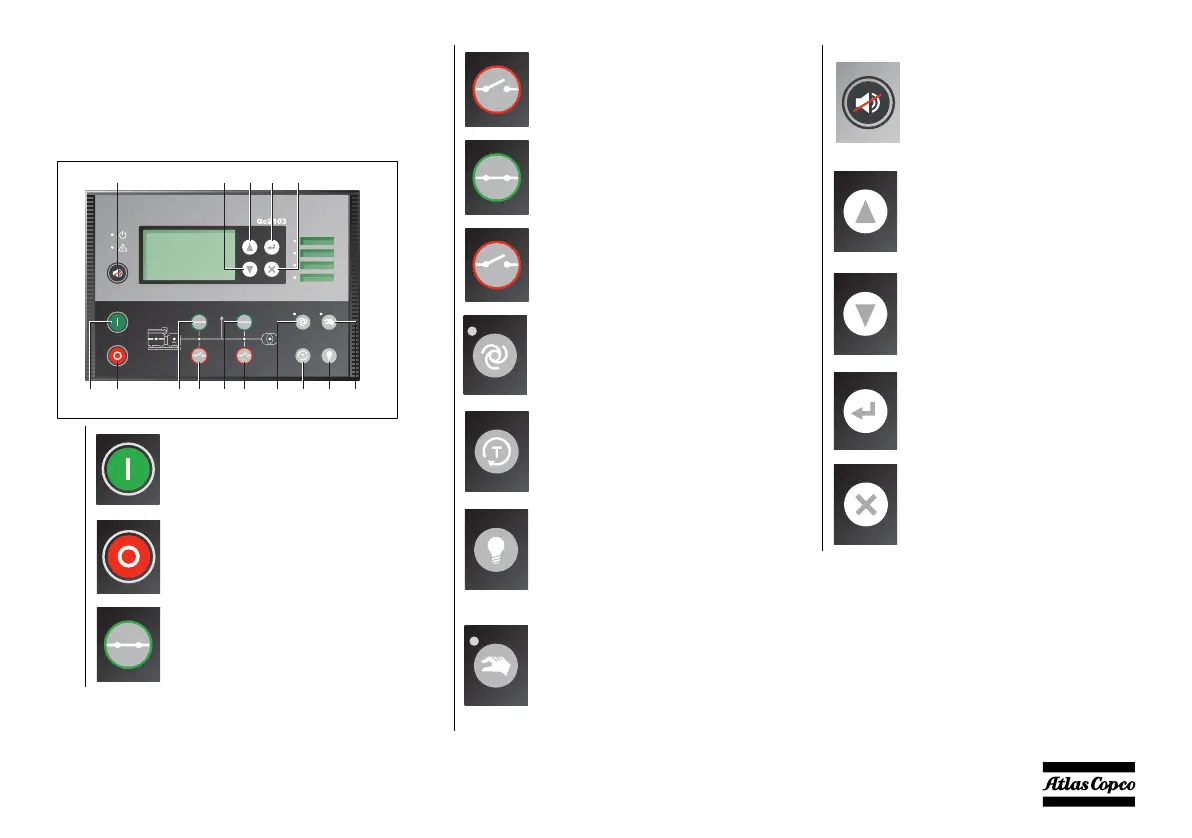

4.3.4 Setting the Qc2103™
4.3.4.1 Push button and LED functions
Following push buttons are used on the
Qc2103™:
1
START: Is used to start the engine
(manual running mode).
2
STOP: Is used to stop the engine
(manual running mode).
3
CLOSE MB: Is used to close the
mains breaker manually (only in
manual running mode).
12
12 1311 14 15
34 56 7 108 9
4
OPEN MB: Is used to open the
mains breaker manually (only in
manual running mode).
5
CLOSE GB: Is used to close the
generator breaker manually (only
in manual running mode).
6
OPEN GB: Is used to open the
generator breaker manually (only
in manual running mode).
7
AUTO: Is used to put the generator
in AUTO running mode.
8
TEST: Is used to put the generator
in TEST running mode.
9
LAMP TEST: Is used to perform a
lamp test.
10 MAN: Is used to put the generator
in MANUAL/BLOCK running
mode.
Press MAN once to activate
MANUAL mode, press MAN
twice to activate BLOCK mode.
11 RESET HORN: Is used to reset
the horn relay.
Press and hold the RESET
HORN button for 2 seconds to
enter the alarm list.
12
UP: Is used to scroll upwards
through the display information
and to increase a parameter value.
13
DOWN: Is used to scroll
downwards through the display
information and to decrease a
parameter value.
14
ENTER: Is used to enter menus
and values and to acknowledge
alarms.
15
BACK: Is used to leave menu's
without change and to remove pop-
up messages.
