Atlas Copco QAS 60 Pd S3A ESF User Manual

- 27 -

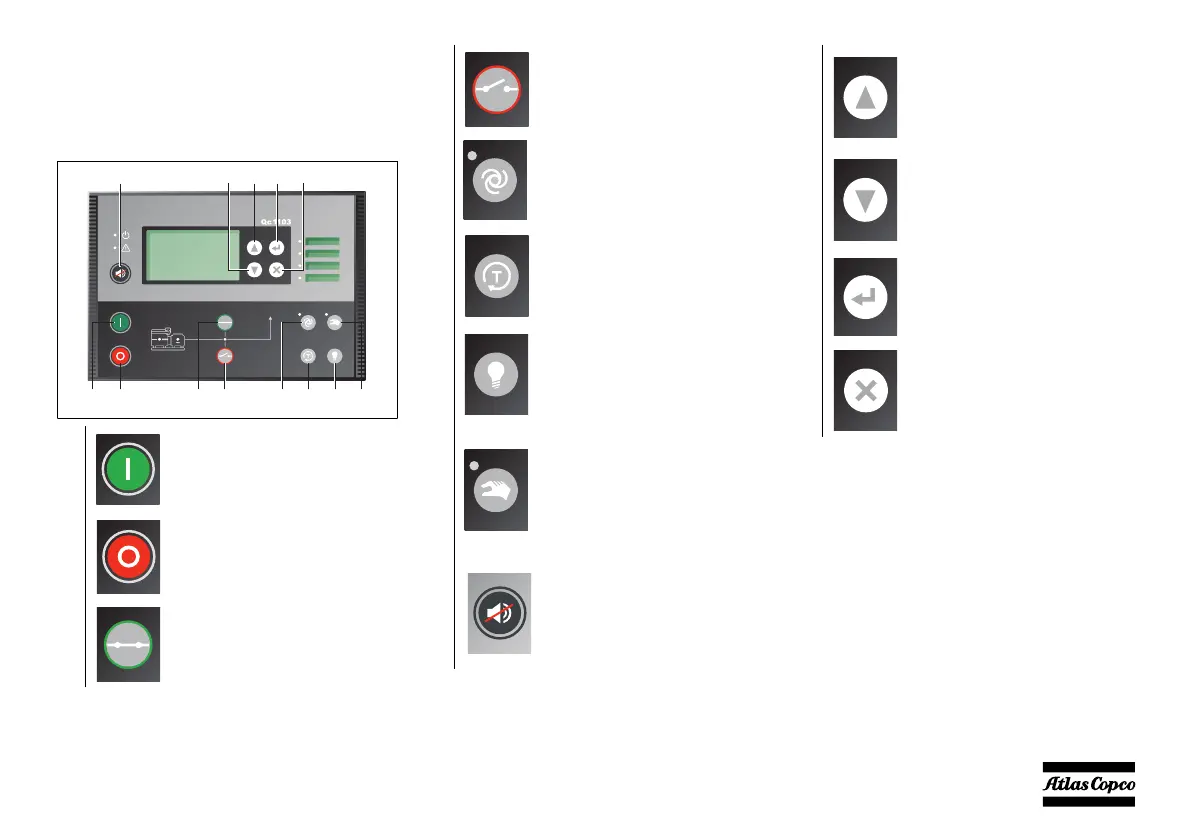

4.2.4 Setting the Qc1103™
4.2.4.1 push button and LED functions
Following push buttons are used on the
Qc1103™:
1
START: Is used to start the engine
(manual running mode).
2
STOP: Is used to stop the engine
(manual running mode).
3
CLOSE GB: Is used to close the
generator breaker manually (only
in manual running mode).
12
10 119 12 13
34 5 86 7
4
OPEN GB: Is used to open the
generator breaker manually (only
in manual running mode).
5
AUTO: Is used to put the generator
in AUTO running mode.
6
TEST: Is used to put the generator
in TEST running mode.
7
LAMP TEST: Is used to perform a
lamp test.
8MAN: Is used to put the generator
in MANUAL/BLOCK running
mode.
Press MAN once to activate
MANUAL mode, press MAN
twice to activate BLOCK mode.
9 RESET HORN: Is used to reset
the horn relay.
Press and hold the RESET
HORN button for 2 seconds to
enter the alarm list.
10
UP: Is used to scroll upwards
through the display information
and to increase a parameter value.
11
DOWN: Is used to scroll
downwards through the display
information and to decrease a
parameter value.
12
ENTER: Is used to enter menus
and values and to acknowledge
alarms.
13
BACK: Is used to leave menu's
without change and to remove pop-
up messages.
