Atlas Copco QAS 60 Pd S3A ESF User Manual

- 20 -

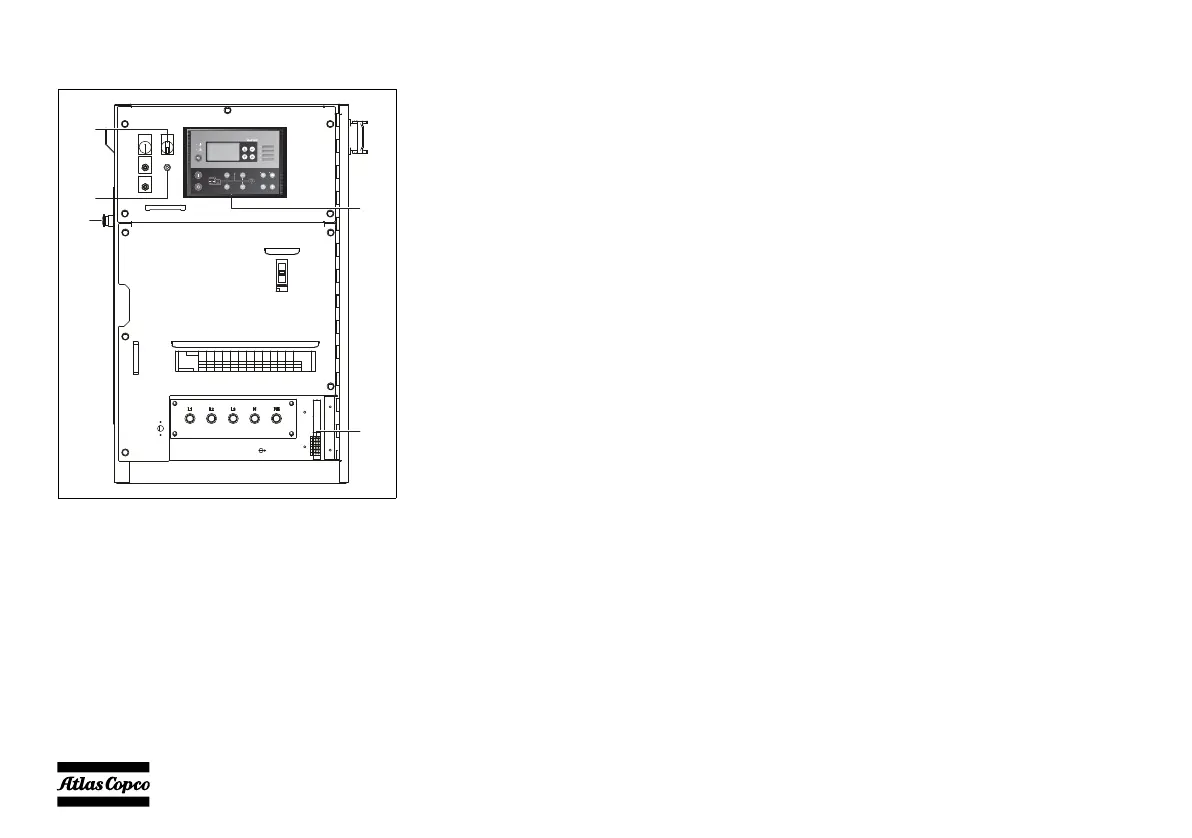

2.4.1.2 Control panel with Qc2103™
controller
A1 .......Qc2103™ display
F10......Fuse
The fuse trips when the current from the
battery to the engine control circuit exceeds
its setting. The fuse can be reset by pushing
the button.
S2 .......Emergency stop button
Push the button to stop the generator in case
of an emergency. When the button is
pressed, it must be unlocked, before the
generator can be restarted. The emergency
stop button can be secured in the locked
position with the key, to avoid unauthorized
use.
S20 .....ON/OFF switch
Position O: No voltage is supplied to the
Qc2103™ module, the generator will not
start.
Position I: Voltage is supplied to the
Qc2103™ module, it is possible to start up
the generator.
X25 .....Terminal strip
X25
A1
S2
S20
F10
